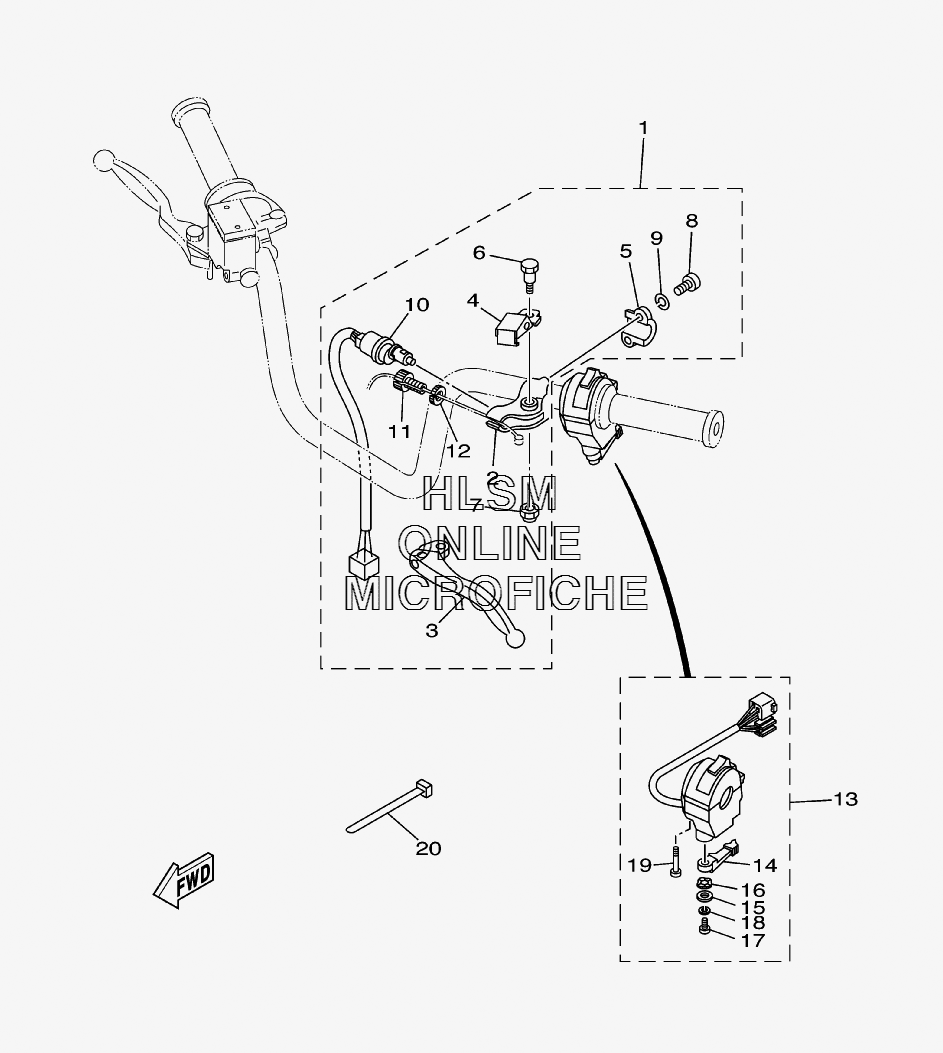

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha BIG BEAR 250 - 2007 года выпуска`
-
№АртикулНазвание
-
15FU-82910-23-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
21YW-82911-02-00 ...HOLDER, LEVER 1...HOLDER, LEVER 1
-
32HT-83912-00-00 ...LEVER 1...LEVER 1
-
41YW-83965-00-00 ...LEVER, LOCK...LEVER, LOCK
-
52XJ-82913-00-00 ...HOLDER, LEVER LOWER 1...HOLDER, LEVER LOWER 1
-
690109-06576-00 ...BOLT...BOLT
-
795607-06100-00 ...NUT, U...NUT, U
-
898507-06020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
992907-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
103FA-83980-03-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
-
1190123-08046-00 ...BOLT...BOLT
-
1290179-08148-00 ...NUT...NUT
-
135LP-83973-01-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
145GH-83941-00-00 ...LEVER, CHOKE...LEVER, CHOKE
-
151UY-83909-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
163L4-83943-00-00 ...WASHER, STARTER...WASHER, STARTER
-
1798517-05012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1892907-05100-00 ...WASHER, SPRING...WASHER, SPRING
-
1998507-05030-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2090464-31827-00 CLAMPCLAMP
