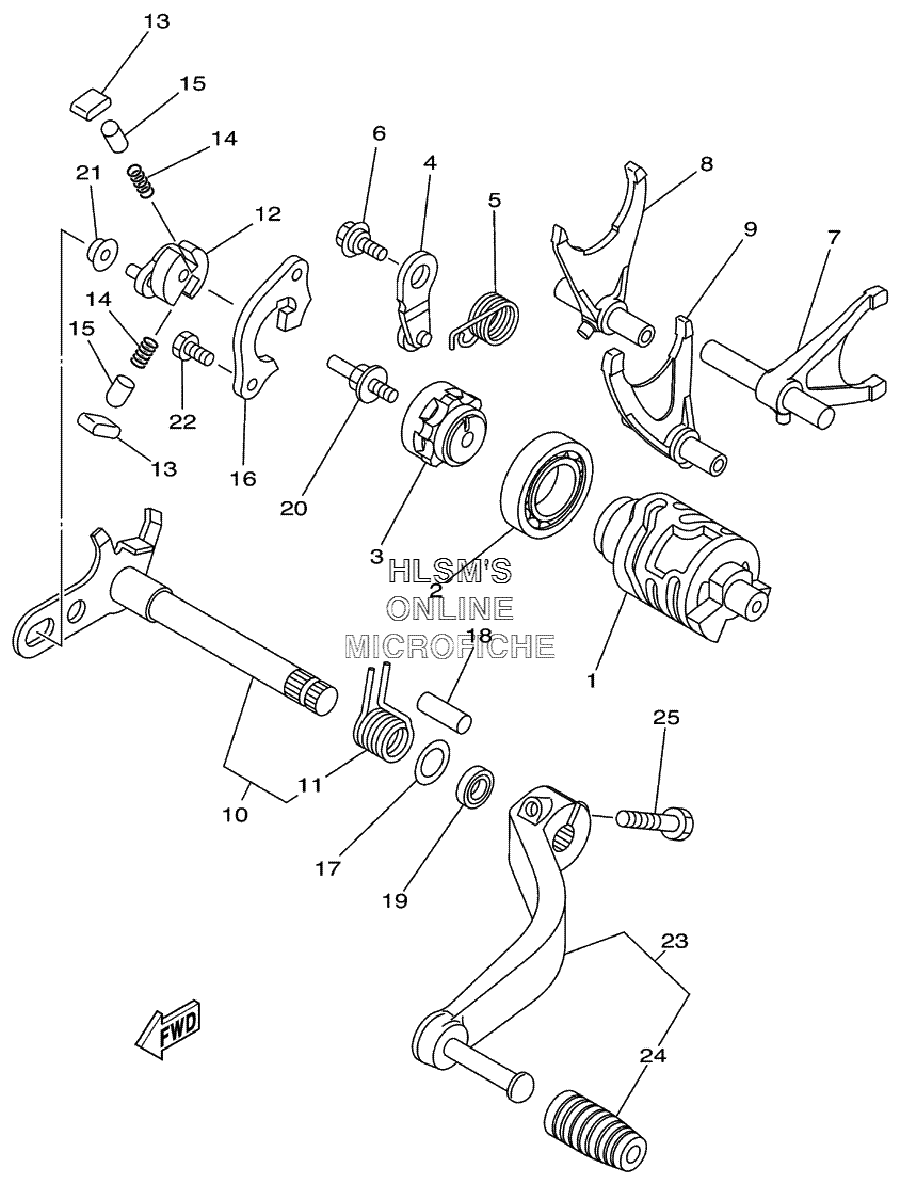

SHIFT CAM W/ FORK для Yamaha YFZ450 SPECIAL EDITION YFZ450SPV - 2006 года выпуска`
-
№АртикулНазвание
-
15TG-18541-00-00 CAM, SHIFTCAM, SHIFT
-
293306-90501-00 BEARINGBEARING
-
34EW-18185-00-00 SEGMENTSEGMENT
-
43XK-18140-00-00 STOPPER LEVER ASSY.STOPPER LEVER ASSY.
-
590508-26561-00 SPRING, TORSIONSPRING, TORSION
-
690109-063F8-00 BOLTBOLT
-
75TG-18501-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
85TG-18502-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
95TG-18503-00-00 FORK, SHIFT 3FORK, SHIFT 3
-
105TG-18101-10-00 SHIFT SHAFT ASSY.SHIFT SHAFT ASSY.
-
1190508-35015-00 ...SPRING, TORSION...SPRING, TORSION
-
125MW-18122-01-00 LEVER, SHIFT 2LEVER, SHIFT 2
-
133XJ-18182-00-00 PAWL, SHIFTERPAWL, SHIFTER
-
1490501-052G5-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
153XJ-18184-00-00 PIN, PAWLPIN, PAWL
-
165BE-18172-00-00 GUIDE, SHIFTGUIDE, SHIFT
-
1790201-12166-00 WASHER, PLATEWASHER, PLATE
-
1893608-33002-00 PIN, DOWELPIN, DOWEL
-
1993102-12224-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
203XJ-18173-10-00 PIN, SHIFTPIN, SHIFT
-
213XJ-18178-00-00 ROLLER, SHIFT LEVERROLLER, SHIFT LEVER
-
2290101-06034-00 BOLTBOLT
-
235TG-18110-10-00 SHIFT PEDAL ASSY.SHIFT PEDAL ASSY.
-
245YT-18113-00-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
2590109-06031-00 BOLTBOLT
