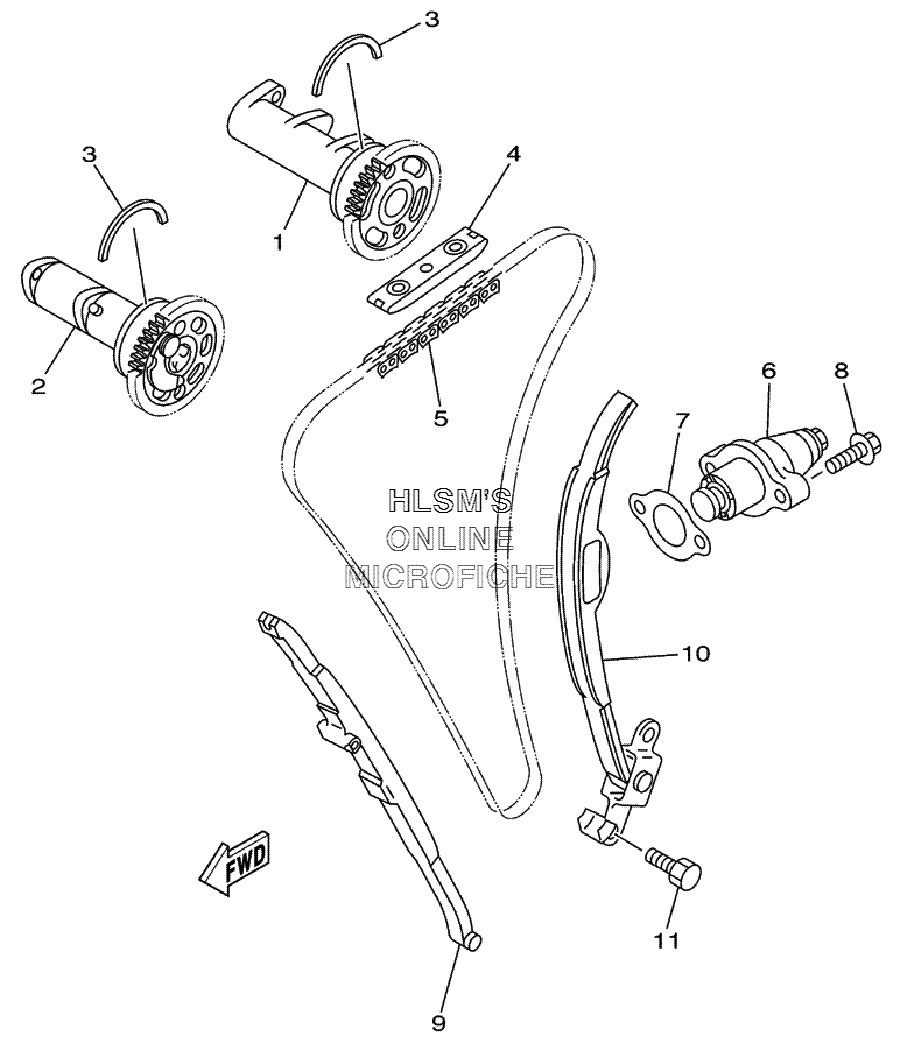

CAMSHAFT W/ CHAIN для Yamaha YFZ450 SPECIAL EDITION YFZ450SPV - 2006 года выпуска`
-
№АртикулНазвание
-
15TA-12170-10-00 CAMSHAFT ASSY. 1CAMSHAFT ASSY. 1
-
25TG-12180-20-00 CAMSHAFT ASSY. 2CAMSHAFT ASSY. 2
-
393440-41178-00 CIRCLIPCIRCLIP
-
45BE-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
594591-57118-00 CHAIN (98XRH2010-118M)CHAIN (98XRH2010-118M)
-
65TA-12210-00-00 TENSIONER ASSY., CAM CHAINTENSIONER ASSY., CAM CHAIN
-
74FM-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
895024-06025-00 BOLT, FLANGEBOLT, FLANGE
-
95TA-12251-01-00 DAMPER, CHAIN 1DAMPER, CHAIN 1
-
105TA-12252-00-00 DAMPER, CHAIN 2DAMPER, CHAIN 2
-
115TG-12299-00-00 BOLT, STOPPERBOLT, STOPPER
