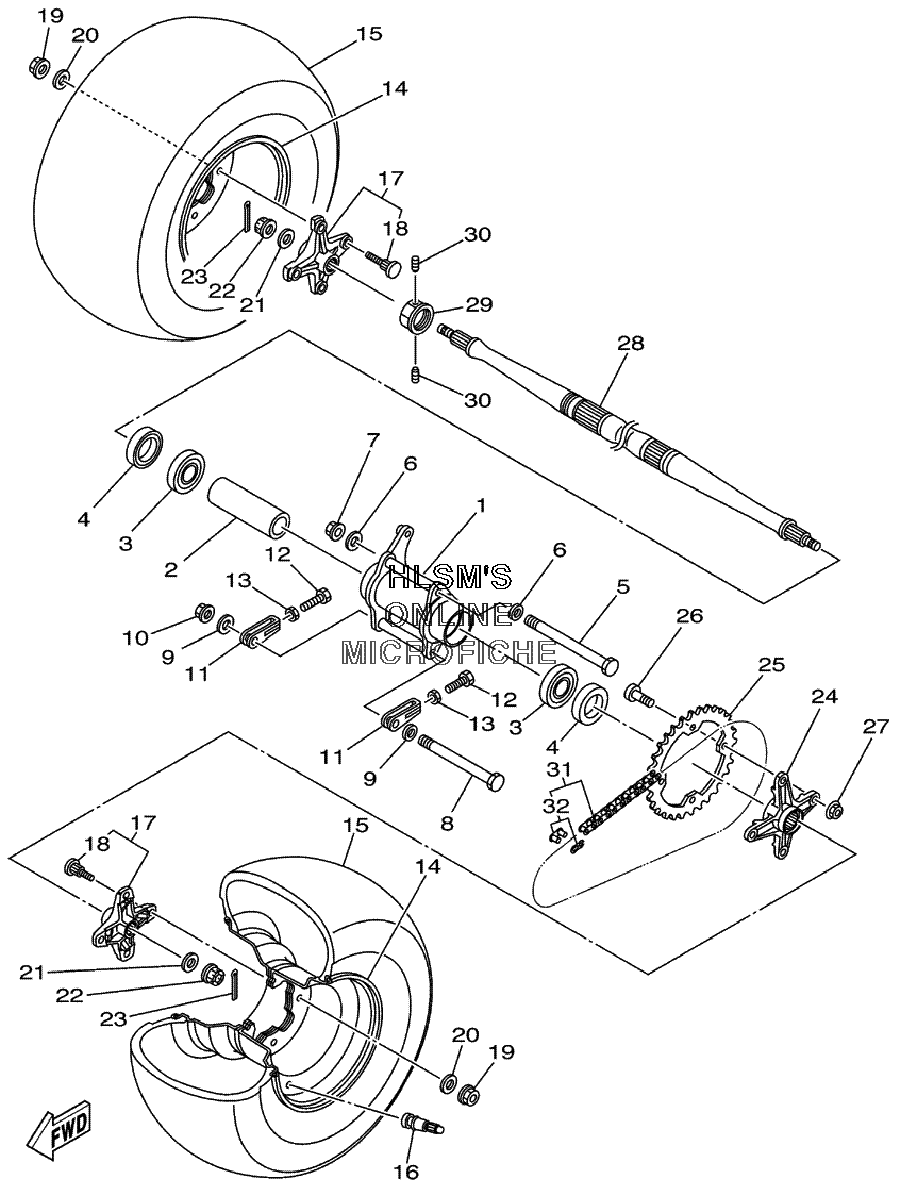

WHEEL - REAR W/ AXLE ASSY для Yamaha RAPTOR 350 SE YFM350RSEV - 2006 года выпуска`
-
№АртикулНазвание
-
15YT-25311-00-00 HUB, REARHUB, REAR
-
25YT-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
393306-00710-00 BEARINGBEARING
-
493106-46001-00 OIL SEALOIL SEAL
-
590101-12695-00 BOLTBOLT
-
690201-126A7-00 WASHER, PLATEWASHER, PLATE
-
790179-12588-00 NUTNUT
-
890101-10689-00 BOLTBOLT
-
990201-106F2-00 WASHER, PLATEWASHER, PLATE
-
1090179-10247-00 NUT, FLANGENUT, FLANGE
-
113GD-25388-00-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
1290101-08777-00 BOLTBOLT
-
1395307-08600-00 NUTNUT
-
145LP-25390-10-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
1594110-09011-00 TIRE (AT20X10-9 KT877A) DUNLOPTIRE (AT20X10-9 KT877A) DUNLOP
-
1693900-00022-00 VALVE, RIMVALVE, RIM
-
175TG-25383-10-00 COLLAR, WHEELCOLLAR, WHEEL
-
1890114-10009-00 ...BOLT, SERRATION...BOLT, SERRATION
-
1995707-10500-00 NUT, FLANGENUT, FLANGE
-
2092907-10200-00 WASHER, PLAINWASHER, PLAIN
-
2190201-14226-00 WASHER, PLATEWASHER, PLATE
-
2290171-14037-00 NUT, CASTLENUT, CASTLE
-
2391401-30030-00 PIN, COTTERPIN, COTTER
-
245YT-25386-00-00 COLLAR, SPROCKET AXLECOLLAR, SPROCKET AXLE
-
255TG-25438-00-00 SPROCKET, DRIVEN (38T)SPROCKET, DRIVEN (38T)
-
2690109-10010-00 BOLTBOLT
-
2795607-10200-00 NUT, U FLANGENUT, U FLANGE
-
285YT-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
2990170-33010-00 NUTNUT
-
3090113-06055-00 BOLT, SETBOLT, SET
-
3194581-87098-00 CHAIN (DID520V 98L)CHAIN (DID520V 98L)
-
3294681-87011-00 ...JOINT, CHAIN (DID520V FJ)...JOINT, CHAIN (DID520V FJ)
