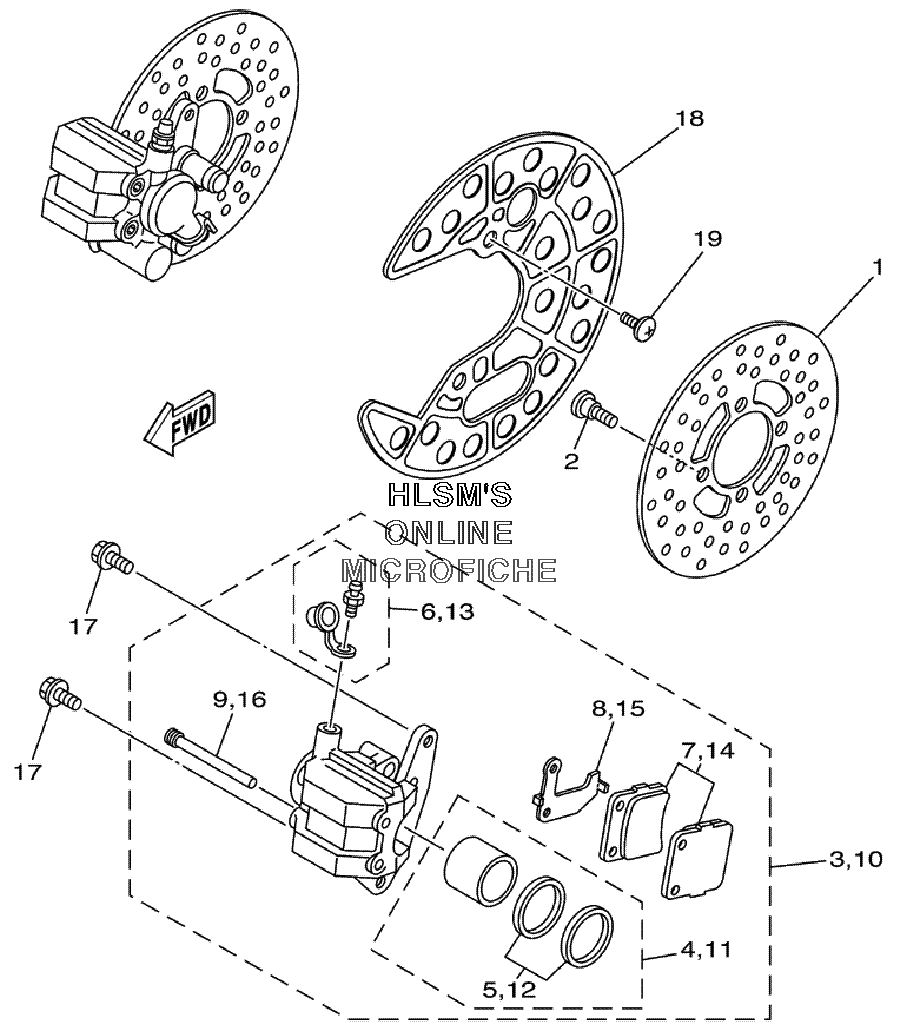

BRAKE - FRONT CALIPER для Yamaha RAPTOR 350 SE YFM350RSEV - 2006 года выпуска`
-
№АртикулНазвание
-
13GD-2582T-10-00 DISC, BRAKE (LEFT)DISC, BRAKE (LEFT)
-
290149-08268-00 SCREWSCREW
-
35LP-2580T-00-00 CALIPER ASSY. (LEFT)CALIPER ASSY. (LEFT)
-
43GD-W0057-00-00 ...PISTON ASSY., CALIPER...PISTON ASSY., CALIPER
-
53GD-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
61UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
75LP-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
83GD-25827-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
93GD-25933-00-00 ...PIN, PAD...PIN, PAD
-
105LP-2580U-00-00 CALIPER ASSY. (RIGHT)CALIPER ASSY. (RIGHT)
-
113GD-W0057-00-00 ...PISTON ASSY., CALIPER...PISTON ASSY., CALIPER
-
123GD-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
131UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
145LP-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
153GD-25828-00-00 ...SHI...SHI
