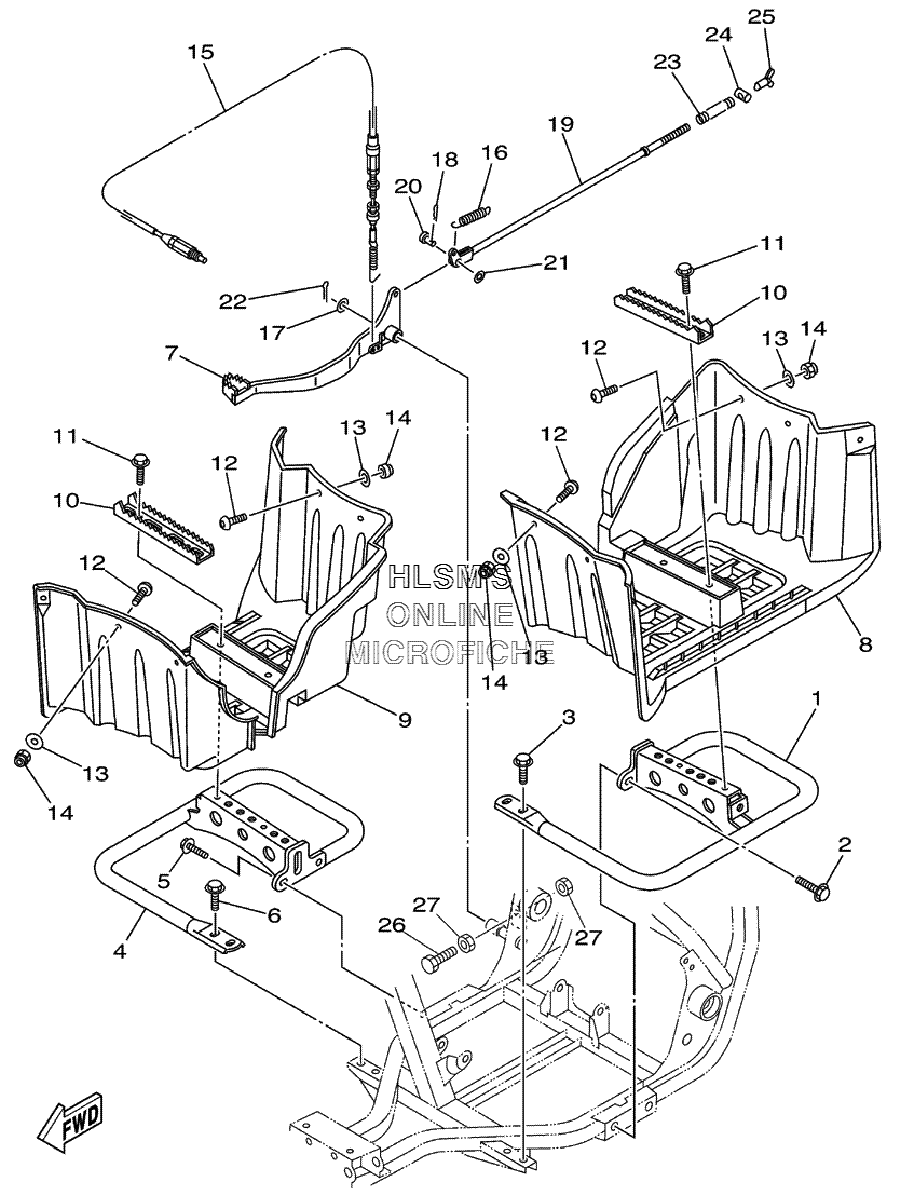

FOOTREST W/ BRAKE PEDAL для Yamaha BRUIN 250 2WD YFM25BV - 2006 года выпуска`
-
№АртикулНазвание
-
11P0-F7452-00-00 BRACKET, FOOTREST 1BRACKET, FOOTREST 1
-
29581P-10020-00 BOLT, FLANGEBOLT, FLANGE
-
39581P-08016-00 BOLT, FLANGEBOLT, FLANGE
-
41P0-F7462-00-00 BRACKET, FOOTREST 2BRACKET, FOOTREST 2
-
59581P-10020-00 BOLT, FLANGEBOLT, FLANGE
-
69581P-08016-00 BOLT, FLANGEBOLT, FLANGE
-
71P0-F7211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
81P0-F7453-00-00 COVER 1COVER 1
-
91P0-F7463-00-00 COVER 2COVER 2
-
101P0-F741A-00-00 ARM 1ARM 1
-
119581P-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1290149-05299-00 SCREWSCREW
-
1390201-05029-00 WASHER, PLATEWASHER, PLATE
-
1495707-05300-00 NUT, FLANGENUT, FLANGE
-
151P0-2637F-00-00 CABLE, CONTROL 2CABLE, CONTROL 2
-
1690506-18224-00 SPRING, TENSIONSPRING, TENSION
-
1790201-15797-00 WASHER, PLATEWASHER, PLATE
-
1891401-40030-00 PIN, COTTERPIN, COTTER
-
194XE-27231-00-00 ROD, BRAKEROD, BRAKE
-
2090240-06076-00 PIN, CLEVISPIN, CLEVIS
-
2192907-06200-00 WASHERWASHER
-
2291401-20012-00 PIN, COTTERPIN, COTTER
-
2390501-10245-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2490249-12008-00 PIN, SPEC'L SHAPEPIN, SPEC'L SHAPE
-
2520E-26343-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
2697017-06020-00 BOLTBOLT
-
2795317-06700-00 NUTNUT
