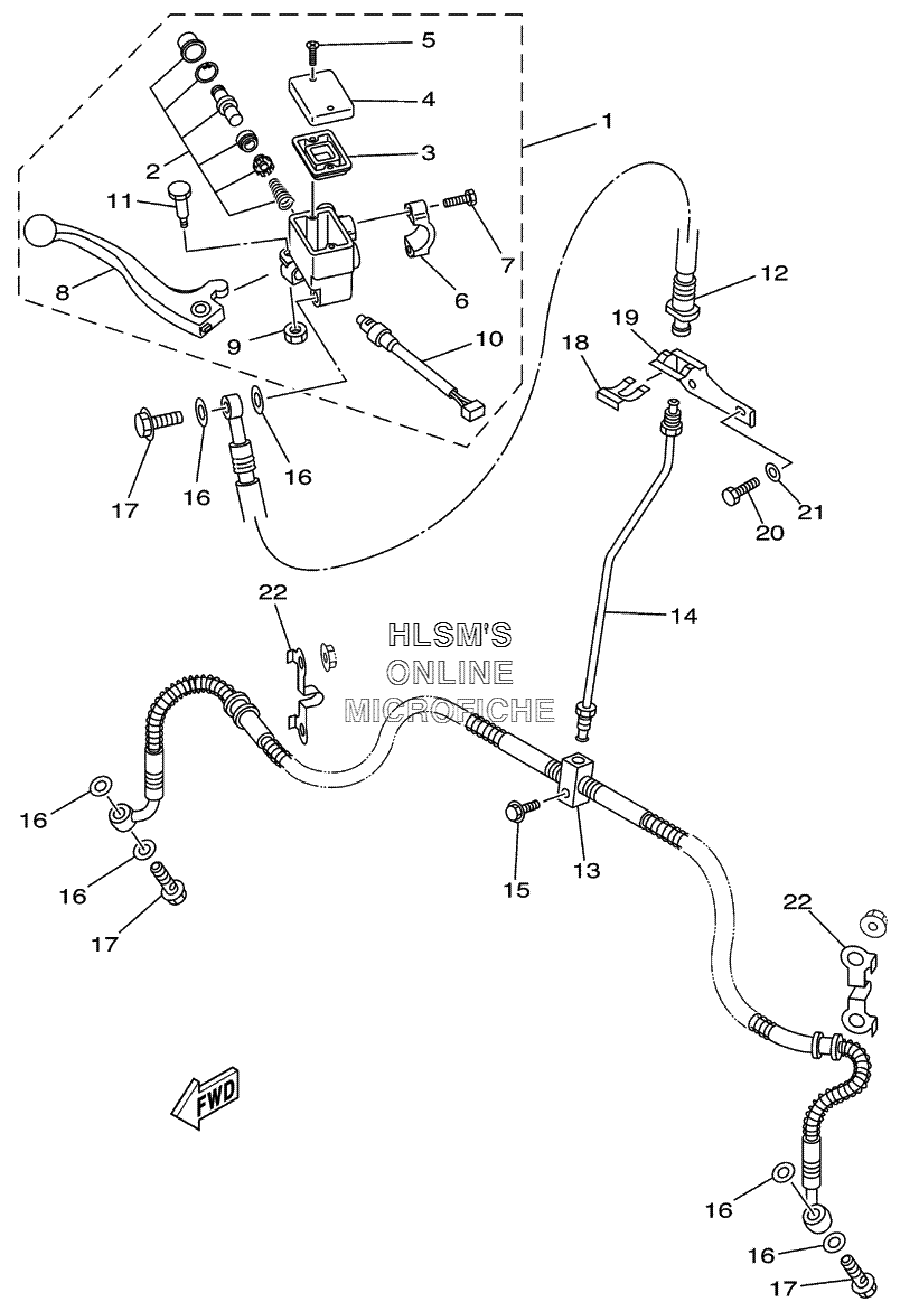

BRAKE - FRONT MASTER CYLINDER для Yamaha BRUIN 250 2WD YFM25BV - 2006 года выпуска`
-
№АртикулНазвание
-
15KM-2583T-01-00 MASTER CYLINDER ASSY.MASTER CYLINDER ASSY.
-
28CR-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
34L0-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
45JX-25852-01-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
598706-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
65GH-25867-00-00 ...BRACKET, MASTER CYLINDER...BRACKET, MASTER CYLINDER
-
75EB-26332-00-00 ...BOLT...BOLT
-
85KM-83922-00-00 ...LEVER 2...LEVER 2
-
995606-06100-00 ...NUT, U...NUT, U
-
105LP-83980-00-00 ...FRONT STOP SWITCH ASSY....FRONT STOP SWITCH ASSY.
-
111FK-2589F-00-00 ...BOLT, LEVER...BOLT, LEVER
-
124XE-F5872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
134XE-F5873-00-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
144XE-F5871-00-00 PIPE, BRAKEPIPE, BRAKE
-
1595807-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1690201-10118-00 WASHER, PLATEWASHER, PLATE
-
1790401-10159-00 BOLT, UNIONBOLT, UNION
-
182GU-25866-00-00 CIRCLIPCIRCLIP
-
194XE-F612K-10-00 BRACKET 2BRACKET 2
-
2097007-06016-00 BOLTBOLT
-
2192907-06600-00 WASHER, PLATEWASHER, PLATE
-
224XE-F587A-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
