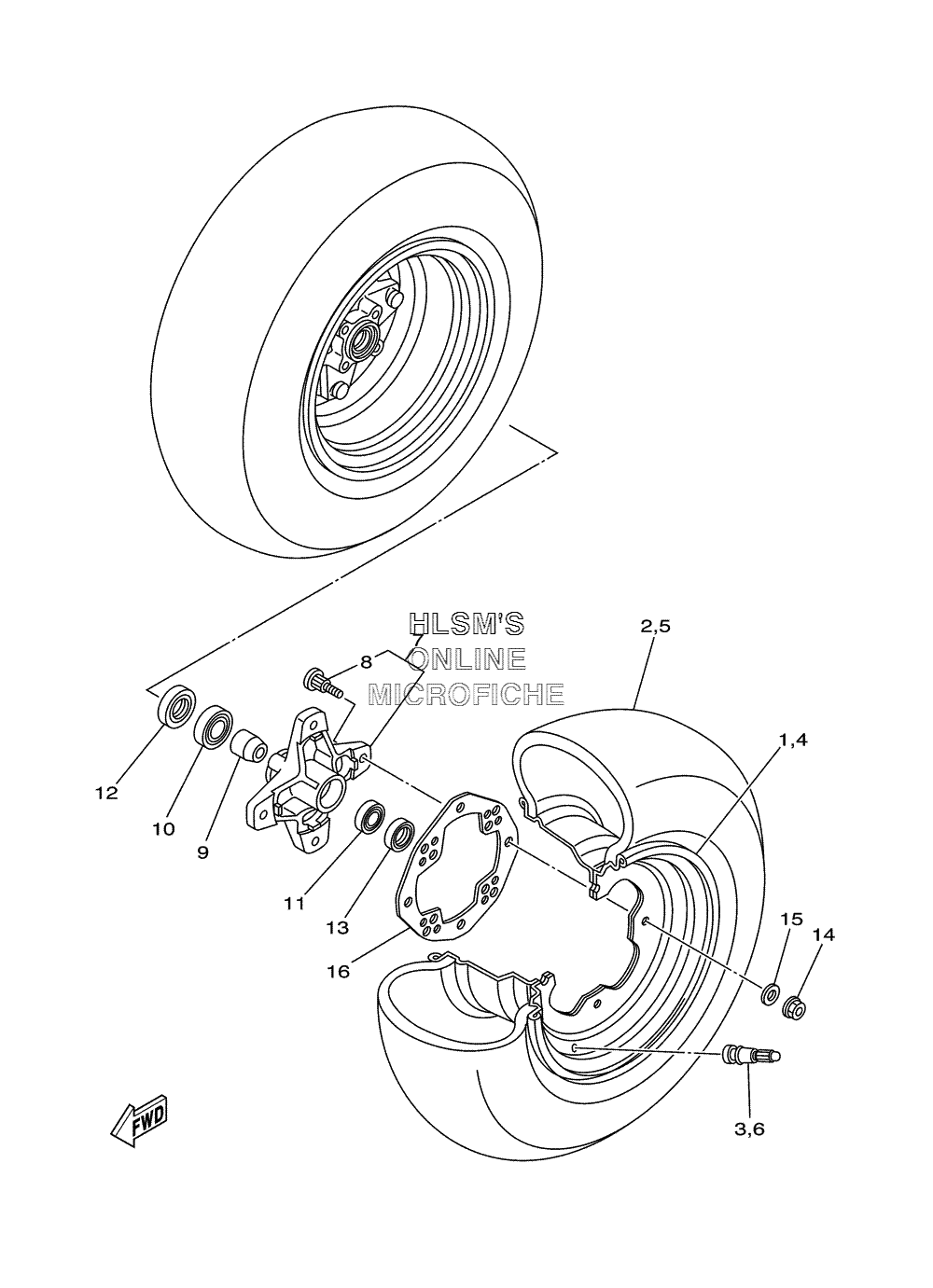

WHEEL - FRONT W/ AXLE ASSY для Yamaha YFZ450 SPECIAL EDITION YFZ450SET - 2005 года выпуска`
-
№АртикулНазвание
-
15LP-25180-10-00 WHEEL COMP.WHEEL COMP.
-
294107-10011-00 TIRE (AT21X7R10 KT331A TL)TIRE (AT21X7R10 KT331A TL)
-
393900-00030-00 VALVE, RIMVALVE, RIM
-
45LP-25180-10-00 WHEEL COMP.WHEEL COMP.
-
594107-10011-00 TIRE (AT21X7R10 KT331A TL)TIRE (AT21X7R10 KT331A TL)
-
693900-00030-00 VALVE, RIMVALVE, RIM
-
75LP-25111-20-00 HUB, FRONTHUB, FRONT
-
890114-10007-00 ...BOLT, SERRATION...BOLT, SERRATION
-
95LP-25117-00-00 SPACER, BEARINGSPACER, BEARING
-
1093306-00406-00 BEARING, NTN (OPT)BEARING, NTN (OPT)
-
1093306-00438-00 BEARING, NIHONSEIKO (OPT)BEARING, NIHONSEIKO (OPT)
-
1193306-20227-00 BEARINGBEARING
-
1293105-26026-00 OIL SEAL, SDD-TYPEOIL SEAL, SDD-TYPE
-
1393102-22216-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
1495707-10500-00 NUT, FLANGENUT, FLANGE
-
1592907-10200-00 WASHER, PLAINWASHER, PLAIN
-
163GD-25127-10-00 COVER, PLATECOVER, PLATE
