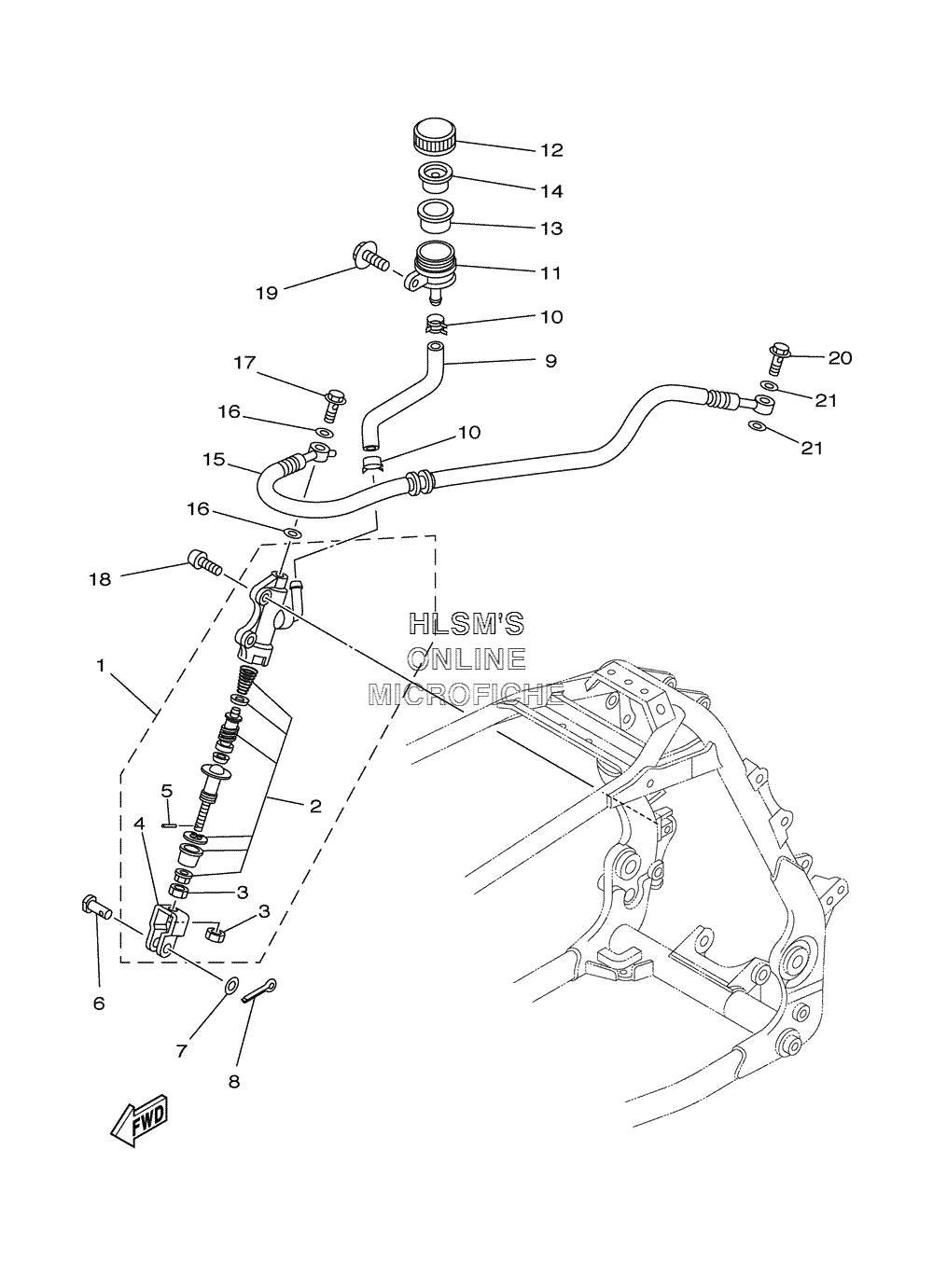

BRAKE - REAR MASTER CYLINDER для Yamaha YFZ450 SPECIAL EDITION YFZ450SET - 2005 года выпуска`
-
№АртикулНазвание
-
15TG-2580E-00-00 REAR MASTER CYLINDER ASSY.REAR MASTER CYLINDER ASSY.
-
25TG-W0042-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
34SS-27218-00-00 ...NUT...NUT
-
42YK-27222-00-00 ...JOINT...JOINT
-
53KW-27234-00-00 ...PIN, BRAKE ROD...PIN, BRAKE ROD
-
690240-08124-00 PIN, CLEVISPIN, CLEVIS
-
790201-08083-00 WASHER, PLATEWASHER, PLATE
-
891401-16012-00 PIN, COTTERPIN, COTTER
-
95TG-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
1090467-11044-00 CLIP, SCISSORCLIP, SCISSOR
-
112VN-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
124PX-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
132VN-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
142VN-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
155TG-25874-00-00 HOSE, BRAKEHOSE, BRAKE
-
1690201-10118-00 WASHER, PLATEWASHER, PLATE
-
1790401-10159-00 BOLT, UNIONBOLT, UNION
-
1892017-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1990105-06690-00 BOLT, FLANGEBOLT, FLANGE
-
2090401-10159-00 BOLT, UNIONBOLT, UNION
-
2190201-10118-00 WASHER, PLATEWASHER, PLATE
