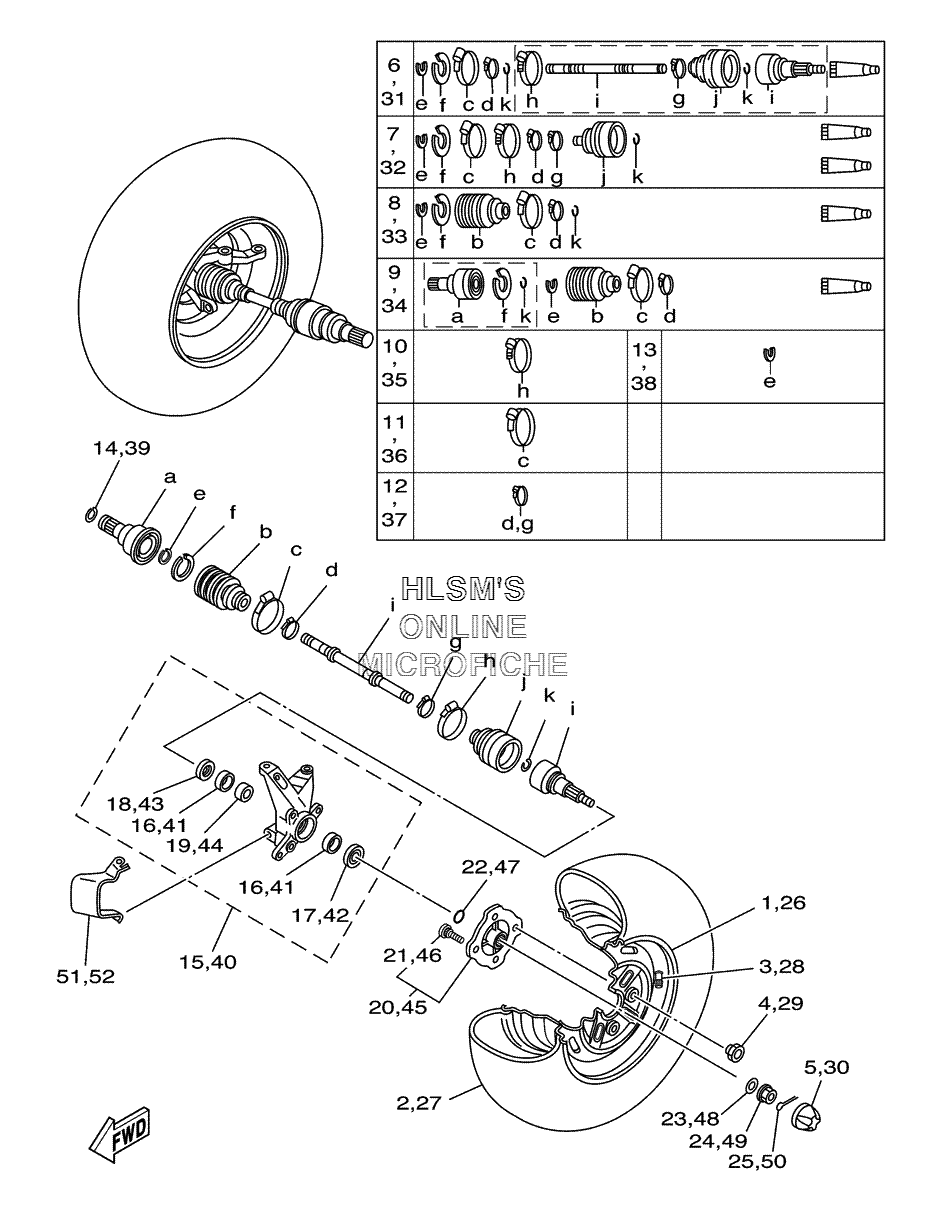

WHEEL - FRONT W/ AXLE ASSY для Yamaha WOLVERINE 4x4 YFM350FXT - 2005 года выпуска`
-
№АртикулНазвание
-
14KB-25180-02-35 WHEEL COMP. (SL)WHEEL COMP. (SL)
-
294108-1205R-00 TIRE (AT23X8-12 KT403)TIRE (AT23X8-12 KT403)
-
393900-00022-00 VALVE, RIMVALVE, RIM
-
490179-10540-00 NUTNUT
-
55GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
64KB-2510F-10-00 BALL JOINT SETBALL JOINT SET
-
74KB-2510G-10-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
84KB-2510H-00-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
94KB-2510J-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
103HN-2511G-01-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
114KB-2511H-00-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
123HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
132HR-2512J-00-00 SNAP RINGSNAP RING
-
144KB-2512H-00-00 CIRCLIPCIRCLIP
-
154KB-23501-02-00 STEERING KNUCKLE ASSY. (LEFT)STEERING KNUCKLE ASSY. (LEFT)
-
1693306-00615-00 ...BEARING...BEARING
-
1793106-38046-00 ...OIL SEAL...OIL SEAL
-
1893106-38047-00 ...OIL SEAL...OIL SEAL
-
1990560-30325-00 ...SPACER...SPACER
-
205GH-25111-00-00 HUB, FRONTHUB, FRONT
-
2190114-10010-00 ...BOLT, SERRATION...BOLT, SERRATION
-
2293210-27666-00 O-RINGO-RING
-
2390201-162L6-00 WASHER, PLATEWASHER, PLATE
-
2490171-16001-00 NUT, CASTLENUT, CASTLE
-
2591401-30030-00 PIN, COTTERPIN, COTTER
-
264KB-25180-02-35 WHEEL COMP. (SL)WHEEL COMP. (SL)
-
2794108-1205R-00 TIRE (AT23X8-12 KT403)TIRE (AT23X8-12 KT403)
-
2893900-00022-00 VALVE, RIMVALVE, RIM
-
2990179-10540-00 NUTNUT
-
305GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
314KB-2510F-10-00 BALL JOINT SETBALL JOINT SET
-
324KB-2510G-10-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
334KB-2510H-00-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
344KB-2510J-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
353HN-2511G-01-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
364KB-2511H-00-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
373HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
382HR-2512J-00-00 SNAP RINGSNAP RING
-
394KB-2512H-00-00 CIRCLIPCIRCLIP
-
404KB-23502-02-00 STEERING KNUCKLE ASSY. (RIGHT)STEERING KNUCKLE ASSY. (RIGHT)
-
4193306-00615-00 ...BEARING...BEARING
-
4293106-38046-00 ...OIL SEAL...OIL SEAL
-
4393106-38047-00 ...OIL SEAL...OIL SEAL
-
4490560-30325-00 ...SPACER...SPACER
-
455GH-25111-00-00 HUB, FRONTHUB, FRONT
-
4690114-10010-00 ...BOLT, SERRATION...BOLT, SERRATION
-
4793210-27666-00 O-RINGO-RING
-
4890201-162L6-00 WASHER, PLATEWASHER, PLATE
-
4990171-16001-00 NUT, CASTLENUT, CASTLE
-
5091401-30030-00 PIN, COTTERPIN, COTTER
-
514KB-2331M-00-00 COVER, RING (RIGHT)COVER, RING (RIGHT)
-
524KB-2331N-00-00 COVER, RING (LEFT)COVER, RING (LEFT)
