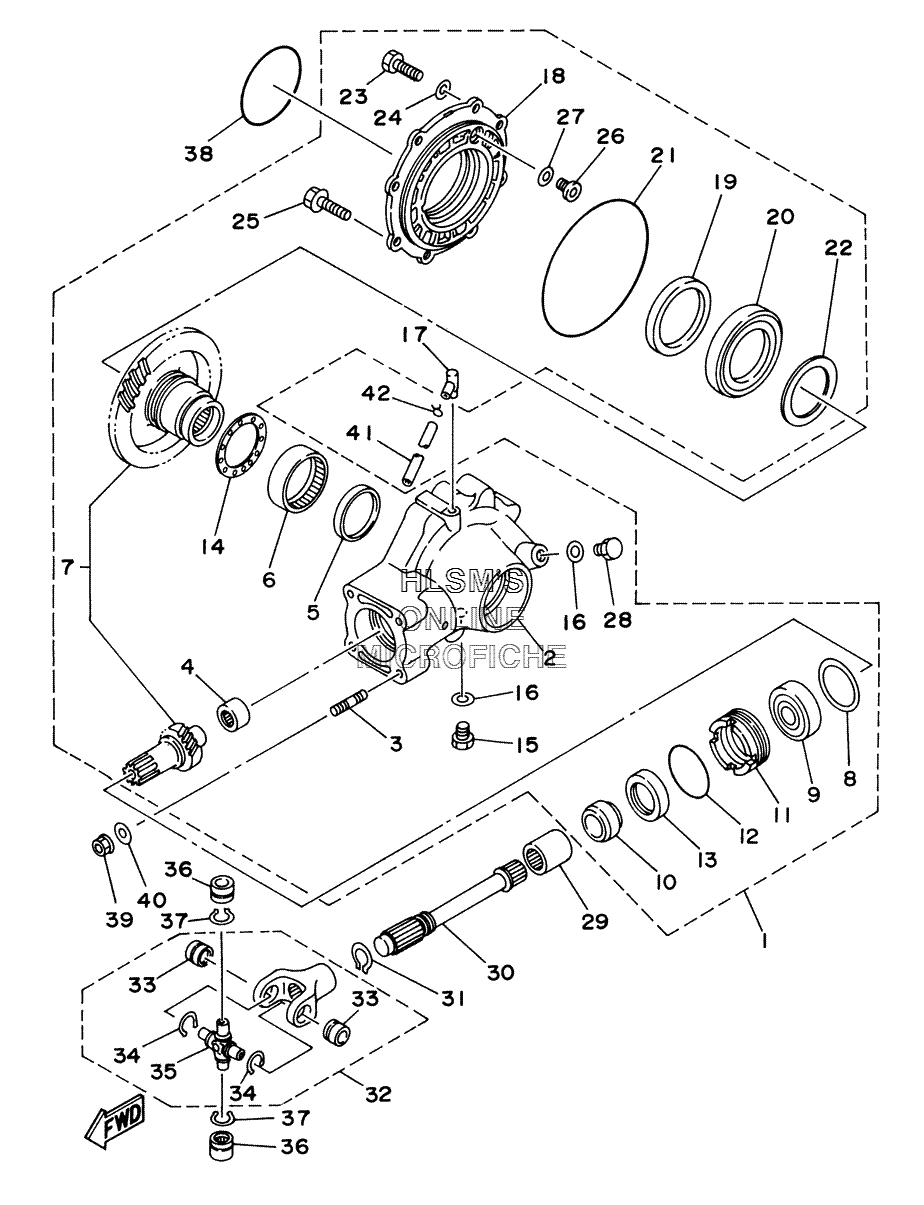

DIFFERENTIAL - REAR W/ DRIVE SHAFT для Yamaha WOLVERINE 4x4 YFM350FXT - 2005 года выпуска`
-
№АртикулНазвание
-
14GB-46101-03-00 REAR AXLE GEAR CASE ASSY.REAR AXLE GEAR CASE ASSY.
-
23HN-46151-00-00 ...HOUSING, DRIVE SHAFT...HOUSING, DRIVE SHAFT
-
390116-10593-00 ...BOLT, STUD...BOLT, STUD
-
42H7-46102-00-00 ...BEARING ASSY....BEARING ASSY.
-
593101-52116-00 ...OIL SEAL, S-TYPE...OIL SEAL, S-TYPE
-
693317-85569-00 ...BEARING, CYL.#17...BEARING, CYL.#17
-
74GB-Y4612-00-00 ...RING GEAR SET...RING GEAR SET
-
81J7-17537-Y0-30 ...SHIM, THRUST (0.30T)...SHIM, THRUST (0.30T)
-
81J7-17537-Y0-50 ...SHIM, THRUST (0.50T)...SHIM, THRUST (0.50T)
-
81J7-17537-Y0-40 ...SHIM, THRUST (0.40T)...SHIM, THRUST (0.40T)
-
993306-30568-00 ...BEARING...BEARING
-
1090387-255H9-00 ...COLLAR...COLLAR
-
1129U-46125-00-00 ...RETAINER, BEARING...RETAINER, BEARING
-
1293210-59531-00 ...O-RING...O-RING
-
1393101-38098-00 ...OIL SEAL, S-TYPE...OIL SEAL, S-TYPE
-
1424W-46118-00-12 ...WASHER, THRUST (1.2T)...WASHER, THRUST (1.2T)
-
1424W-46118-00-14 ...WASHER, THRUST (1.4T)...WASHER, THRUST (1.4T)
-
1424W-46118-00-16 ...WASHER, THRUST (1.6T)...WASHER, THRUST (1.6T)
-
1424W-46118-00-18 ...WASHER, THRUST (1.8T)...WASHER, THRUST (1.8T)
-
1424W-46118-00-20 ...WASHER, THRUST (2.0T)...WASHER, THRUST (2.0T)
-
1590340-14046-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
16214-11198-01-00 ...GASKET...GASKET
-
172N4-15371-00-00 ...BREATHER...BREATHER
-
183HN-46152-01-00 ...HOUSING, BEARING...HOUSING, BEARING
-
1993102-65386-00 ...OIL SEAL...OIL SEAL
-
2093316-01301-00 ...BEARING, CYL.#16...BEARING, CYL.#16
-
2193211-51749-00 ...O-RING...O-RING
-
2224W-46117-00-25 ...SHIM, RING GEAR (0.25T)...SHIM, RING GEAR (0.25T)
-
2224W-46117-00-30 ...SHIM, RING GEAR (0.30T)...SHIM, RING GEAR (0.30T)
-
2224W-46117-00-40 ...SHIM, RING GEAR (0.40T)...SHIM, RING GEAR (0.40T)
-
2224W-46117-00-50 ...SHIM, RING GEAR (0.50T)...SHIM, RING GEAR (0.50T)
-
2397027-08025-00 ...BOLT...BOLT
-
2492907-08600-00 ...WASHER, PLATE...WASHER, PLATE
-
2595817-10045-00 ...BOLT, FLANGE...BOLT, FLANGE
-
261FK-46156-00-00 ...STOPPER, RING GEAR...STOPPER, RING GEAR
-
271FK-46157-00-15 ...SHIM, STOPPER (T=0.15)...SHIM, STOPPER (T=0.15)
-
271FK-46157-00-20 ...SHIM, STOPPER (T=0.20)...SHIM, STOPPER (T=0.20)
-
2890340-14029-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
292HR-46123-00-00 COUPLING, GEARCOUPLING, GEAR
-
304KB-46172-00-00 SHAFT, DRIVESHAFT, DRIVE
-
3193410-22039-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
321YW-46180-02-00 CROSS JOINT COMP.CROSS JOINT COMP.
-
3393399-99952-00 ...BEARING...BEARING
-
3493430-23046-00 ...CIRCLIP...CIRCLIP
-
351YW-46187-01-00 ...SPIDER...SPIDER
-
3693399-99952-00 BEARINGBEARING
-
3793440-23165-00 CIRCLIPCIRCLIP
-
3893210-85706-00 O-RINGO-RING
-
3990179-10394-00 NUTNUT
-
4090201-10774-00 WASHER, PLATEWASHER, PLATE
-
4190445-072J3-00 HOSE (L890)HOSE (L890)
-
4290467-07029-00 CLIP, SCISSORCLIP, SCISSOR
