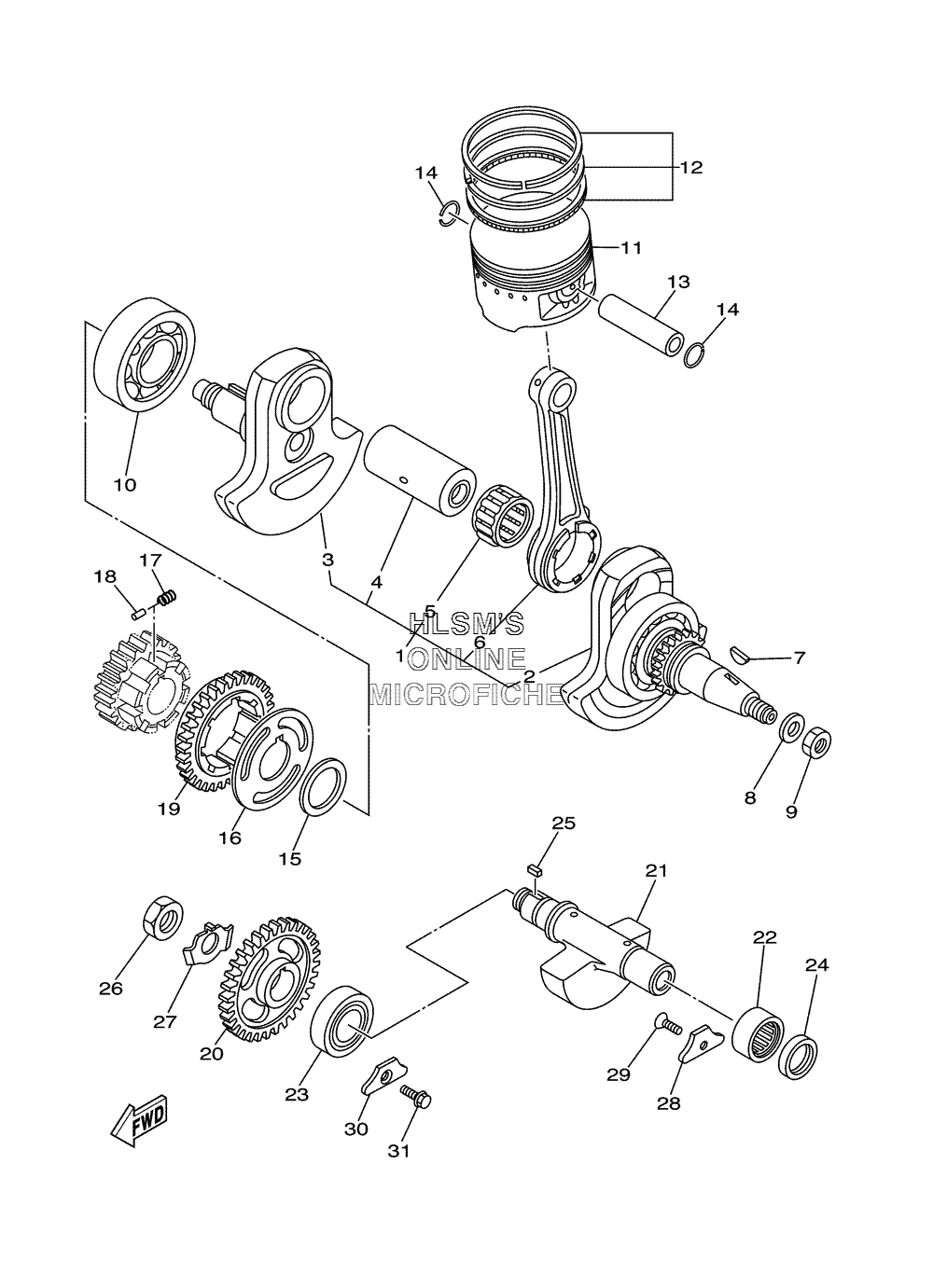

CRANKSHAFT - PISTON для Yamaha RAPTOR SPECIAL EDITION YFM660RSET - 2005 года выпуска`
-
№АртикулНазвание
-
15LP-11400-10-00 CRANKSHAFT ASSY.CRANKSHAFT ASSY.
-
25LP-W1141-00-00 ...CRANK 1...CRANK 1
-
35LP-11422-10-00 ...CRANK 2...CRANK 2
-
45KM-11681-00-00 ...PIN, CRANK 1...PIN, CRANK 1
-
593310-637D3-00 ...BEARING...BEARING
-
65LP-11651-00-00 ...ROD, CONNECTING...ROD, CONNECTING
-
790280-16053-00 KEY, WOODRUFFKEY, WOODRUFF
-
890201-14226-00 WASHER, PLATEWASHER, PLATE
-
990179-14317-00 NUTNUT
-
1093306-30702-00 BEARINGBEARING
-
113YF-11631-00-X0 PISTON (STD)PISTON (STD)
-
113YF-11636-00-00 PISTON (0.50MM O/S) (OPT)PISTON (0.50MM O/S) (OPT)
-
113YF-11638-00-00 PISTON (1.00MM O/S) (OPT)PISTON (1.00MM O/S) (OPT)
-
123YF-11610-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
123YF-11610-20-00 PISTON RING SET (0.50MM O/S) (OPT)PISTON RING SET (0.50MM O/S) (OPT)
-
123YF-11610-40-00 PISTON RING SET (1.00MM O/S) (OPT)PISTON RING SET (1.00MM O/S) (OPT)
-
133YF-11633-01-00 PIN, PISTONPIN, PISTON
-
1493450-24028-00 CIRCLIP, INNERCIRCLIP, INNER
-
1590201-301F4-00 WASHER, PLATEWASHER, PLATE
-
1634K-11565-02-00 WASHER, BEARING COVERWASHER, BEARING COVER
-
1790501-20003-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1893605-10090-00 PIN, DOWELPIN, DOWEL
-
195LP-11536-10-00 GEAR, DRIVEGEAR, DRIVE
-
205LP-11531-00-00 GEAR, BALANCE WEIGHTGEAR, BALANCE WEIGHT
-
215LP-11454-11-00 WEIGHT 1WEIGHT 1
-
2293311-62574-00 BEARINGBEARING
-
2393306-30534-00 BEARINGBEARING
-
2493102-25064-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
2590282-05058-00 KEY, STRAIGHTKEY, STRAIGHT
-
2690170-18003-00 NUTNUT
-
2790215-18001-00 WASHER, LOCKWASHER, LOCK
-
285LP-15381-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
2995027-06014-00 BOLT, FLANGEBOLT, FLANGE
-
305LP-15381-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
3195027-06014-00 BOLT, FLANGEBOLT, FLANGE
