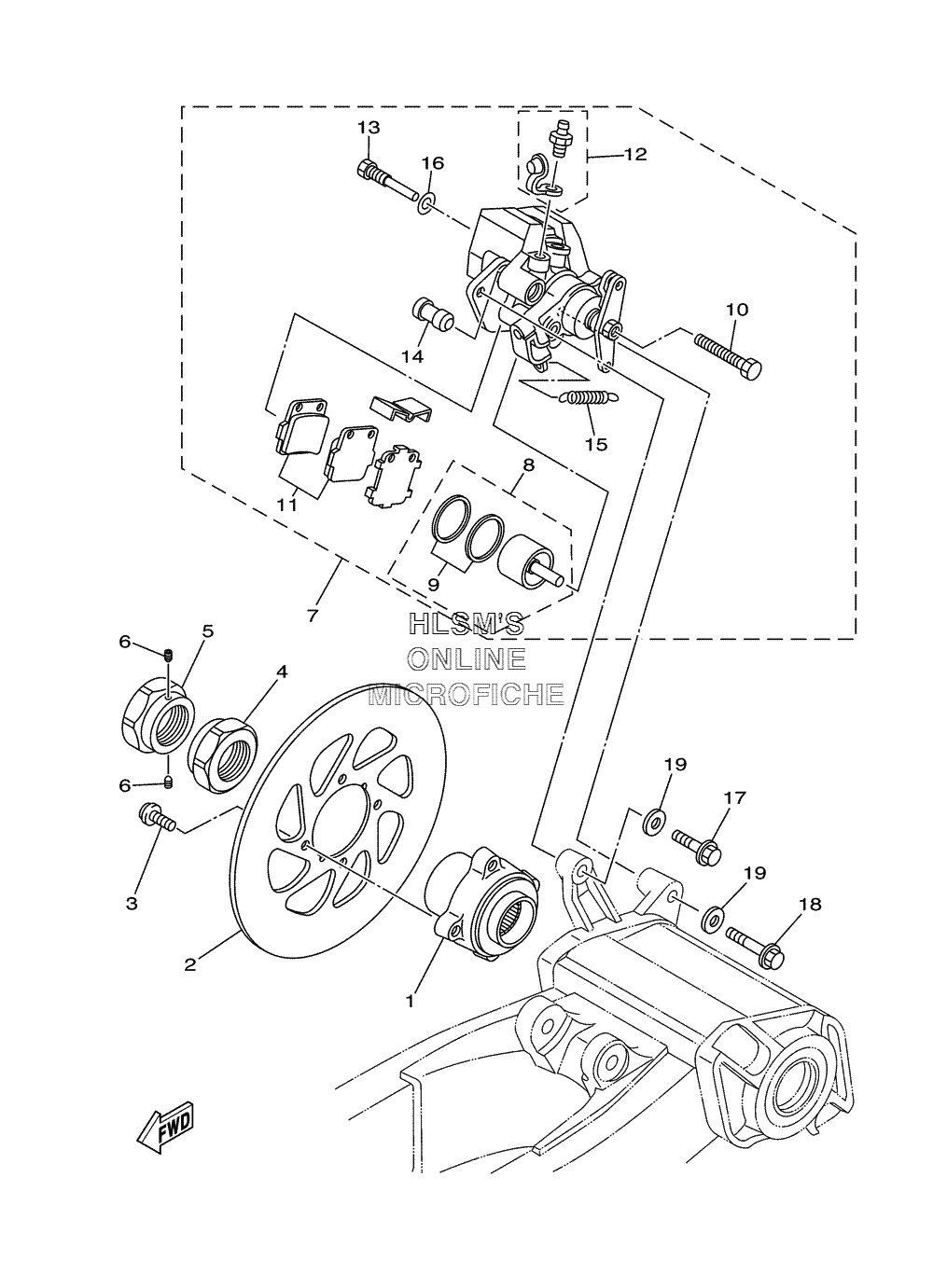

BRAKE - REAR CALIPER для Yamaha RAPTOR SPECIAL EDITION YFM660RSET - 2005 года выпуска`
-
№АртикулНазвание
-
15LP-25712-10-00 BRACKET, DISCBRACKET, DISC
-
25FK-2582W-00-00 DISK, REAR BRAKE 2DISK, REAR BRAKE 2
-
390109-081F0-00 BOLTBOLT
-
490170-33008-00 NUTNUT
-
590170-33009-00 NUTNUT
-
690113-05053-00 BOLT, SETBOLT, SET
-
75LP-2580W-10-00 CALIPER ASSY., REAR 2CALIPER ASSY., REAR 2
-
85LP-W0057-50-00 ...PISTON ASSY., CALIPER...PISTON ASSY., CALIPER
-
95LP-W0047-50-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
101UY-25972-51-00 ...ADJUST BOLT...ADJUST BOLT
-
115LP-W0046-50-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
121UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
131UY-25924-51-00 ...PIN, PAD...PIN, PAD
-
141UY-25917-51-00 ...BOOT, CALIPER...BOOT, CALIPER
-
151UY-25977-51-00 ...SPRING, RETURN...SPRING, RETURN
-
161UY-25933-51-00 ...WASHER, PAD PIN...WASHER, PAD PIN
-
1790105-08440-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1890105-08659-00 BOLT, FLANGEBOLT, FLANGE
-
1990201-08013-00 WASHER, PLATEWASHER, PLATE
