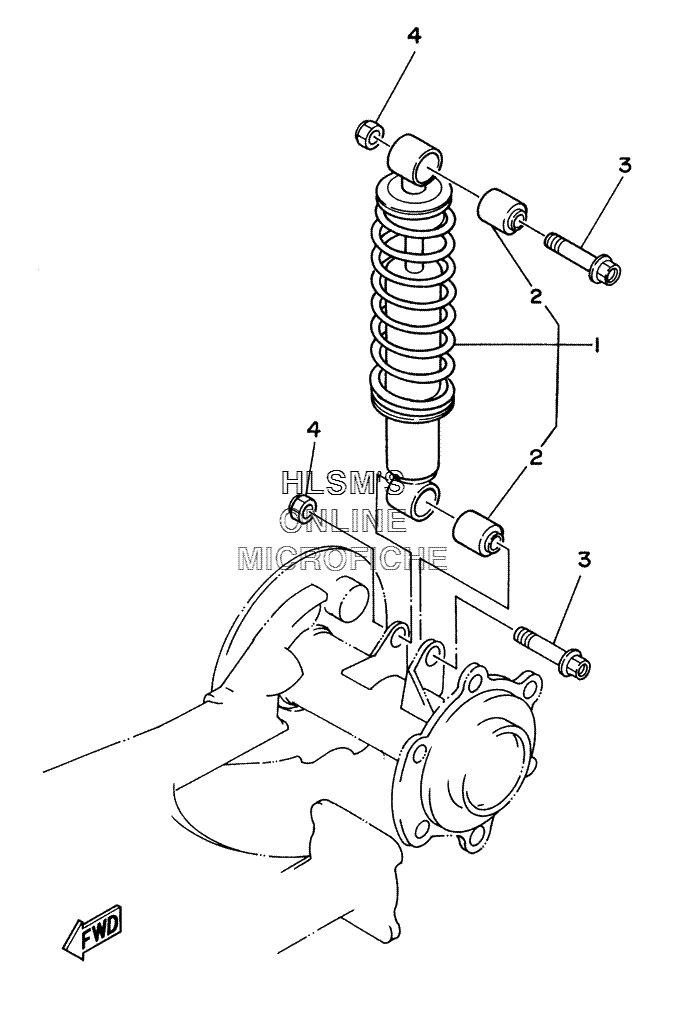

SUSPENSION - REAR SHOCK ABSORBER для Yamaha RAPTOR 50 YFM50RT - 2005 года выпуска`
-
№АртикулНазвание
-
15YF-22210-00-36 SHOCK ABSORBER ASSY., REAR FOR DPBSESHOCK ABSORBER ASSY., REAR FOR DPBSE
-
15YF-22210-00-35 SHOCK ABSORBER ASSY., REAR BWS1SHOCK ABSORBER ASSY., REAR BWS1
-
259V-22216-00-00 ...BUSH, REAR SHOCK ABSORBER...BUSH, REAR SHOCK ABSORBER
-
390105-10388-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
490185-10091-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
