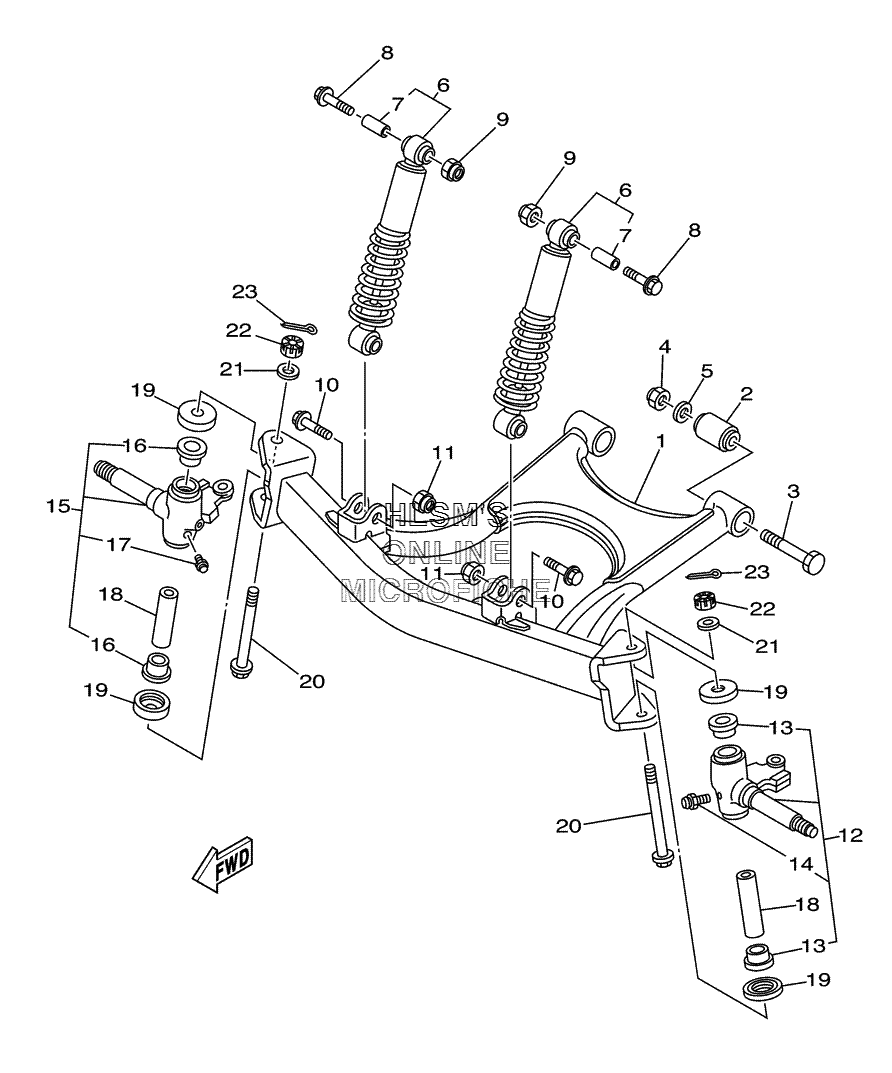

SUSPENSION - FRONT WHEEL для Yamaha RAPTOR 50 YFM50RT - 2005 года выпуска`
-
№АртикулНазвание
-
13GB-23570-00-33 FRONT LOWER ARM COMP. BLACKFRONT LOWER ARM COMP. BLACK
-
2307-22123-00-00 BUSH 1BUSH 1
-
390101-12498-00 BOLTBOLT
-
490185-12046-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
590201-12688-00 WASHER, PLATEWASHER, PLATE
-
65YF-23350-00-36 SHOCK ABSORBER ASSY. WW FOR DPBSESHOCK ABSORBER ASSY. WW FOR DPBSE
-
65YF-23350-00-35 SHOCK ABSORBER ASSY. SL FOR BWS1SHOCK ABSORBER ASSY. SL FOR BWS1
-
72HX-2331U-00-00 ...COLLAR, DISTANCE...COLLAR, DISTANCE
-
890105-10561-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
990185-10091-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1090105-12460-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1190185-12046-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
123GB-23501-10-00 STEERING KNUCKLE ASSY. (LEFT)STEERING KNUCKLE ASSY. (LEFT)
-
1390381-17067-00 ...BUSH, SOLID...BUSH, SOLID
-
1493700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
153GB-23502-10-00 STEERING KNUCKLE ASSY. (RIGHT)STEERING KNUCKLE ASSY. (RIGHT)
-
1690381-17067-00 ...BUSH, SOLID...BUSH, SOLID
-
1793700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
183GB-23448-00-00 SPACERSPACER
-
192NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
2090109-104A8-00 BOLTBOLT
-
2190201-08759-00 WASHER, PLATEWASHER, PLATE
-
2290171-10004-00 NUT, CASTLENUT, CASTLE
-
2391401-20020-00 PIN, COTTERPIN, COTTER
