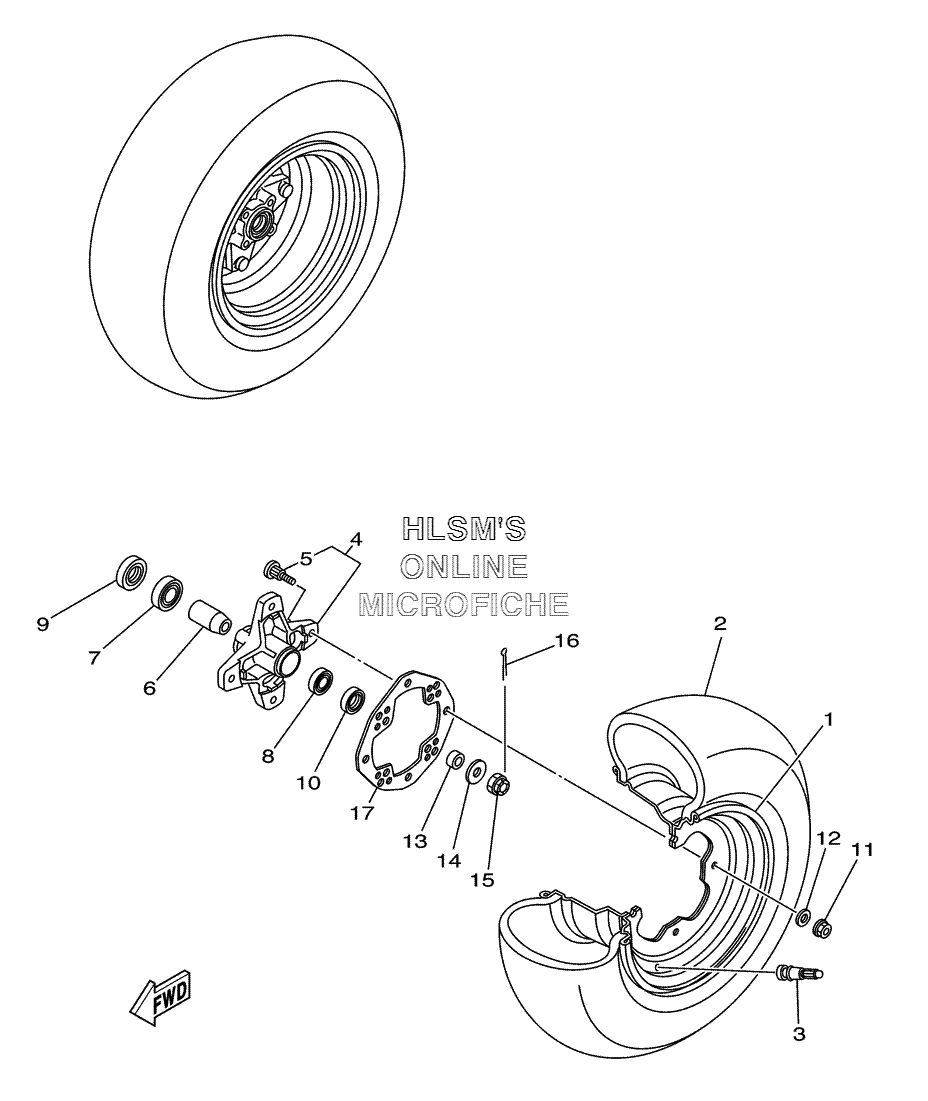

WHEEL - FRONT W/ AXLE ASSY для Yamaha RAPTOR 350 YFM350RT - 2005 года выпуска`
-
№АртикулНазвание
-
15LP-25180-10-00 WHEEL COMP.WHEEL COMP.
-
294107-10012-00 TIRE (AT21X7-10 KT851B)TIRE (AT21X7-10 KT851B)
-
393900-00022-00 VALVE, RIMVALVE, RIM
-
43GD-25111-01-00 HUB, FRONTHUB, FRONT
-
590114-10007-00 ...BOLT, SERRATION...BOLT, SERRATION
-
61UY-25117-00-00 SPACER, BEARINGSPACER, BEARING
-
793306-00438-00 BEARINGBEARING
-
893306-20227-00 BEARINGBEARING
-
993105-26026-00 OIL SEAL, SDD-TYPEOIL SEAL, SDD-TYPE
-
1093102-22216-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
1195707-10500-00 NUT, FLANGENUT, FLANGE
-
1292907-10200-00 WASHER, PLAINWASHER, PLAIN
-
1390387-150R1-00 COLLARCOLLAR
-
1490201-14586-00 WASHER, PLATEWASHER, PLATE
-
1590171-14020-00 NUT, CASTLENUT, CASTLE
-
1691401-30025-00 PIN, SPLITPIN, SPLIT
-
173GD-25127-10-00 COVER, PLATECOVER, PLATE
