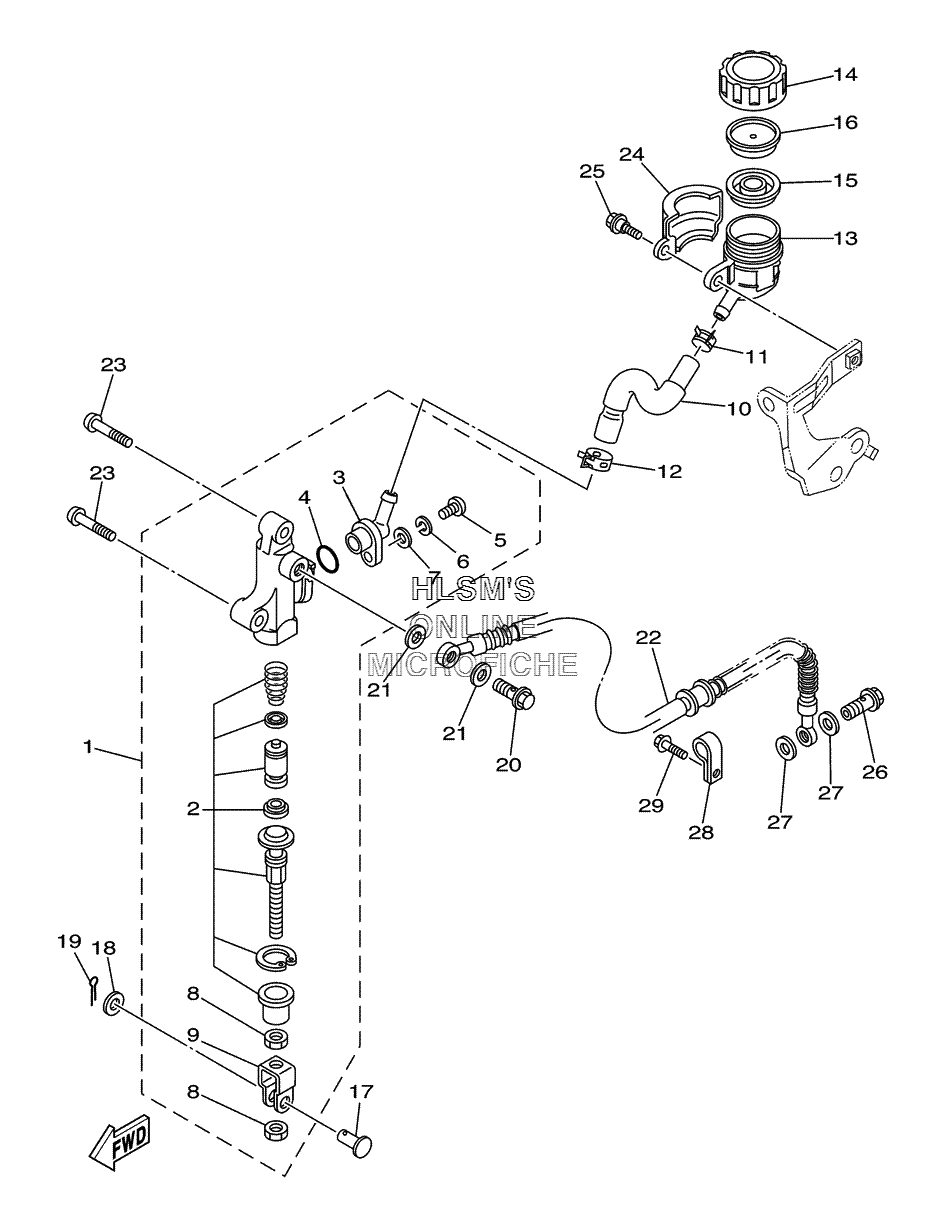

BRAKE - REAR MASTER CYLINDER для Yamaha RAPTOR 350 YFM350RT - 2005 года выпуска`
-
№АртикулНазвание
-
15YT-2583V-00-00 RR. MASTER CYLINDER ASSY.RR. MASTER CYLINDER ASSY.
-
25FK-W0042-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
347X-2582A-50-00 ...JOINT...JOINT
-
493210-15620-00 ...O-RING...O-RING
-
598506-04012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
692906-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
792906-04600-00 ...WASHER, PLATE...WASHER, PLATE
-
84SS-27218-00-00 ...NUT...NUT
-
92YK-27222-00-00 ...JOINT...JOINT
-
105YT-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
1190467-11044-00 CLIP, SCISSORCLIP, SCISSOR
-
1290467-14057-00 CLIP, SCISSORCLIP, SCISSOR
-
134EW-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
143XP-25852-50-00 CAP, RESERVOIRCAP, RESERVOIR
-
152VN-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
162VN-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
1790240-08013-00 PIN, CLEVISPIN, CLEVIS
-
1890201-08083-00 WASHER, PLATEWASHER, PLATE
-
1991401-16012-00 PIN, COTTERPIN, COTTER
-
2090401-10159-00 BOLT, UNIONBOLT, UNION
-
2190201-10118-00 WASHER, PLATEWASHER, PLATE
-
225YT-25874-00-00 HOSE, BRAKEHOSE, BRAKE
-
2392017-08030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
245YT-25888-00-00 COVER, RESERVOIR TANKCOVER, RESERVOIR TANK
-
2590109-06060-00 BOLTBOLT
-
2690401-10159-00 BOLT, UNIONBOLT, UNION
-
2790201-10118-00 WASHER, PLATEWASHER, PLATE
-
285YT-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
2995807-06020-00 BOLT, FLANGEBOLT, FLANGE
