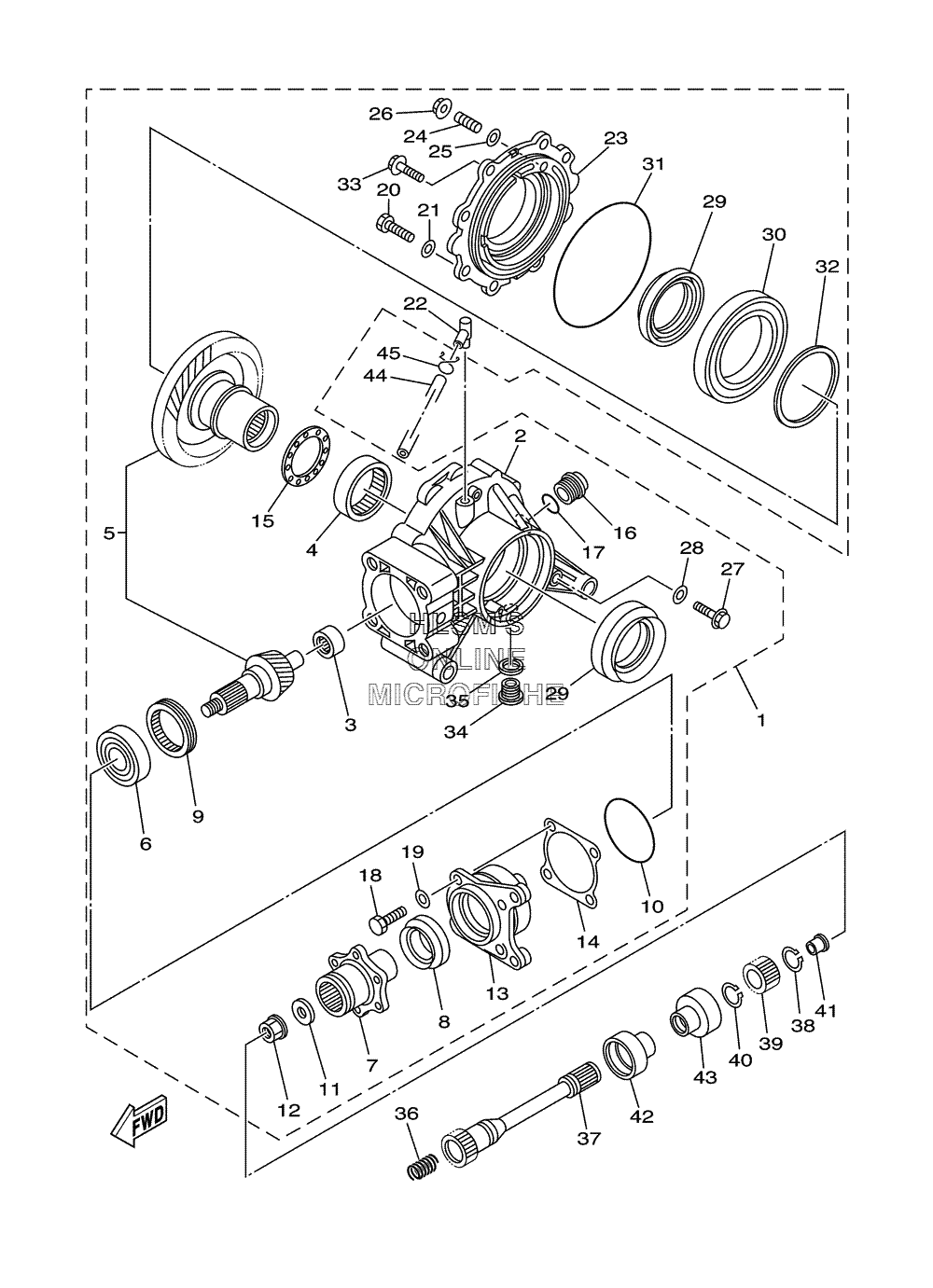

DIFFERENTIAL - REAR W/ DRIVE SHAFT для Yamaha GRIZZLY 660 HUNTER WETLAND YFM66FAHWT - 2005 года выпуска`
-
№АртикулНазвание
-
15KM-46101-11-00 REAR AXLE GEAR CASE ASSY.REAR AXLE GEAR CASE ASSY.
-
25KM-46151-01-00 ...HOUSING, DRIVE SHAFT...HOUSING, DRIVE SHAFT
-
35KM-46102-00-00 ...BEARING ASSY....BEARING ASSY.
-
493317-85569-00 ...BEARING, CYL.#17...BEARING, CYL.#17
-
55KM-Y4612-00-00 ...RING GEAR SET...RING GEAR SET
-
693306-30574-00 ...BEARING...BEARING
-
75KM-46212-00-00 ...BOSS, 1...BOSS, 1
-
893102-35009-00 ...OIL SEAL...OIL SEAL
-
990179-65001-00 ...NUT...NUT
-
1093210-626A7-00 ...O-RING...O-RING
-
1190201-12191-00 ...WASHER, PLATE...WASHER, PLATE
-
1290179-12325-00 ...NUT...NUT
-
135KM-46144-01-00 ...HOUSING, PINION BEARING...HOUSING, PINION BEARING
-
142HR-46127-00-25 ...SHIM, DRIVE PISTON (0.25T)...SHIM, DRIVE PISTON (0.25T)
-
142HR-46127-00-30 ...SHIM, DRIVE PISTON (0.30T)...SHIM, DRIVE PISTON (0.30T)
-
142HR-46127-00-35 ...SHIM, DRIVE PISTON (0.35T)...SHIM, DRIVE PISTON (0.35T)
-
142HR-46127-00-40 ...SHIM, DRIVE PISTON (0.40T)...SHIM, DRIVE PISTON (0.40T)
-
142HR-46127-00-45 ...SHIM, DRIVE PISTON (0.45T)...SHIM, DRIVE PISTON (0.45T)
-
142HR-46127-00-50 ...SHIM, DRIVE PISTON (0.50T)...SHIM, DRIVE PISTON (0.50T)
-
1524W-46118-00-12 ...WASHER, THRUST (1.2T)...WASHER, THRUST (1.2T)
-
1524W-46118-00-14 ...WASHER, THRUST (1.4T)...WASHER, THRUST (1.4T)
-
1524W-46118-00-16 ...WASHER, THRUST (1.6T)...WASHER, THRUST (1.6T)
-
1524W-46118-00-18 ...WASHER, THRUST (1.8T)...WASHER, THRUST (1.8T)
-
1524W-46118-00-20 ...WASHER, THRUST (2.0T)...WASHER, THRUST (2.0T)
-
1690340-20143-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
1793210-19123-00 ...O-RING...O-RING
-
1897017-08035-00 ...BOLT...BOLT
-
1992907-08600-00 ...WASHER, PLATE...WASHER, PLATE
-
2097027-08025-00 ...BOLT...BOLT
-
2192907-08600-00 ...WASHER, PLATE...WASHER, PLATE
-
222N4-15371-00-00 ...BREATHER...BREATHER
-
235KM-46152-00-00 ...HOUSING, BEARING...HOUSING, BEARING
-
242HR-46156-00-00 ...STOPPER, RING GEAR...STOPPER, RING GEAR
-
2590201-08087-00 ...WASHER, PLATE...WASHER, PLATE
-
2695707-08500-00 ...NUT, FLANGE...NUT, FLANGE
-
2795027-08012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
2890201-08087-00 ...WASHER, PLATE...WASHER, PLATE
-
2993102-65004-00 ...OIL SEAL...OIL SEAL
-
3093316-01701-00 ...BEARING...BEARING
-
3193211-51749-00 ...O-RING...O-RING
-
3222U-46117-00-25 ...SHIM, RING GEAR (0.25T)...SHIM, RING GEAR (0.25T)
-
3222U-46117-00-30 ...SHIM, RING GEAR (0.30T)...SHIM, RING GEAR (0.30T)
-
3222U-46117-00-40 ...SHIM, RING GEAR (0.40T)...SHIM, RING GEAR (0.40T)
-
3395817-10025-00 ...BOLT, FLANGE...BOLT, FLANGE
-
3490340-14046-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
35214-11198-01-00 ...GASKET...GASKET
-
3690501-18002-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
375KM-46172-00-00 SHAFT, DRIVESHAFT, DRIVE
-
3899009-19400-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
395KM-46126-00-00 COUPLINGCOUPLING
-
4093410-22039-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
415KM-46559-00-00 DAMPERDAMPER
-
425KM-46137-00-00 SEAL 2SEAL 2
-
435KM-46136-00-00 SEAL 1SEAL 1
-
4490445-07371-00 HOSEHOSE
-
4590467-07029-00 CLIP, SCISSORCLIP, SCISSOR
