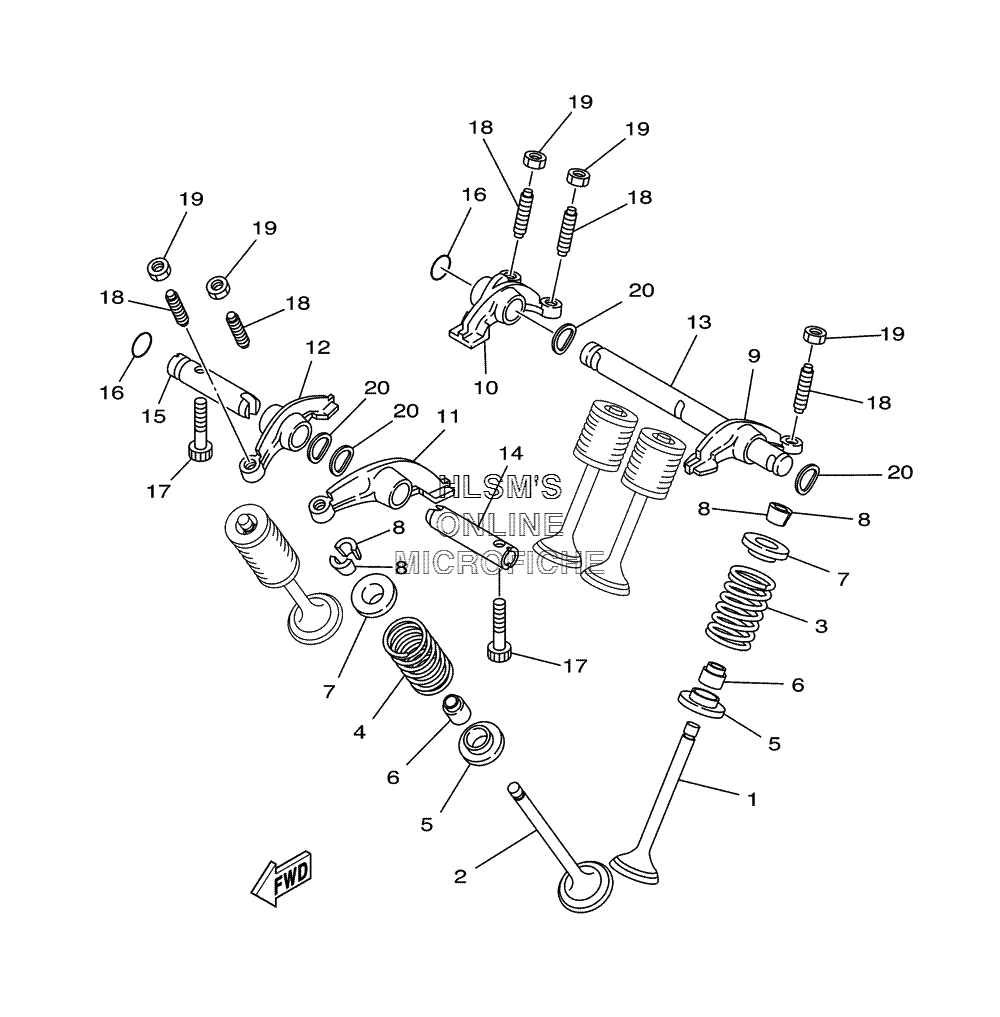

VALVE ASSY для Yamaha GRIZZLY 660 HUNTER WETLAND YFM66FAHWT - 2005 года выпуска`
-
№АртикулНазвание
-
15KM-12111-00-00 VALVE, INTAKEVALVE, INTAKE
-
23YF-12121-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
33YF-12113-00-00 SPRING, VALVE INNERSPRING, VALVE INNER
-
43YF-12114-00-00 SPRING, VALVE OUTERSPRING, VALVE OUTER
-
53YF-12116-00-00 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
65H0-12119-00-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
73YF-12117-01-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
84G0-12118-00-00 COTTER, VALVECOTTER, VALVE
-
93YF-12151-00-00 ARM, VALVE ROCKERARM, VALVE ROCKER
-
103YF-12161-00-00 ARM, VALVE ROCKER 2ARM, VALVE ROCKER 2
-
113YF-12162-00-00 ARM, VALVE ROCKER 3ARM, VALVE ROCKER 3
-
123YF-12163-00-00 ARM, VALVE ROCKER 4ARM, VALVE ROCKER 4
-
133YF-12146-00-00 SHAFT, ROCKERSHAFT, ROCKER
-
142NX-12156-00-00 SHAFT, ROCKER 2SHAFT, ROCKER 2
-
153YF-12166-00-00 SHAFT, ROCKER 3SHAFT, ROCKER 3
-
1693210-08521-00 O-RINGO-RING
-
1790109-063E8-00 BOLTBOLT
-
182NX-12159-00-00 SCREW, VALVE ADJUSTINGSCREW, VALVE ADJUSTING
-
1990170-06128-00 NUTNUT
-
2090206-12075-00 WASHER, WAVEWASHER, WAVE
