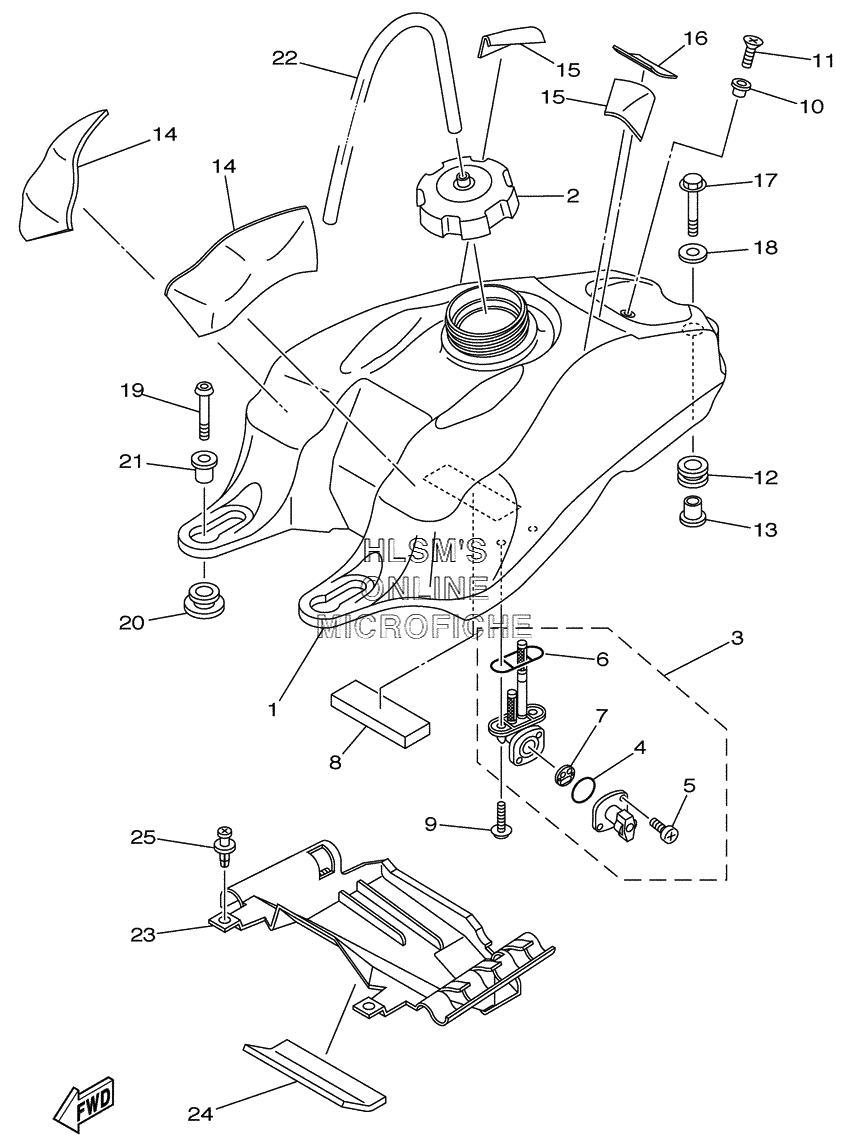

FUEL TANK для Yamaha YFZ450 LIMITED EDITION YFZ450LES - 2004 года выпуска`
-
№АртикулНазвание
-
15TG-24110-00-00 FUEL TANK COMP.FUEL TANK COMP.
-
25KM-24610-00-00 CAP ASSYCAP ASSY
-
35TG-24500-00-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
43AJ-24534-00-00 ...SEAL, COCK...SEAL, COCK
-
597801-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
64X8-24512-00-00 ...O-RING...O-RING
-
73AJ-24523-00-00 ...VALVE PACKING...VALVE PACKING
-
85TG-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
990149-06011-00 SCREWSCREW
-
104EW-2412F-00-00 BRACKET, SEATBRACKET, SEAT
-
1198707-06025-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
1290480-18290-00 GROMMETGROMMET
-
1390387-066J1-00 COLLARCOLLAR
-
1412R-21747-00-00 DAMPERDAMPER
-
15M12-T133A-00-00 SEAT, DAMPER ASEAT, DAMPER A
-
1622F-2139X-00-00 DAMPERDAMPER
-
1795827-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1890201-06071-00 WASHER, PLATEWASHER, PLATE
-
1992017-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2090480-18004-00 GROMMETGROMMET
-
2190387-066J1-00 COLLARCOLLAR
-
2290445-083J4-00 HOSE (L340)HOSE (L340)
-
235TG-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
2412R-21747-00-00 DAMPERDAMPER
-
2590269-06002-00 RIVETRIVET
