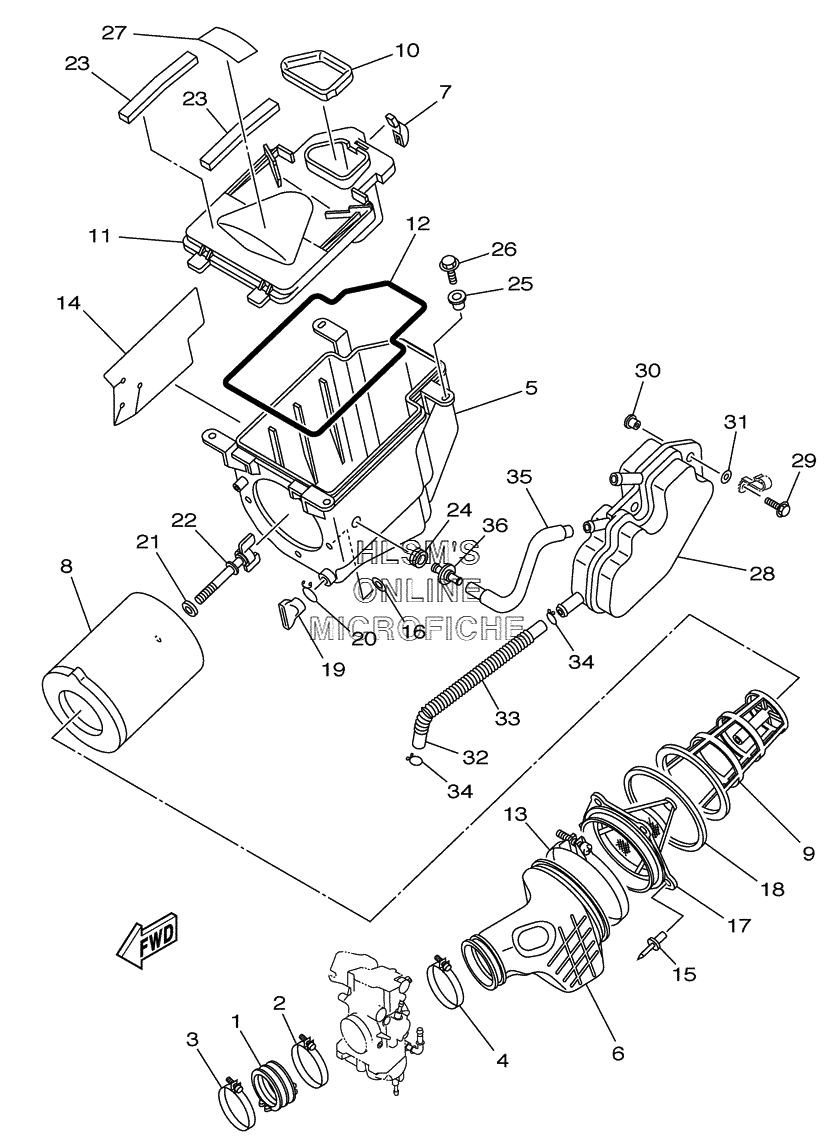

AIR CLEANER W/ INTAKE для Yamaha YFZ450 LIMITED EDITION YFZ450LES - 2004 года выпуска`
-
№АртикулНазвание
-
15TA-13597-00-00 JOINT, CARBURETOR 3JOINT, CARBURETOR 3
-
290450-57004-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
390450-59002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
490450-61001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
55TG-14411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
65TG-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
75GH-14436-00-00 HOOKHOOK
-
85TG-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
95TG-14458-00-00 GUIDEGUIDE
-
105TG-14479-00-00 FUNNELFUNNEL
-
115TG-14412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
124FU-14452-00-00 SEALSEAL
-
1390450-99064-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
145TG-1442F-00-00 PROTECTORPROTECTOR
-
1590267-48138-00 RIVET, BLINDRIVET, BLIND
-
1690201-043H7-00 WASHER, PLATEWASHER, PLATE
-
175TG-14459-00-00 HOLDER, GUIDEHOLDER, GUIDE
-
184ES-14462-00-00 SEALSEAL
-
1959V-14457-00-00 SEALSEAL
-
2090467-22080-00 CLIPCLIP
-
2190209-06096-00 WASHERWASHER
-
2290122-06002-00 BOLT, WINGBOLT, WING
-
235TG-14409-00-00 DAMPERDAMPER
-
2431A-14435-00-00 GROMMETGROMMET
-
2590387-08023-00 COLLARCOLLAR
-
2690105-06044-00 BOLT, FLANGEBOLT, FLANGE
-
275TG-2179T-00-00 PLATE, EPA 3 (CALIFORNIA)PLATE, EPA 3 (CALIFORNIA)
-
285TG-15370-00-00 BREATHER ASSYBREATHER ASSY
-
2990105-06044-00 BOLT, FLANGEBOLT, FLANGE
-
3090387-07789-00 COLLARCOLLAR
-
3190201-06557-00 WASHER, PLATEWASHER, PLATE
-
325TG-1531A-00-00 HOSE, BREATHER 1HOSE, BREATHER 1
-
3390501-100A0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
3490467-14015-00 CLIPCLIP
-
355TG-1532A-00-00 HOSE, BREATHER 2HOSE, BREATHER 2
-
365TG-14419-00-00 PIPEPIPE
