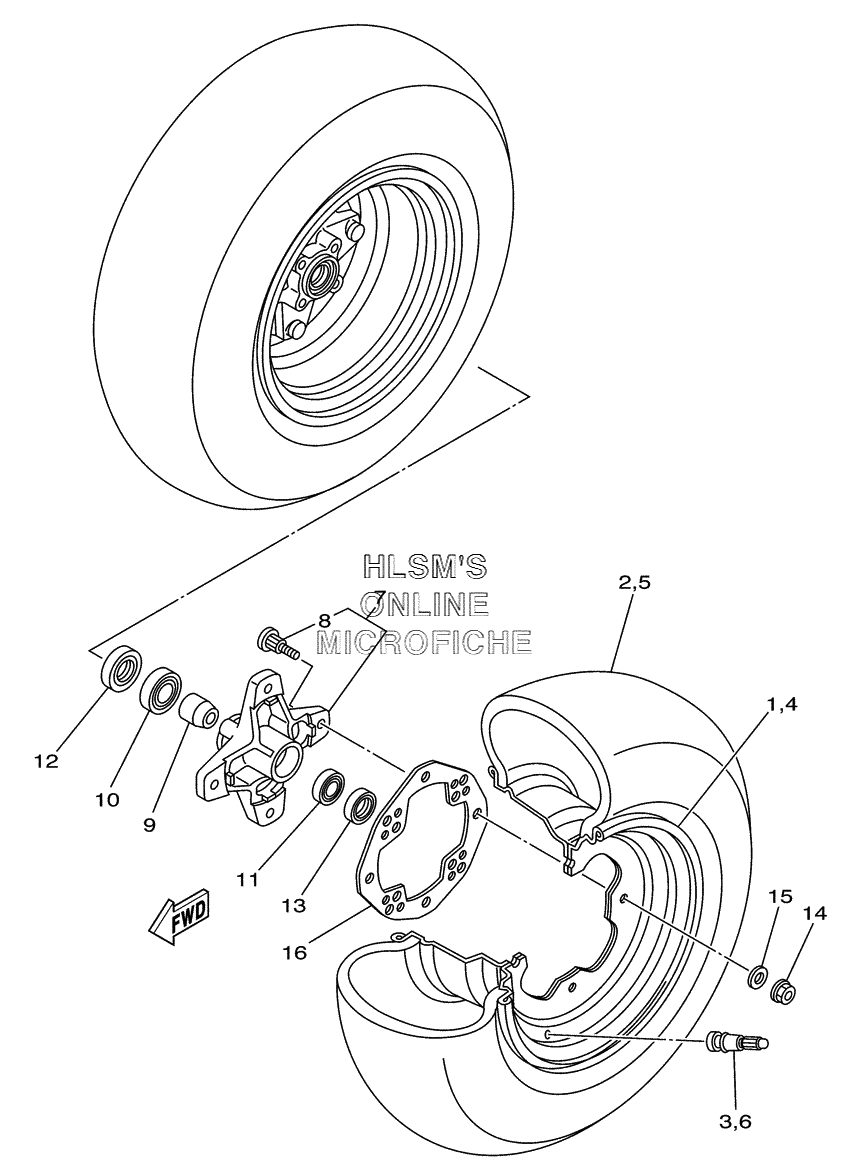

WHEEL - FRONT W/ AXLE ASSY для Yamaha RAPTOR 660R YFM660RS - 2004 года выпуска`
-
№АртикулНазвание
-
15LP-25180-10-00 WHEEL COMP.WHEEL COMP.
-
294107-10009-00 TIRE (AT21 X 7-10** KT331) (DUNLOP)TIRE (AT21 X 7-10** KT331) (DUNLOP)
-
393900-00030-00 VALVE, RIM (TR412) (TAIHEIYO)VALVE, RIM (TR412) (TAIHEIYO)
-
45LP-25180-10-00 WHEEL COMP.WHEEL COMP.
-
594107-10009-00 TIRE (AT21 X 7-10** KT331) (DUNLOP)TIRE (AT21 X 7-10** KT331) (DUNLOP)
-
693900-00030-00 VALVE, RIM (TR412) (TAIHEIYO)VALVE, RIM (TR412) (TAIHEIYO)
-
75LP-25111-00-00 HUB, FRONTHUB, FRONT
-
890114-10007-00 ...BOLT, SERRATION...BOLT, SERRATION
-
95LP-25117-00-00 SPACER, BEARINGSPACER, BEARING
-
1093306-00406-00 BEARING (B6004Z) (OPT) (NTN)BEARING (B6004Z) (OPT) (NTN)
-
1093306-00438-00 BEARING (OPT) (NIHONSEIKO)BEARING (OPT) (NIHONSEIKO)
-
1193306-20227-00 BEARINGBEARING
-
1293105-26026-00 OIL SEALOIL SEAL
-
1393102-22216-00 OIL SEALOIL SEAL
-
1495707-10500-00 NUT, FLANGENUT, FLANGE
-
1592907-10200-00 WASHER, PLAINWASHER, PLAIN
-
163GD-25127-10-00 COVER, PLATECOVER, PLATE
