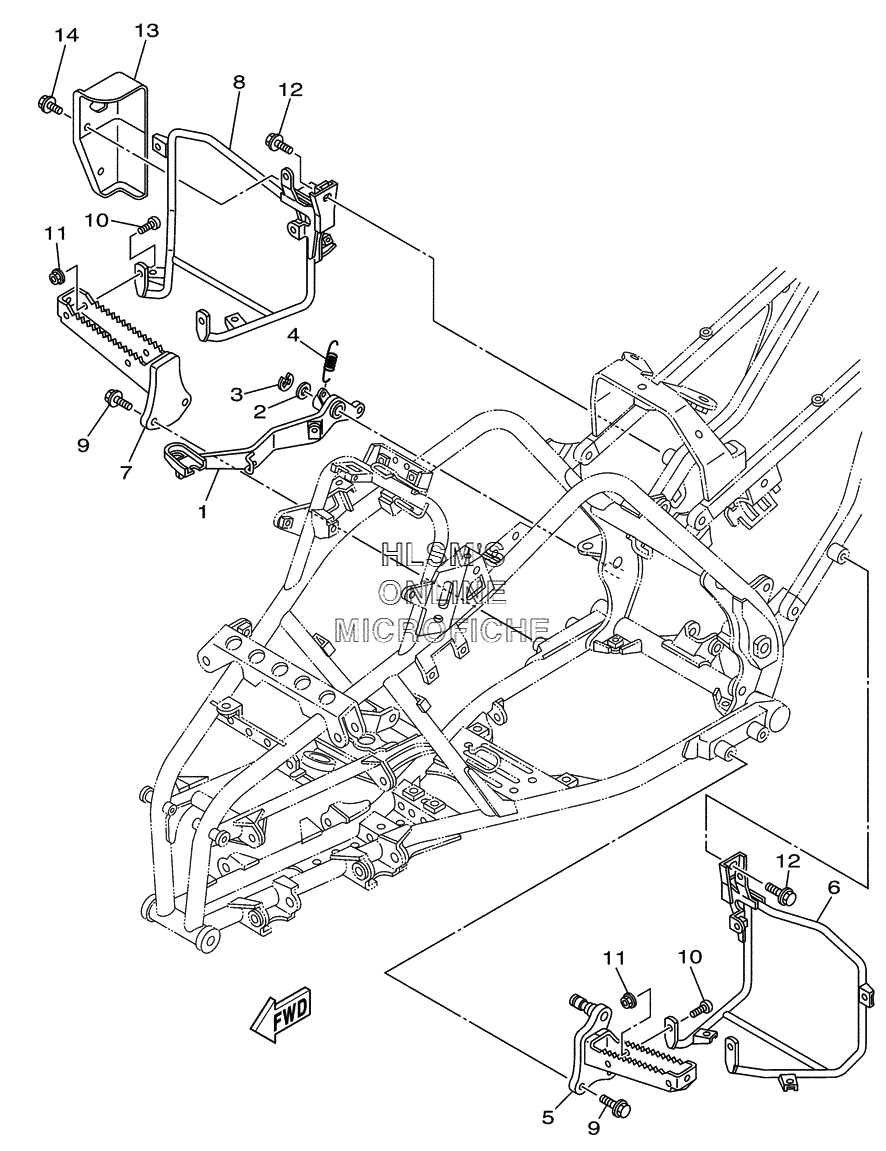

FOOTREST W/ BRAKE PEDAL для Yamaha RAPTOR 660R YFM660RS - 2004 года выпуска`
-
№АртикулНазвание
-
15LP-27211-10-00 PEDAL, BRAKEPEDAL, BRAKE
-
290201-15797-00 WASHER, PLATEWASHER, PLATE
-
393430-12008-00 CIRCLIPCIRCLIP
-
490506-20380-00 SPRING, TENSIONSPRING, TENSION
-
55LP-27411-00-00 FOOTREST 1FOOTREST 1
-
65LP-27445-00-00 PLATE 1PLATE 1
-
75LP-27421-00-00 FOOTREST 2FOOTREST 2
-
85LP-27446-00-00 PLATE 2PLATE 2
-
995817-10025-00 BOLT, FLANGEBOLT, FLANGE
-
1092017-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1195607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1295827-08012-00 BOLT, FLANGEBOLT, FLANGE
-
135LP-27453-00-00 COVER 1COVER 1
-
1490109-06036-00 BOLTBOLT
