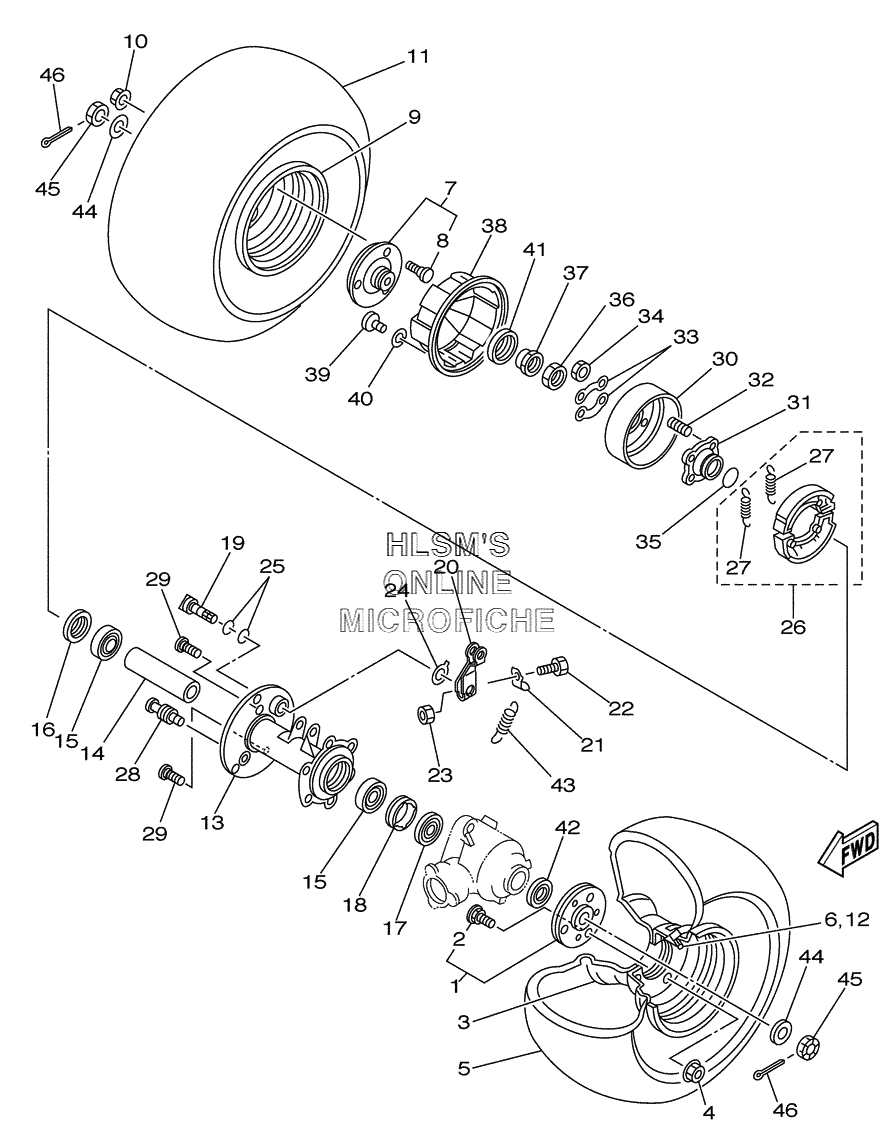

WHEEL - REAR W/ BRAKE ASSY для Yamaha RAPTOR 50 YFM50S - 2004 года выпуска`
-
№АртикулНазвание
-
155X-25383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
290109-08745-00 ...BOLT...BOLT
-
32FJ-25390-00-35 REAR WHEEL COMP. (SL - SILVER)REAR WHEEL COMP. (SL - SILVER)
-
495707-08500-00 NUT, FLANGENUT, FLANGE
-
594108-07008-00 TIRE (AT16X8-7 KT145 TL) (DUNLOP)TIRE (AT16X8-7 KT145 TL) (DUNLOP)
-
693900-00022-00 VALVE, RIM (TR413) (TAIHEIYO)VALVE, RIM (TR413) (TAIHEIYO)
-
755X-25383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
890109-08745-00 ...BOLT...BOLT
-
92FJ-25390-00-35 REAR WHEEL COMP. (SL - SILVER)REAR WHEEL COMP. (SL - SILVER)
-
1095707-08500-00 NUT, FLANGENUT, FLANGE
-
1194108-07008-00 TIRE (AT16X8-7 KT145 TL) (DUNLOP)TIRE (AT16X8-7 KT145 TL) (DUNLOP)
-
1293900-00022-00 VALVE, RIM (TR413) (TAIHEIYO)VALVE, RIM (TR413) (TAIHEIYO)
-
133GB-25311-00-33 HUB, REAR (YB - YAMAHA BLACK)HUB, REAR (YB - YAMAHA BLACK)
-
143GB-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
1593306-00612-00 BEARINGBEARING
-
1693102-38383-00 OIL SEALOIL SEAL
-
1793102-36409-00 OIL SEALOIL SEAL
-
183GB-25382-00-00 NUT, AXLENUT, AXLE
-
193Y6-25351-00-00 CAMSHAFTCAMSHAFT
-
205YF-25355-00-00 LEVER, CAMSHAFTLEVER, CAMSHAFT
-
2155X-2533H-00-00 HOOK, SPRINGHOOK, SPRING
-
2290101-06562-00 BOLTBOLT
-
2395307-06600-00 NUTNUT
-
2423F-2533A-00-00 PLATE, INDICATORPLATE, INDICATOR
-
2593210-14104-00 O-RINGO-RING
-
263KG-W253E-00-00 BRAKE SHOE KITBRAKE SHOE KIT
-
2790506-15260-00 ...SPRING, TENSION...SPRING, TENSION
-
283GB-25326-00-00 PIN, PIVOTPIN, PIVOT
-
2990114-10005-00 BOLT, SERRATIONBOLT, SERRATION
-
303GB-2531E-00-00 DRUM, BRAKEDRUM, BRAKE
-
313GB-25343-00-00 BOSSBOSS
-
3290116-08507-00 BOLT, STUDBOLT, STUD
-
33390-25412-01-00 WASHERWASHER
-
3495307-08600-00 NUTNUT
-
3593210-26606-00 O-RINGO-RING
-
3690170-28379-00 NUTNUT
-
3790179-28573-00 NUTNUT
-
383GB-25715-00-00 COVER 1COVER 1
-
3998507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
4092907-06100-00 WASHER, SPRINGWASHER, SPRING
-
4193102-35349-00 OIL SEALOIL SEAL
-
423GB-25367-00-00 COVER, HUB DUSTCOVER, HUB DUST
-
4390507-15038-00 SPRING, TENSIONSPRING, TENSION
-
4490201-126A7-00 WASHER, PLATEWASHER, PLATE
-
4590171-12039-00 NUT, CASTLENUT, CASTLE
-
4691401-25025-00 PIN, COTTERPIN, COTTER
