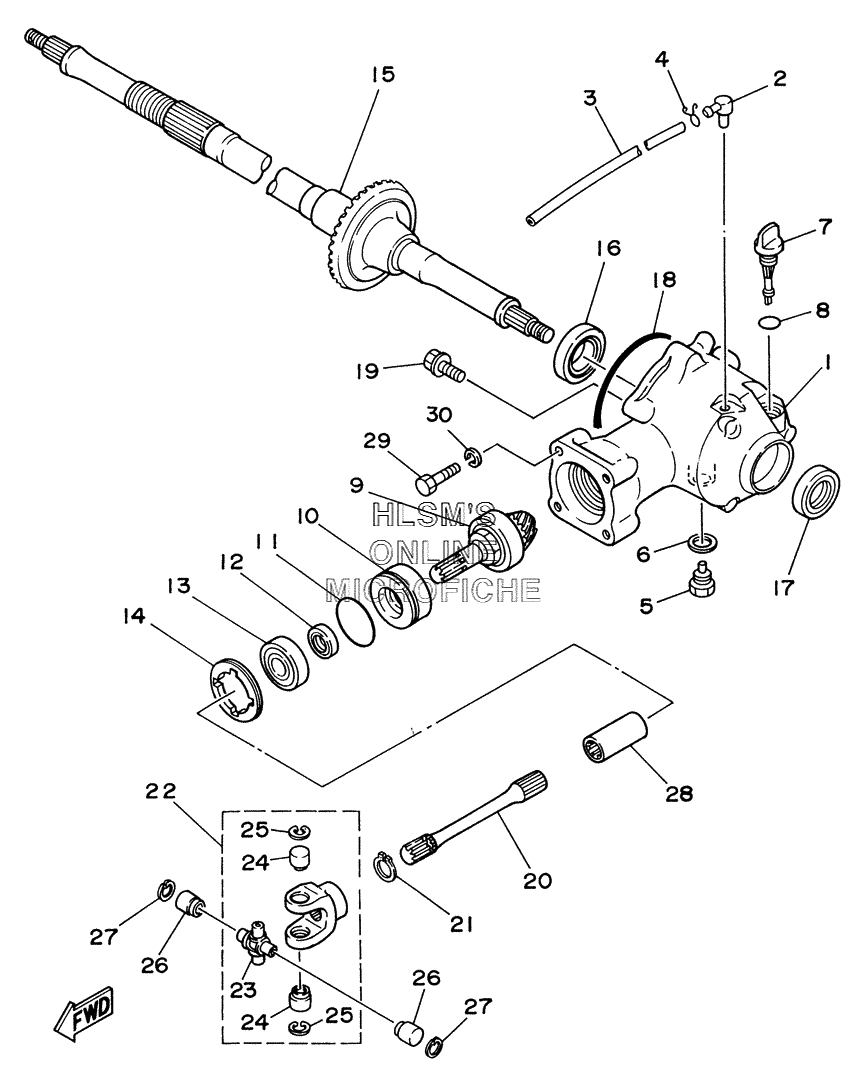

DIFFERENTIAL - REAR W/ DRIVE SHAFT для Yamaha RAPTOR 50 YFM50S - 2004 года выпуска`
-
№АртикулНазвание
-
13GB-46151-00-00 HOUSING, DRIVE SHAFTHOUSING, DRIVE SHAFT
-
22N4-15371-00-00 BREATHERBREATHER
-
390445-073F9-00 HOSE (L1200)HOSE (L1200)
-
490467-07029-00 CLIPCLIP
-
590340-14132-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
6214-11198-01-00 GASKETGASKET
-
73GB-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
893210-14104-00 O-RINGO-RING
-
93GB-46120-00-00 DRIVE PINION COMP.DRIVE PINION COMP.
-
1090560-23355-00 SPACERSPACER
-
1193210-43713-00 O-RINGO-RING
-
1293102-17271-00 OIL SEALOIL SEAL
-
1393306-30306-00 BEARING (B6303)BEARING (B6303)
-
1490179-55464-00 NUTNUT
-
153GB-46110-10-00 RING GEAR COMP.RING GEAR COMP.
-
1693306-07801-00 BEARINGBEARING
-
1793102-28022-00 OIL SEALOIL SEAL
-
1893211-066A9-00 O-RINGO-RING
-
1995817-06016-00 BOLT, FLANGEBOLT, FLANGE
-
203GB-46172-01-00 SHAFT, DRIVESHAFT, DRIVE
-
2199009-17400-00 CIRCLIPCIRCLIP
-
222HX-46180-00-00 CROSS JOINT COMP.CROSS JOINT COMP.
-
2322F-46187-00-00 ...SPIDER...SPIDER
-
2493311-20952-00 ...BEARING...BEARING
-
2599009-17500-00 ...CIRCLIP...CIRCLIP
-
2693311-20952-00 BEARINGBEARING
-
2799009-17500-00 CIRCLIPCIRCLIP
-
2822F-46123-01-00 COUPLING, GEARCOUPLING, GEAR
-
2990101-08461-00 BOLTBOLT
-
3092907-08100-00 WASHER, SPRINGWASHER, SPRING
