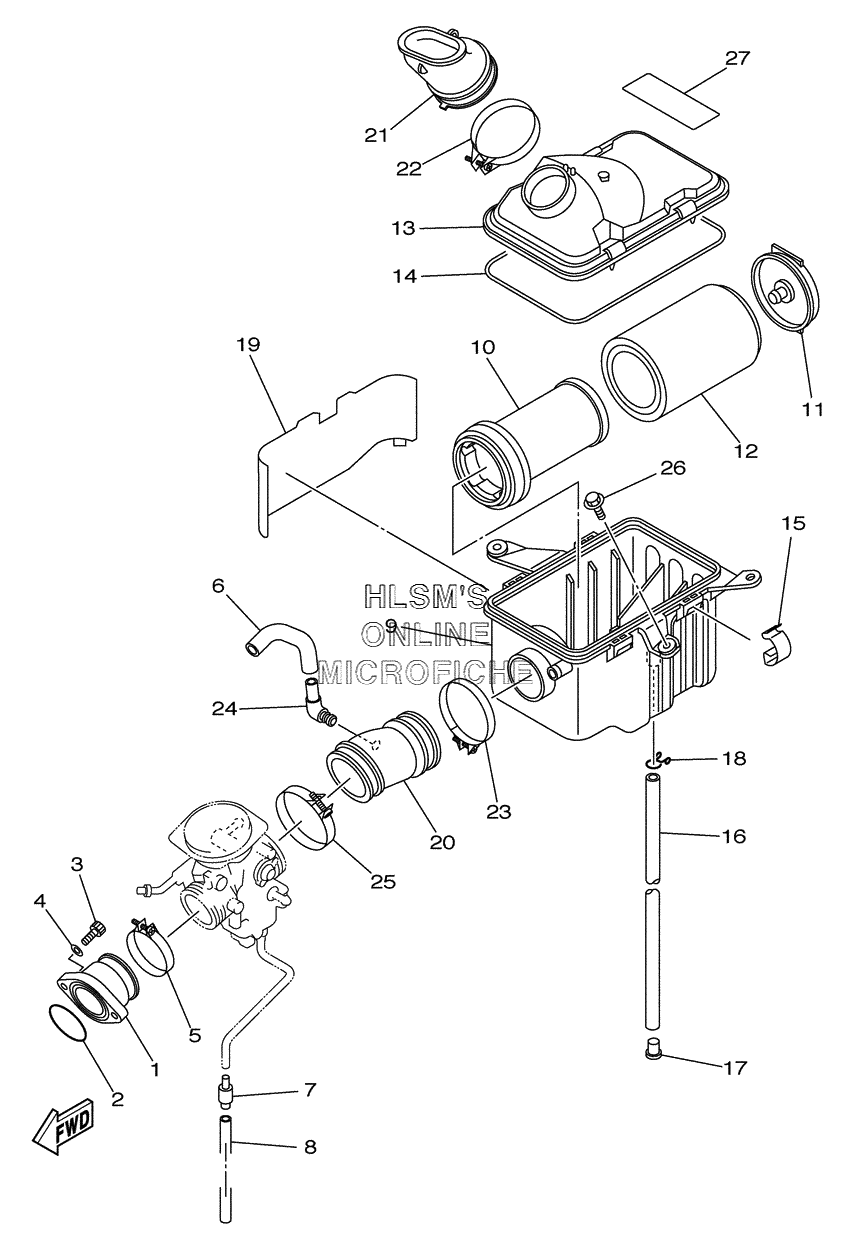

AIR CLEANER W/ INTAKE для Yamaha KODIAK 400 YFM400AS - 2004 года выпуска`
-
№АртикулНазвание
-
15GH-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
293210-44545-00 O-RINGO-RING
-
391317-08025-00 BOLTBOLT
-
490201-08085-00 WASHER, PLATEWASHER, PLATE
-
590450-47001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
65ND-E4349-00-00 PIPEPIPE
-
724W-14193-00-00 PIPEPIPE
-
891A20-07010-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
95UH-E4411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
105UH-E4458-00-00 GUIDEGUIDE
-
115UH-E4468-00-00 PLATE,ELEMENT FITTINGPLATE,ELEMENT FITTING
-
125UH-E4451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
135UH-E4412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
145UH-E4462-00-00 SEALSEAL
-
155UH-E4424-00-00 CLIP, CAP FITTINGCLIP, CAP FITTING
-
165UH-E4769-00-00 PIPE, DRAINPIPE, DRAIN
-
175UH-E4191-00-00 PLUG, DRAINPLUG, DRAIN
-
185UH-E4438-00-00 CLIP, DRAIN CLEANERCLIP, DRAIN CLEANER
-
195ND-E442F-00-00 PROTECTORPROTECTOR
-
205ND-E4453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
215ND-E4437-00-00 DUCTDUCT
-
2290460-58124-00 CLAMP, HOSECLAMP, HOSE
-
2390460-58124-00 CLAMP, HOSECLAMP, HOSE
-
2431A-14419-00-00 PIPEPIPE
-
2590460-56105-00 CLAMP, HOSECLAMP, HOSE
-
2690119-06227-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
275TE-2179T-10-00 PLATE, EPA 3 (CALIF ONLY)PLATE, EPA 3 (CALIF ONLY)
