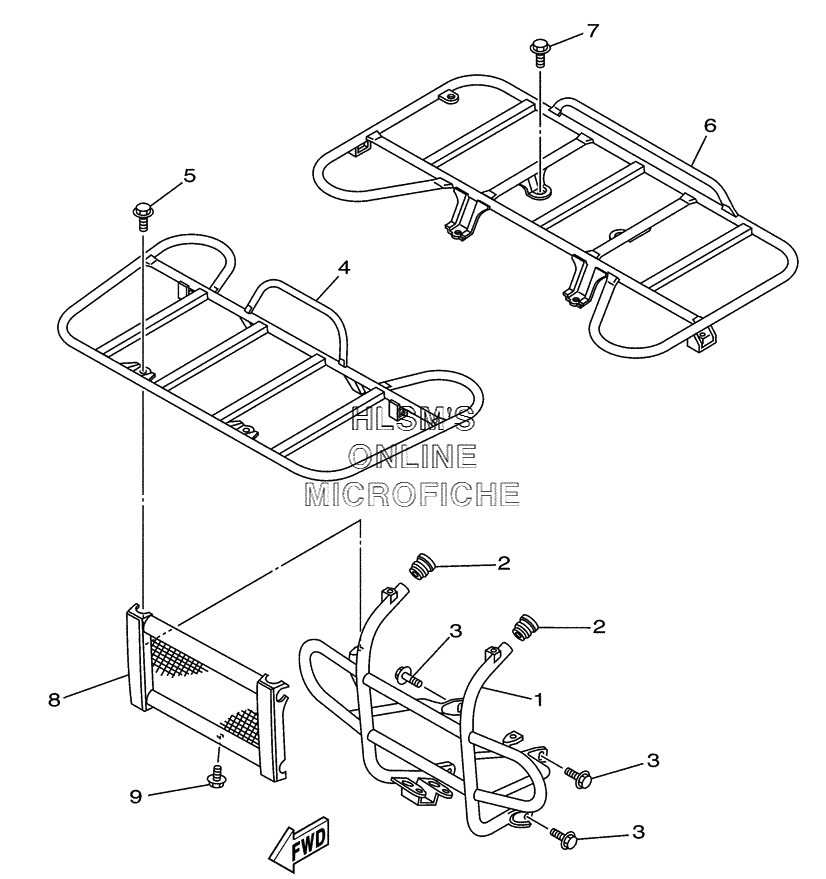

RACK AND BUMPER для Yamaha KODIAK 400 YFM400AS - 2004 года выпуска
-
№АртикулНазвание
-
15ND-F845N-00-00 BAR, CARRY FRONTBAR, CARRY FRONT
-
24XE-F1399-00-00 CAP, TOOL BOXCAP, TOOL BOX
-
39581P-08012-00 BOLT, FLANGEBOLT, FLANGE
-
45ND-F4841-00-00 CARRIER, FRONTCARRIER, FRONT
-
59581P-08012-00 BOLT, FLANGEBOLT, FLANGE
-
65TE-F4842-00-00 CARRIER, REARCARRIER, REAR
-
79581P-08012-00 BOLT, FLANGEBOLT, FLANGE
-
85TE-F842A-00-00 COVER 5COVER 5
-
990119-06079-00 BOLT, WITH WASHERBOLT, WITH WASHER
