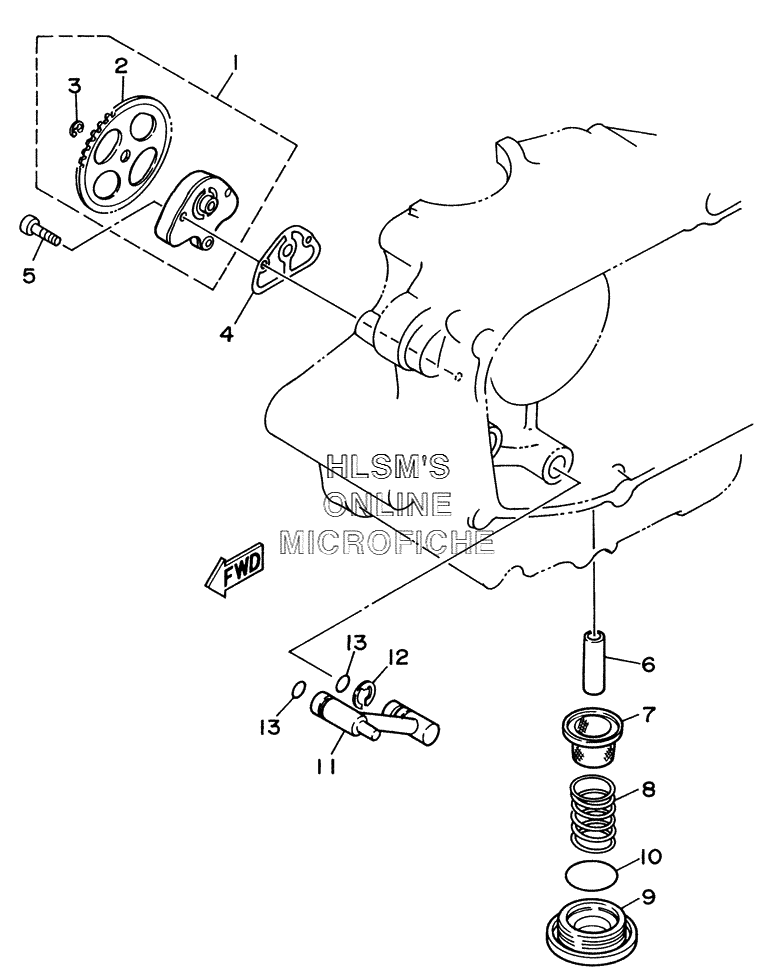

OIL PUMP для Yamaha BREEZE YFA1S - 2004 года выпуска`
-
№АртикулНазвание
-
13FA-13300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
23FA-13325-00-00 ...GEAR, PUMP DRIVEN...GEAR, PUMP DRIVEN
-
399001-05600-00 ...CIRCLIP...CIRCLIP
-
422F-13329-01-00 GASKET, PUMP COVERGASKET, PUMP COVER
-
590155-06007-00 SCREW, FLAT FILLISTERSCREW, FLAT FILLISTER
-
63Y1-13416-01-00 PIPE, OIL 1PIPE, OIL 1
-
751Y-13411-00-00 STRAINER, OILSTRAINER, OIL
-
890501-18576-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
930X-15351-00-00 PLUG, DRAINPLUG, DRAIN
-
1093210-347A1-00 O-RINGO-RING
-
113FA-13405-00-00 OIL PIPE COMP. 1OIL PIPE COMP. 1
-
1299001-10600-00 CIRCLIPCIRCLIP
-
1393210-08006-00 O-RINGO-RING
