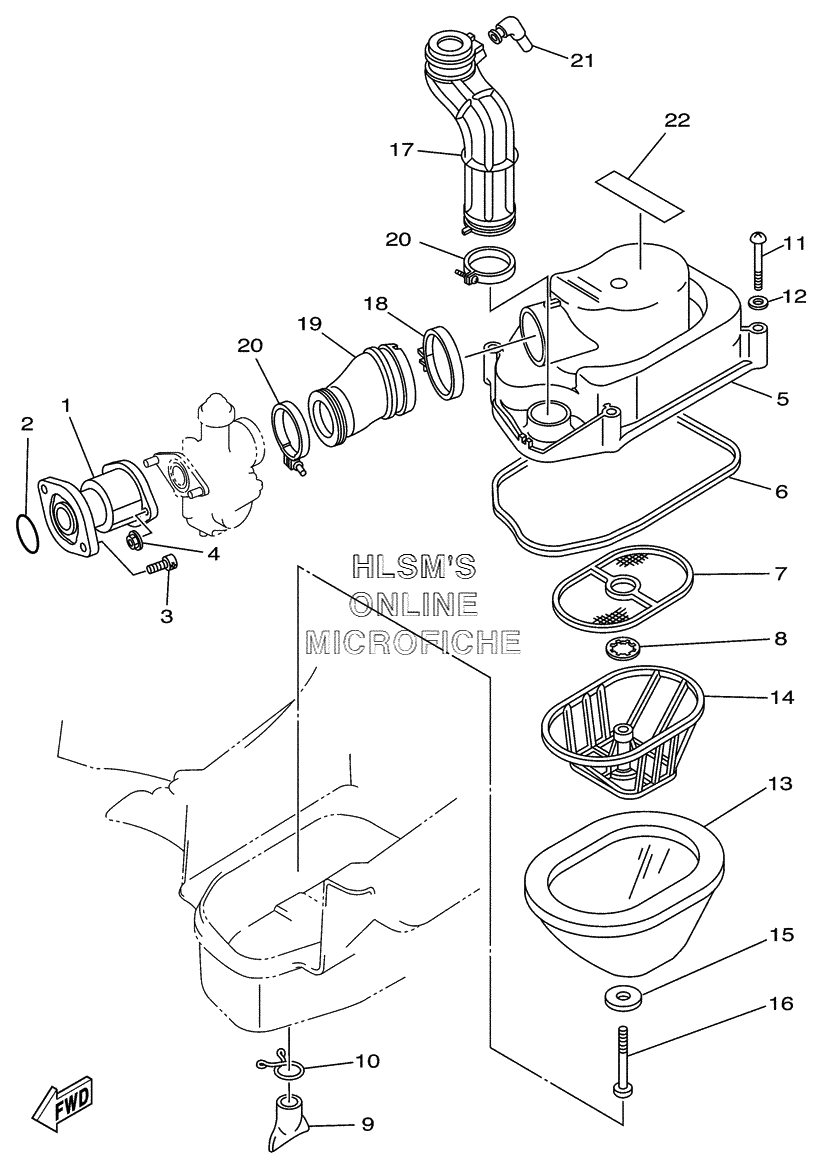

AIR CLEANER W/ INTAKE для Yamaha BREEZE YFA1S - 2004 года выпуска`
-
№АртикулНазвание
-
13FA-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
293210-30611-00 O-RINGO-RING
-
391317-06020-00 BOLTBOLT
-
495707-06500-00 NUT, FLANGENUT, FLANGE
-
53FA-14412-01-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
636F-14452-00-00 SEALSEAL
-
73FA-14472-00-00 PLATE, ELEMENTPLATE, ELEMENT
-
83FA-14424-00-00 CLIP, CAP FITTINGCLIP, CAP FITTING
-
959V-14457-00-00 SEALSEAL
-
1090467-22080-00 CLIPCLIP
-
1198507-05050-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1292907-05600-00 WASHER, PLATEWASHER, PLATE
-
132XJ-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
142XJ-14458-00-00 GUIDEGUIDE
-
1590209-06096-00 WASHERWASHER
-
1698507-06060-00 SCREW, PAN HEADSCREW, PAN HEAD
-
173FA-14437-00-00 DUCTDUCT
-
1890460-58124-00 CLAMP, HOSECLAMP, HOSE
-
193FA-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
2090450-45075-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
212NL-14419-00-00 PIPEPIPE
-
225VJ-2179T-10-00 PLATE, EPA 3 (CALIFORNIA)PLATE, EPA 3 (CALIFORNIA)
