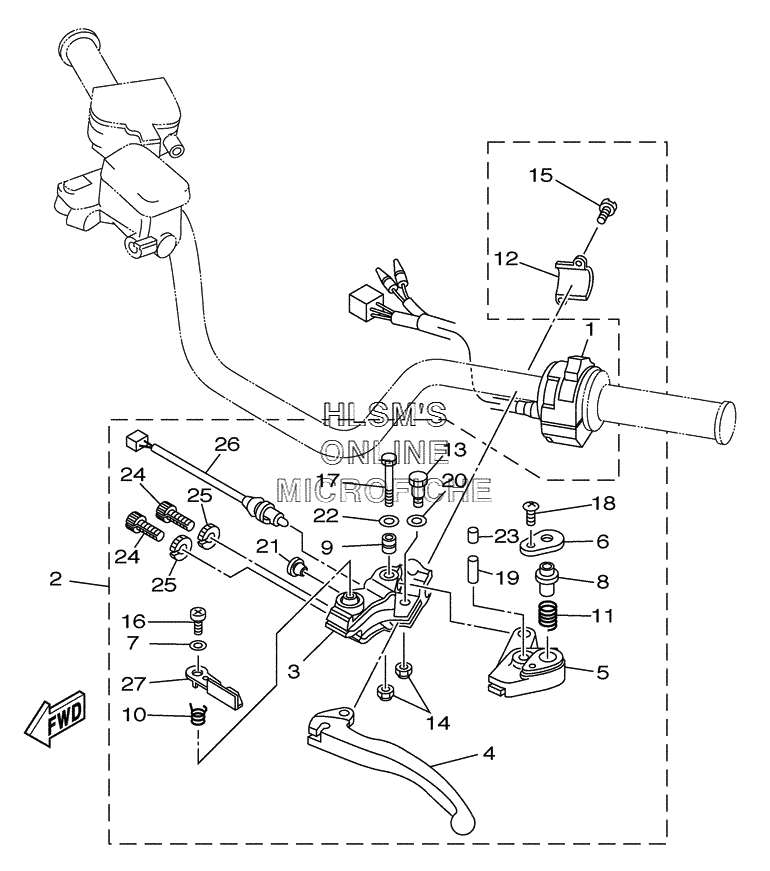

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha BLASTER YFS200S - 2004 года выпуска`
-
№АртикулНазвание
-
15KJ-83975-00-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
23GG-82910-20-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
35LP-82911-10-00 ...HOLDER, LEVER 1...HOLDER, LEVER 1
-
45LP-83912-00-00 ...LEVER 1...LEVER 1
-
55LP-83922-10-00 ...LEVER 2...LEVER 2
-
61UY-83935-10-00 ...COVER...COVER
-
75LP-83909-10-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
81UY-83967-10-00 ...PIN, LOCK 1...PIN, LOCK 1
-
91UY-83913-00-00 ...COLLAR, LEVER 1...COLLAR, LEVER 1
-
101UY-83966-00-00 ...SPRING, RETURN...SPRING, RETURN
-
111UY-83962-00-00 ...SPRING...SPRING
-
125LP-82913-10-00 ...HOLDER, LEVER LOWER 1...HOLDER, LEVER LOWER 1
-
132H7-83945-00-00 ...BOLT, LEVER...BOLT, LEVER
-
145LP-84126-10-00 ...NUT, LENS FITTING...NUT, LENS FITTING
-
155LP-83991-10-00 ...SCREW, LEVER 1...SCREW, LEVER 1
-
165LP-83925-10-00 ...SCREW, LEVER FITTING...SCREW, LEVER FITTING
-
175LP-8396X-10-00 ...SCREW, LEVER FITTING...SCREW, LEVER FITTING
-
185LP-83945-10-00 ...BOLT, LEVER...BOLT, LEVER
-
1991690-40022-00 ...PIN, SPRING...PIN, SPRING
-
205LP-8398X-10-00 ...WASHER, PLAIN...WASHER, PLAIN
-
2190338-12192-00 ...PLUG...PLUG
-
225LP-84127-10-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
231UY-83956-00-00 ...CAP 1...CAP 1
-
2490123-08046-00 ...BOLT...BOLT
-
2590179-08148-00 ...NUT...NUT
-
264KB-82917-00-00 ...SWITCH...SWITCH
-
274KB-W8393-00-00 ...LOCK, LEVER ASSY...LOCK, LEVER ASSY
