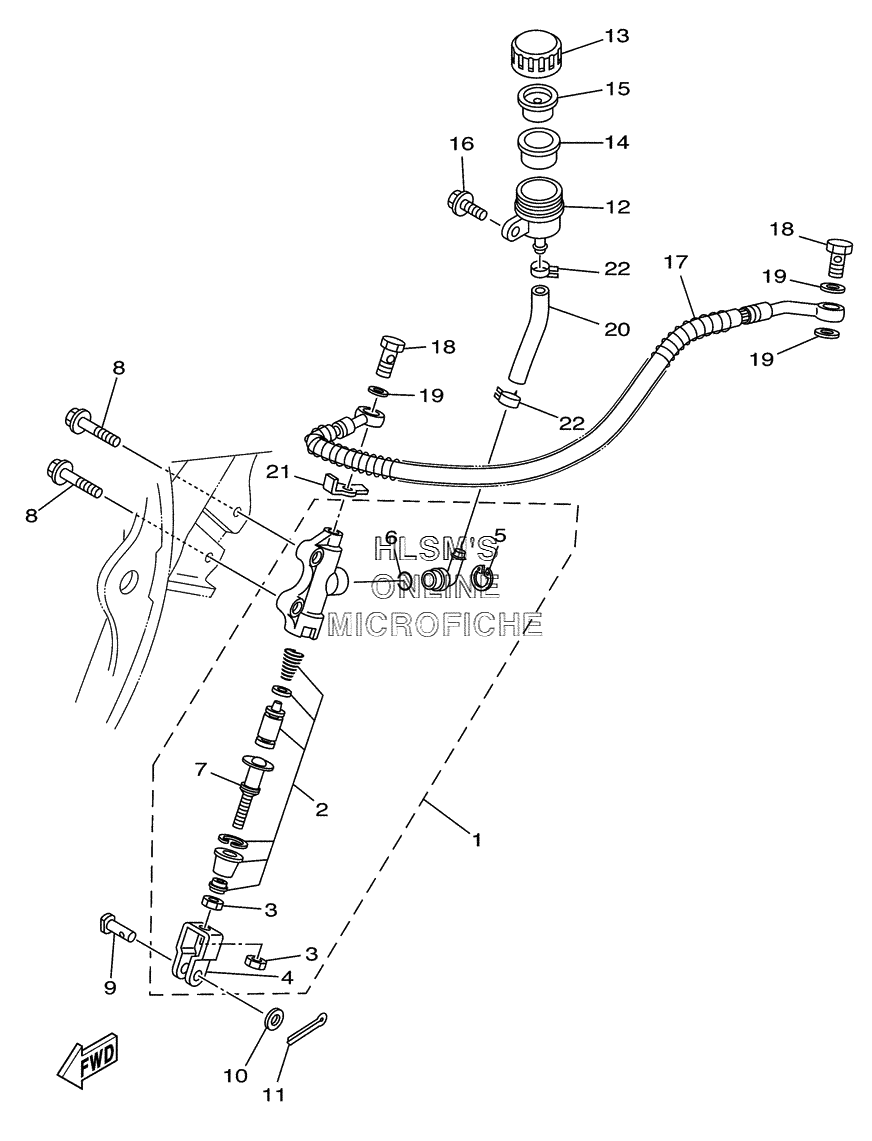

BRAKE - REAR MASTER CYLINDER для Yamaha BLASTER YFS200S - 2004 года выпуска`
-
№АртикулНазвание
-
15VM-2583V-00-00 RR. MASTER CYLINDER ASSY.RR. MASTER CYLINDER ASSY.
-
25VM-W0042-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
395302-08600-00 ...NUT...NUT
-
42YK-27222-00-00 ...JOINT...JOINT
-
52VN-25866-00-00 ...CIRCLIP...CIRCLIP
-
693210-15620-00 ...O-RING...O-RING
-
73KW-27234-00-00 ...PIN, BRAKE ROD...PIN, BRAKE ROD
-
895817-08020-00 BOLT, FLANGEBOLT, FLANGE
-
990240-08124-00 PIN, CLEVISPIN, CLEVIS
-
1090201-08083-00 WASHER, PLATEWASHER, PLATE
-
1191401-16012-00 PIN, COTTERPIN, COTTER
-
122VN-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
134PX-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
142VN-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
152VN-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
1695807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
175VM-25874-00-00 HOSE, BRAKEHOSE, BRAKE
-
1890401-10159-00 BOLT, UNIONBOLT, UNION
-
1990201-10118-00 WASHER, PLATEWASHER, PLATE
-
205VM-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
215LP-25844-00-00 WASHER, LOCKWASHER, LOCK
-
2290467-11044-00 CLIPCLIP
