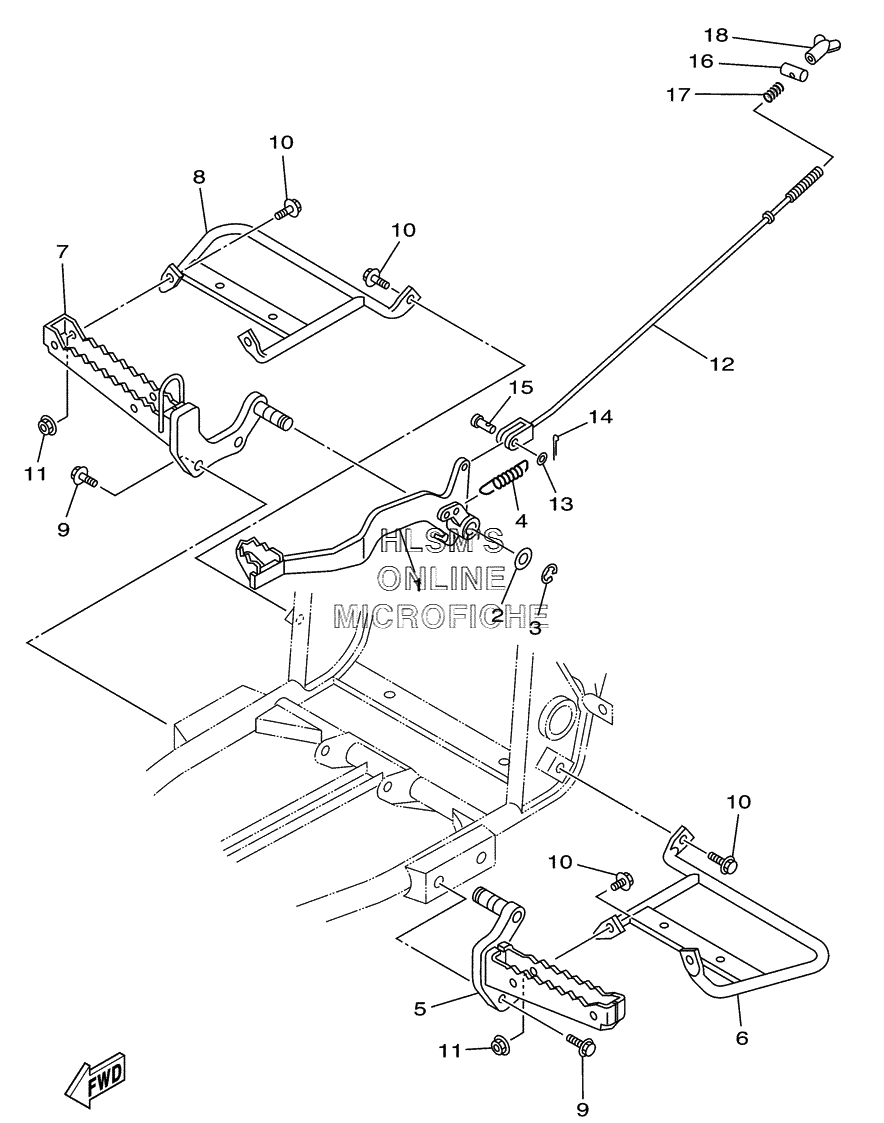

FOOTREST W/ BRAKE PEDAL для Yamaha BIG BEAR 400 YFM400NS - 2004 года выпуска`
-
№АртикулНазвание
-
15FU-F7211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
290201-15797-00 WASHER, PLATEWASHER, PLATE
-
393430-12008-00 CIRCLIPCIRCLIP
-
490506-16318-00 SPRING, TENSIONSPRING, TENSION
-
55FU-F7411-00-00 FOOTREST 1FOOTREST 1
-
65FU-F7445-00-00 PLATE 1PLATE 1
-
75FU-F7421-00-00 FOOTREST 2FOOTREST 2
-
85FU-F7446-00-00 PLATE 2PLATE 2
-
99581P-10022-00 BOLT, FLANGEBOLT, FLANGE
-
109581P-08016-00 BOLT, FLANGEBOLT, FLANGE
-
1195707-08500-00 NUT, FLANGENUT, FLANGE
-
125FU-27231-00-00 ROD, BRAKEROD, BRAKE
-
1392907-06200-00 WASHERWASHER
-
1491401-20012-00 PIN, COTTERPIN, COTTER
-
1590240-06076-00 PIN, CLEVISPIN, CLEVIS
-
1690249-12008-00 PINPIN
-
1790501-10245-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1820E-26343-00-00 NUT, ADJUSTINGNUT, ADJUSTING
