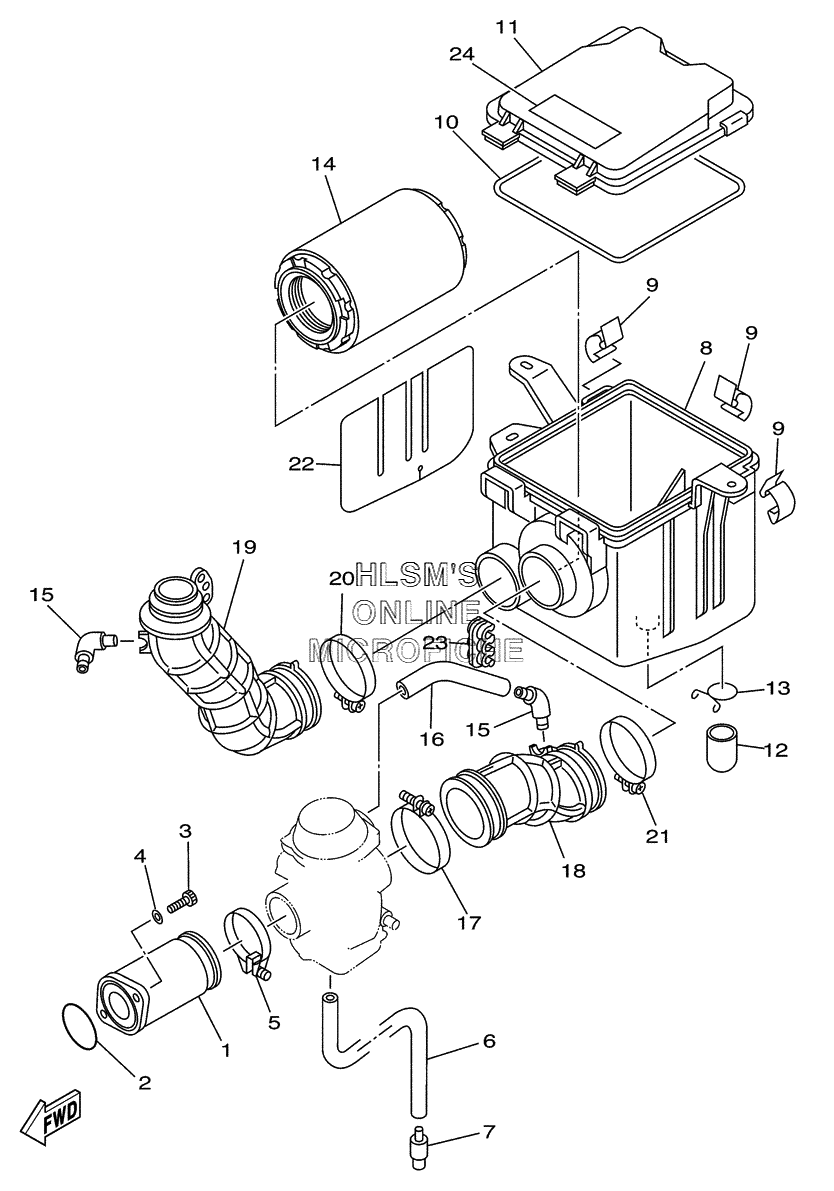

AIR CLEANER W/ INTAKE для Yamaha BIG BEAR 400 YFM400NS - 2004 года выпуска`
-
№АртикулНазвание
-
15FU-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
293210-44545-00 O-RINGO-RING
-
391317-08025-00 BOLTBOLT
-
490201-08085-00 WASHER, PLATEWASHER, PLATE
-
590450-47001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
624W-14193-00-00 PIPEPIPE
-
791A20-07010-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
84XE-E4411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
9JN6-E4424-00-00 CLIP, CAP FITTINGCLIP, CAP FITTING
-
104XE-E4462-00-00 SEALSEAL
-
114XE-E4412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
124XE-E4457-00-00 SEALSEAL
-
134XE-E4438-00-00 CLIP, DRAIN CLEANERCLIP, DRAIN CLEANER
-
144XE-E4450-00-00 ELEMENT ASSY, AIR CLEANERELEMENT ASSY, AIR CLEANER
-
1531A-14419-00-00 PIPEPIPE
-
1690445-158C1-00 HOSE (L110)HOSE (L110)
-
1790460-56105-00 CLAMP, HOSECLAMP, HOSE
-
185FU-E4453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
195FU-E4437-00-00 DUCTDUCT
-
2090460-58124-00 CLAMP, HOSECLAMP, HOSE
-
2190460-56105-00 CLAMP, HOSECLAMP, HOSE
-
224XE-E442F-00-00 PROTECTORPROTECTOR
-
2390468-15020-00 CLIPCLIP
-
245FU-2179T-20-00 PLATE, EPA 3 (CALIFORNIA)PLATE, EPA 3 (CALIFORNIA)
