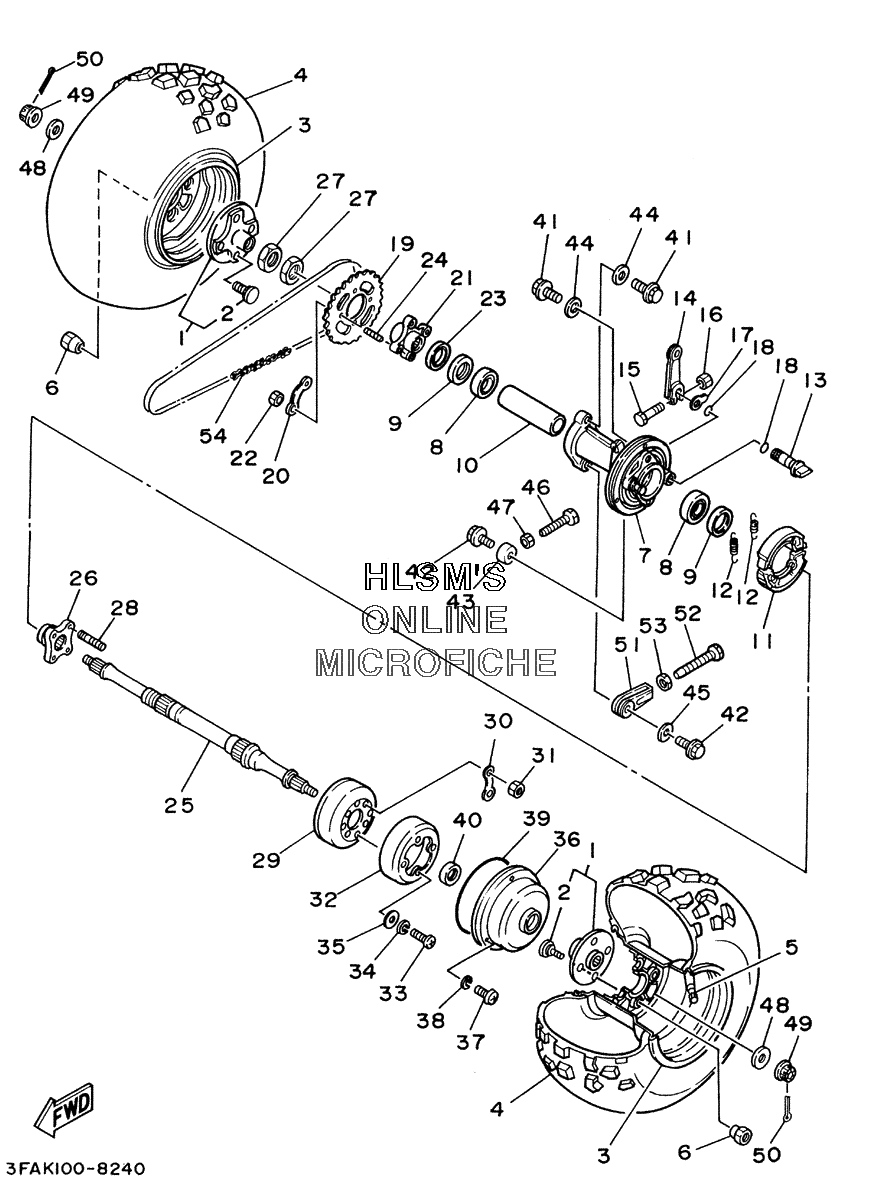

WHEEL - REAR W/ AXLE ASSY. для Yamaha BREEZE YFA1R (5VJ1) - 2003 года выпуска`
-
№АртикулНазвание
-
13FA-25383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
290114-10010-00 ...BOLT, SERRATION...BOLT, SERRATION
-
33FA-25390-00-35 REAR WHEEL COMP. (SILVER)REAR WHEEL COMP. (SILVER)
-
494110-086W8-00 TIRE (AT22X10-8*KT537A T/L N) (DUNLOP)TIRE (AT22X10-8*KT537A T/L N) (DUNLOP)
-
593900-00022-00 VALVE, RIM (TAIHEIYO)VALVE, RIM (TAIHEIYO)
-
690179-10540-00 NUTNUT
-
73FA-25311-00-00 HUB, REARHUB, REAR
-
893306-00705-00 BEARINGBEARING
-
993102-42260-00 OIL SEALOIL SEAL
-
103FA-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
113FA-W2536-00-00 BRAKE SHOE SETBRAKE SHOE SET
-
1290506-15260-00 SPRING, TENSIONSPRING, TENSION
-
1355X-25351-00-00 CAMSHAFTCAMSHAFT
-
142N3-25155-00-00 LEVER, CAMSHAFT 1LEVER, CAMSHAFT 1
-
1590101-06278-00 BOLTBOLT
-
1695307-06600-00 NUTNUT
-
1723F-2533A-00-00 PLATE, INDICATORPLATE, INDICATOR
-
1893210-14104-00 O-RINGO-RING
-
193FA-25432-20-00 SPROCKET, DRIVEN (32T)SPROCKET, DRIVEN (32T)
-
2010V-25412-00-00 WASHERWASHER
-
213FA-25386-00-00 COLLAR, SPROCKET AXLECOLLAR, SPROCKET AXLE
-
2290170-10219-00 NUTNUT
-
235V6-25367-00-00 COVER, HUB DUSTCOVER, HUB DUST
-
2490116-10483-00 BOLT, STUDBOLT, STUD
-
253FA-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
263FA-25343-00-00 BOSSBOSS
-
2790170-33376-00 NUTNUT
-
2890116-08507-00 BOLT, STUDBOLT, STUD
-
293FA-2531E-00-00 DRUM, BRAKEDRUM, BRAKE
-
30390-25412-01-00 WASHERWASHER
-
3195307-08600-00 NUTNUT
-
323FA-25336-00-00 RING 2RING 2
-
3398507-05010-00 SCREWSCREW
-
3492907-05100-00 WASHER, SPRINGWASHER, SPRING
-
3592907-05600-00 WASHER, PLATEWASHER, PLATE
-
3655X-25715-00-00 COVER 1COVER 1
-
3798507-06012-00 SCREWSCREW
-
3892907-06100-00 WASHER, SPRINGWASHER, SPRING
-
3993211-63688-00 O-RINGO-RING
-
4093102-35349-00 OIL SEALOIL SEAL
-
4190105-12573-00 BOLT, FLANGEBOLT, FLANGE
-
4290105-10585-00 BOLT, FLANGEBOLT, FLANGE
-
4390387-113W0-00 COLLARCOLLAR
-
4490201-120A5-00 WASHER, PLATEWASHER, PLATE
-
4590201-106F2-00 WASHER, PLATEWASHER, PLATE
-
4690101-08034-00 BOLTBOLT
-
4795307-08600-00 NUTNUT
-
4890201-14226-00 WASHER, PLATEWASHER, PLATE
-
4990171-14037-00 NUT, CASTLENUT, CASTLE
-
5091401-30030-00 PIN, COTTERPIN, COTTER
-
511UY-25388-00-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
5290101-08647-00 BOLTBOLT
-
5395307-08600-00 NUTNUT
-
5494582-02074-00 CHAIN (DID520V 74L)CHAIN (DID520V 74L)
