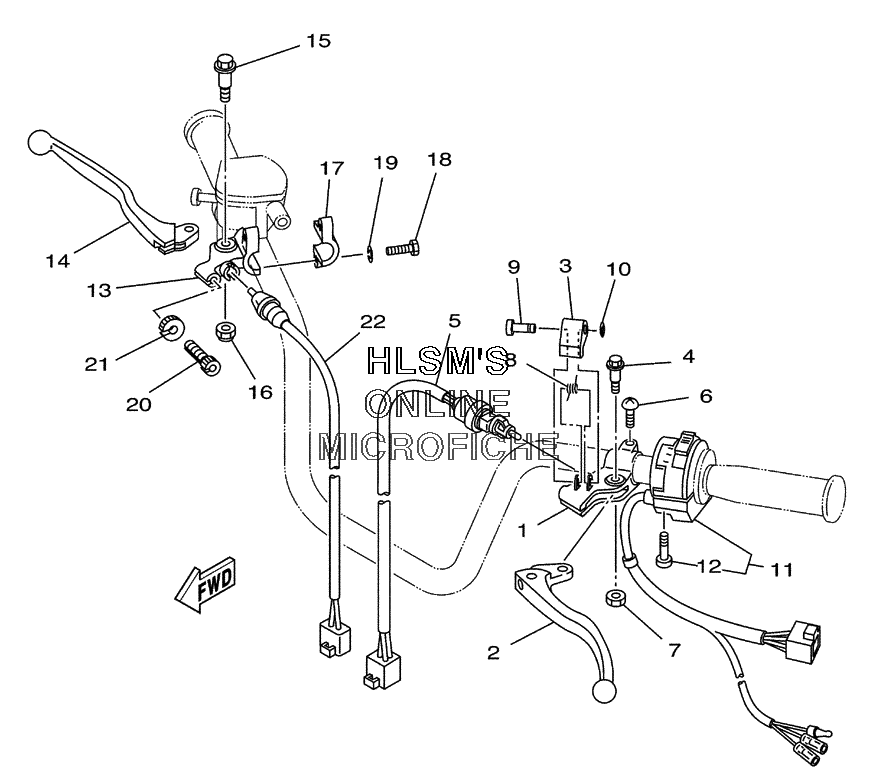

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha BREEZE YFA1R (5VJ1) - 2003 года выпуска`
-
№АртикулНазвание
-
13FA-82911-01-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
22HT-83912-00-00 LEVER 1LEVER 1
-
33FA-83965-00-00 LEVER, LOCKLEVER, LOCK
-
490109-06799-00 BOLTBOLT
-
53FA-83980-02-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
698507-06020-00 SCREWSCREW
-
795607-06100-00 NUT, UNUT, U
-
83FA-83966-00-00 SPRING, RETURNSPRING, RETURN
-
93FA-83967-00-00 PIN, LOCK 1PIN, LOCK 1
-
103FA-26466-00-00 RING, SNAPRING, SNAP
-
113FA-83973-20-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
1298506-05030-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
133JN-82921-00-00 HOLDER, LEVER 2HOLDER, LEVER 2
-
1459V-83922-00-00 LEVER 2LEVER 2
-
1590109-06799-00 BOLTBOLT
-
1695607-06100-00 NUT, UNUT, U
-
172XJ-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
1897027-06025-00 BOLTBOLT
-
1992907-06100-00 WASHER, SPRINGWASHER, SPRING
-
2090123-08046-00 BOLTBOLT
-
2190179-08148-00 NUTNUT
-
223FA-83980-10-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
