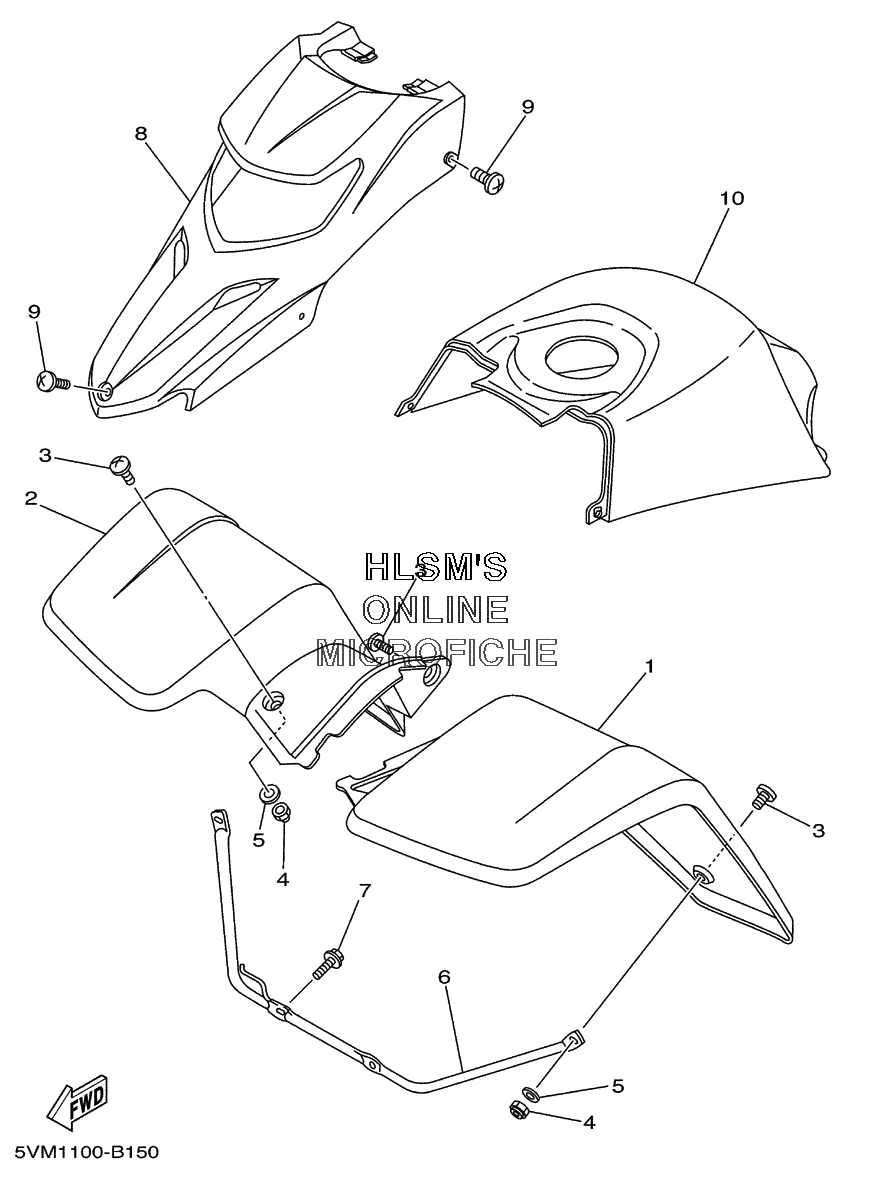

FENDER - FRONT для Yamaha BLASTER YFS200R (5VM1) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    2XJ-W2151-C1-00 FRONT FENDER COMP. (OPT) FOR DEEP PURPLISH BLUE (DPBSE)
    FRONT FENDER COMP. (OPT) FOR DEEP PURPLISH BLUE (DPBSE)
  • 1
    2XJ-W2151-81-00 FRONT FENDER COMP. (OPT) FOR YAMAHA BLACK (YB)
    FRONT FENDER COMP. (OPT) FOR YAMAHA BLACK (YB)
  • 2
    2XJ-21556-80-00 FENDER, FRONT 2 (OPT) FOR YAMAHA BLACK (YB)
    FENDER, FRONT 2 (OPT) FOR YAMAHA BLACK (YB)
  • 2
    2XJ-21556-C0-00 FENDER, FRONT 2 (OPT) FOR DEEP PURPLISH BLUE (DPBSE)
    FENDER, FRONT 2 (OPT) FOR DEEP PURPLISH BLUE (DPBSE)
  • 3
    90149-06306-00 SCREW
    SCREW
  • 4
    95607-06100-00 NUT, U
    NUT, U
  • 5
    92907-06200-00 WASHER
    WASHER
  • 6
    2XJ-21513-01-00 STAY, FENDER 1
    STAY, FENDER 1
  • 7
    95827-06012-00 BOLT, FLANGE
    BOLT, FLANGE
  • 8
    5VM-23391-00-00 PANEL, FRONT (OPT) FOR DEEP PURPLISH BLUE (DPBSE)
    PANEL, FRONT (OPT) FOR DEEP PURPLISH BLUE (DPBSE)
  • 8
    5VM-23391-10-00 PANEL, FRONT (OPT) FOR YAMAHA BLACK (YB)
    PANEL, FRONT (OPT) FOR YAMAHA BLACK (YB)
  • 9
    90154-05002-00 SCREW, BINDING
    SCREW, BINDING
  • 10
    2XJ-2171A-90-00 COVER, TOP (OPT) FOR YAMAHA BLACK (YB)
    COVER, TOP (OPT) FOR YAMAHA BLACK (YB)
  • 10
    2XJ-2171A-C0-00 COVER, TOP (OPT) FOR DEEP PURPLISH BLUE (DPBSE)
    COVER, TOP (OPT) FOR DEEP PURPLISH BLUE (DPBSE)
