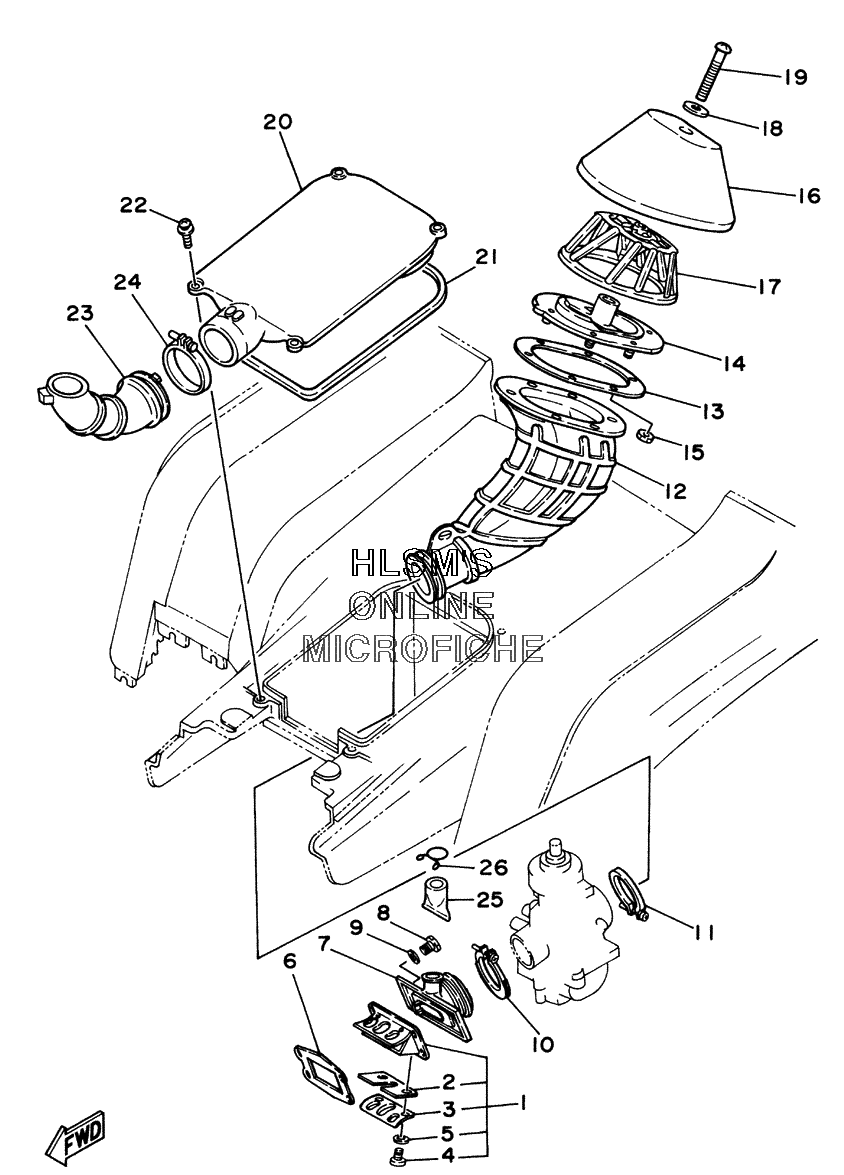

AIR CLEANER W/ INTAKE для Yamaha BLASTER YFS200R (5VM1) - 2003 года выпуска
-
№АртикулНазвание
-
12HF-13610-01-00 REED VALVE ASSYREED VALVE ASSY
-
22HF-13613-00-00 ...REED, VALVE...REED, VALVE
-
358T-13616-01-00 ...STOPPER, REED VALVE...STOPPER, REED VALVE
-
498517-03008-00 ...SCREW...SCREW
-
592907-03100-00 ...WASHER, SPRING...WASHER, SPRING
-
63JM-13621-00-00 GASKET, VALVE SEATGASKET, VALVE SEAT
-
72XJ-13565-00-00 JOINT, CARBURETORJOINT, CARBURETOR
-
897007-06025-00 BOLTBOLT
-
992907-06600-00 WASHER, PLATEWASHER, PLATE
-
1090450-44046-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1190460-49058-00 CLAMP, HOSECLAMP, HOSE
-
122XJ-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
132XJ-14477-00-00 PLATEPLATE
-
142XJ-14459-00-00 HOLDER, GUIDEHOLDER, GUIDE
-
1595607-05100-00 NUT, UNUT, U
-
162XJ-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
172XJ-14458-00-00 GUIDEGUIDE
-
1890209-06096-00 WASHERWASHER
-
1998507-06060-00 SCREWSCREW
-
202XJ-14412-01-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
2115A-14462-00-00 SEALSEAL
-
2290159-06085-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
232XJ-14437-00-00 DUCTDUCT
-
2490460-56105-00 CLAMP, HOSECLAMP, HOSE
-
2559V-14457-00-00 SEALSEAL
-
2690467-22080-00 CLIPCLIP
