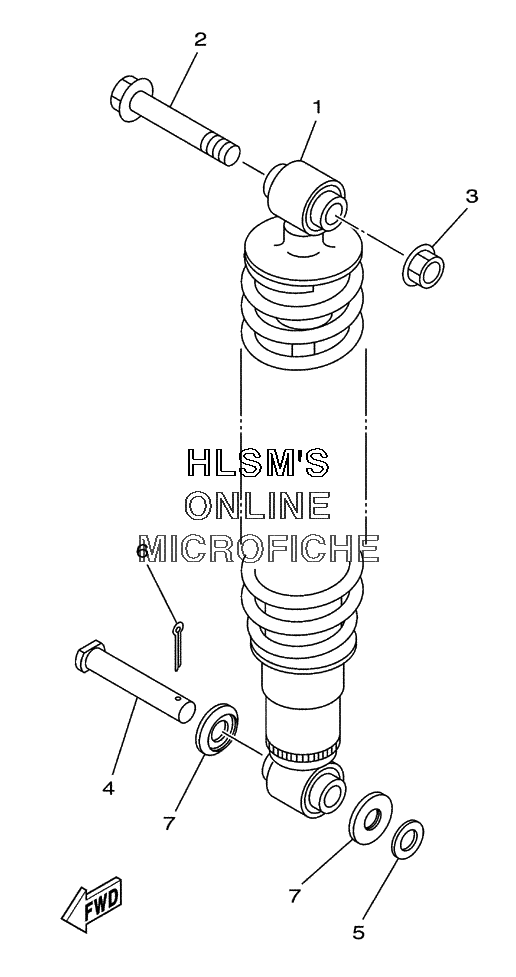

SUSPENSION - REAR SHOCK ABSORBER для Yamaha BEAR TRACKER YFM25XR (4XEH) - 2003 года выпуска`
-
№АртикулНазвание
-
14XE-F2210-10-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
290105-12889-00 BOLT, FLANGEBOLT, FLANGE
-
390185-12072-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
490240-12092-00 PIN, CLEVISPIN, CLEVIS
-
590201-127J6-00 WASHER, PLATEWASHER, PLATE
-
691401-30025-00 PIN, COTTERPIN, COTTER
-
71W1-22128-00-00 COVER, THRUST 1COVER, THRUST 1
