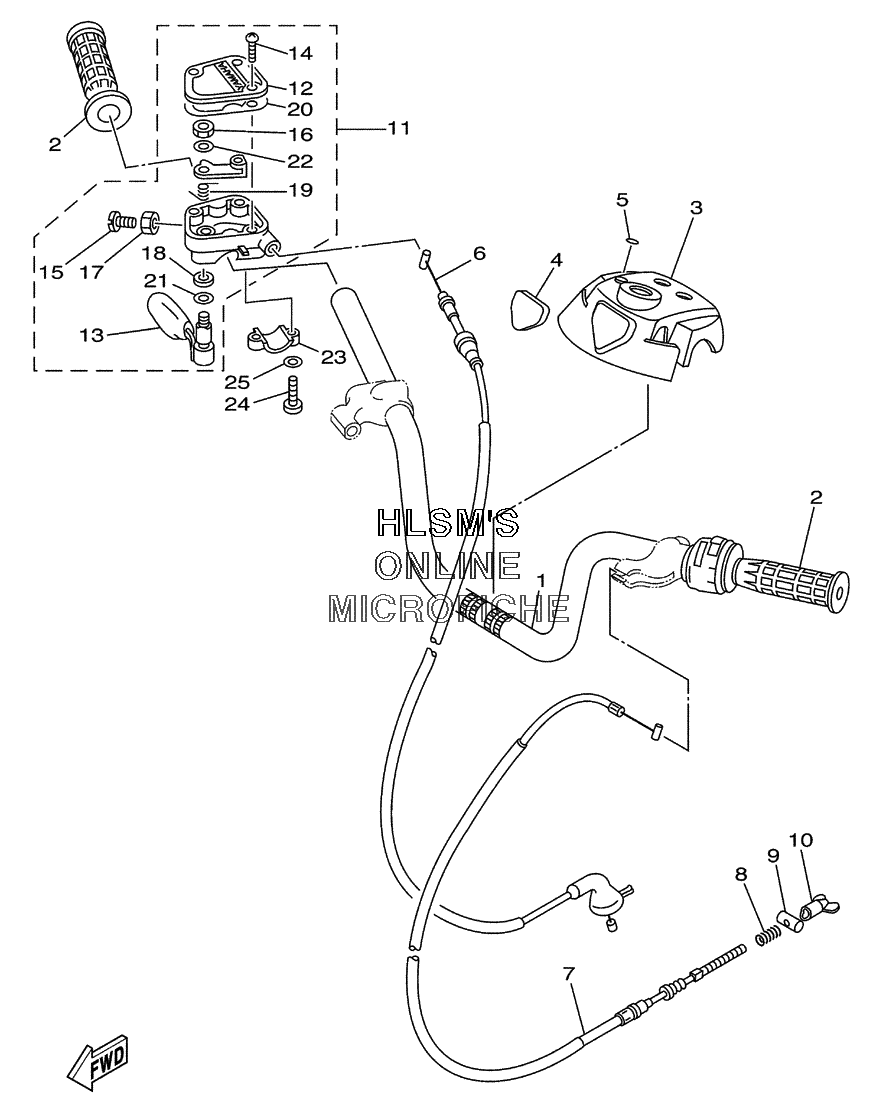

HANDLEBAR W/ CABLES для Yamaha BEAR TRACKER YFM25XR (4XEH) - 2003 года выпуска`
-
№АртикулНазвание
-
14XE-F6111-00-00 HANDLEBARHANDLEBAR
-
25FU-F6241-00-00 GRIPGRIP
-
34XE-F6124-10-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
45FU-F6232-00-00 EMBLEM 3DEMBLEM 3D
-
55FU-F836B-00-00 TUNING FORK MARKTUNING FORK MARK
-
64KB-26311-11-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
74XE-26341-00-00 CABLE, BRAKECABLE, BRAKE
-
890501-10782-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
990249-12008-00 PINPIN
-
1020E-26343-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
114KB-26250-00-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
124KB-2628F-00-00 ...CAP, GEAR...CAP, GEAR
-
131NV-2625G-01-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
1490149-04278-00 ...SCREW...SCREW
-
1598507-05020-00 ...SCREW...SCREW
-
1695607-05100-00 ...NUT, U...NUT, U
-
1795307-05700-00 ...NUT...NUT
-
1893104-09025-00 ...OIL SEAL...OIL SEAL
-
191NV-26304-00-00 ...SPRING...SPRING
-
204KB-2628G-00-00 ...GASKET...GASKET
-
211NV-26129-00-00 ...WASHER...WASHER
-
221NV-26398-00-00 ...WASHER...WASHER
-
234V4-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
2498507-05020-00 SCREWSCREW
-
2592907-05600-00 WASHER, PLATEWASHER, PLATE
