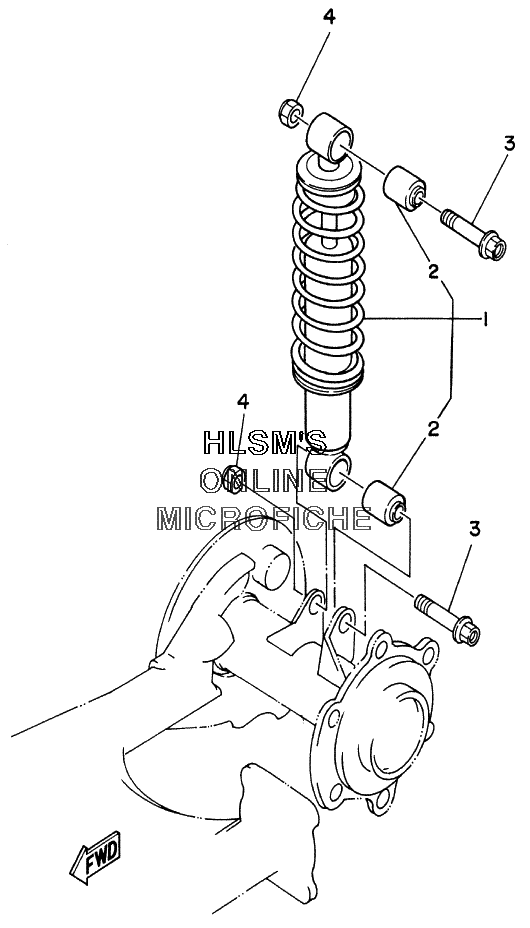

SUSPENSION - REAR SHOCK ABSORBER для Yamaha RAPTOR 80 YFM80WP (5TH1) - 2002 года выпуска
-
№АртикулНазвание
-
13GB-22210-00-36 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
259V-22216-00-00 ......BUSH, REAR SHOCK ABSORBER......BUSH, REAR SHOCK ABSORBER
-
390105-10388-00 BOLT, FLANGEBOLT, FLANGE
-
490185-10091-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
