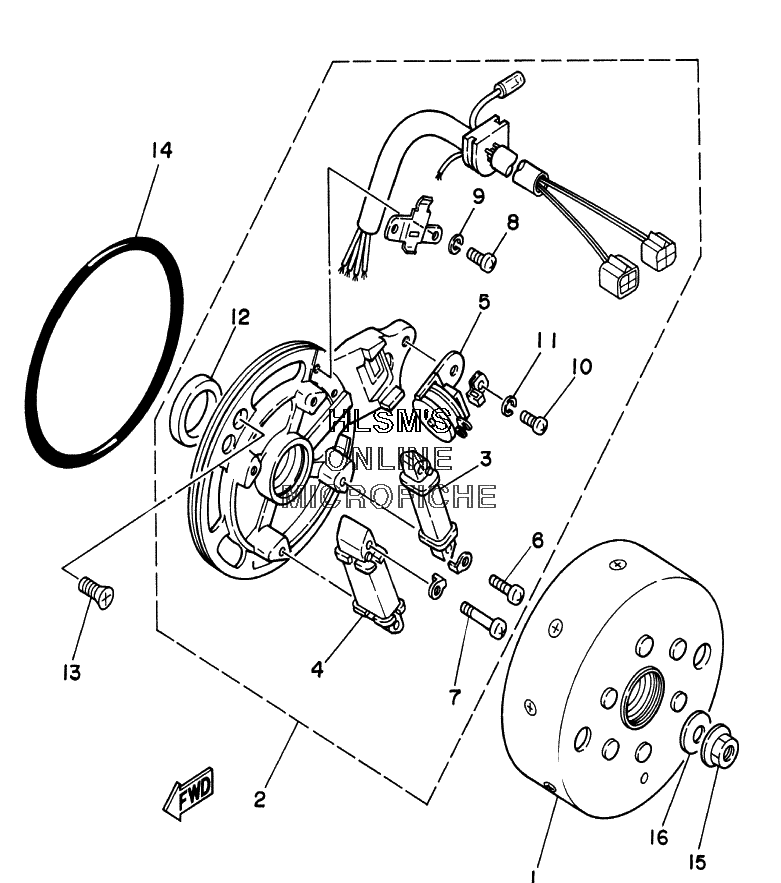

GENERATOR для Yamaha RAPTOR 80 YFM80WP (5TH1) - 2002 года выпуска`
-
№АртикулНазвание
-
12FM-85550-M0-00 ROTOR ASSYROTOR ASSY
-
24EM-85560-10-00 BASE ASSYBASE ASSY
-
35G3-85520-M1-00 ......COIL, CHARGE......COIL, CHARGE
-
455X-81313-M0-00 ......COIL, LIGHTING 1......COIL, LIGHTING 1
-
522K-85595-M0-00 ......COIL, PULSER......COIL, PULSER
-
698511-04012-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
798511-04020-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
898501-04006-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
992901-04100-00 ......WASHER, SPRING......WASHER, SPRING
-
1098501-05010-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
1192901-05100-00 ......WASHER, SPRING......WASHER, SPRING
-
1293102-19276-00 ......OIL SEAL......OIL SEAL
-
1398707-06016-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
1493211-02703-00 O-RINGO-RING
-
1590179-10394-00 NUTNUT
-
1690201-101A4-00 WASHER, PLATEWASHER, PLATE
