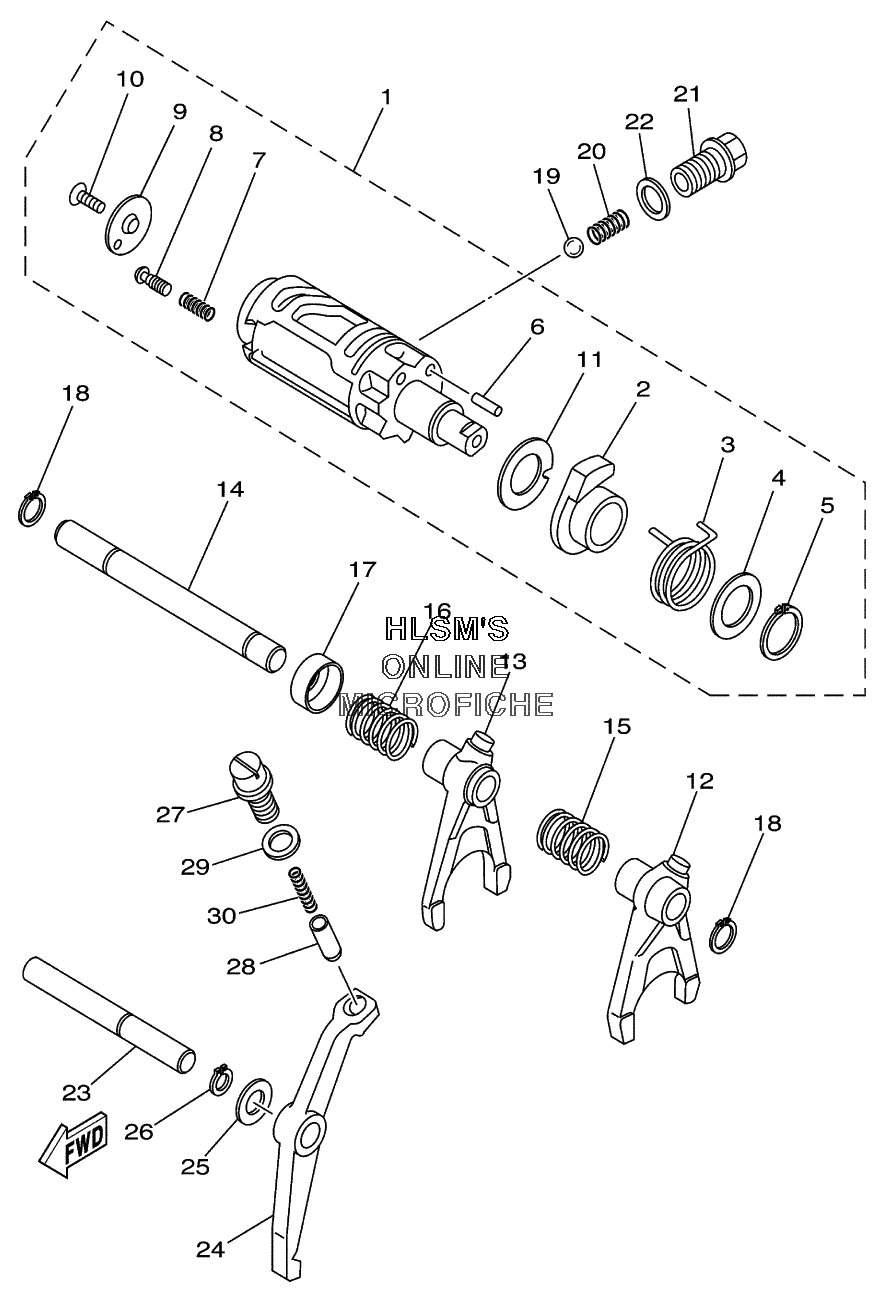

SHIFT CAM - FORK для Yamaha GRIZZLY HUNTER EDITION YFM660FHP (5KM5) - 2002 года выпуска
-
№АртикулНазвание
-
15KM-18540-00-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
25KM-18171-00-00 ......CAM, LEVER......CAM, LEVER
-
390508-32018-00 ......SPRING, TORSION......SPRING, TORSION
-
490201-20792-00 ......WASHER, PLATE......WASHER, PLATE
-
593410-20038-00 ......CIRCLIP......CIRCLIP
-
693604-18100-00 ......PIN, DOWEL......PIN, DOWEL
-
790501-06022-00 ......SPRING, COMPRESSION......SPRING, COMPRESSION
-
85KM-18542-00-00 ......POINT, NEUTRAL......POINT, NEUTRAL
-
94UN-18566-00-00 ......PLATE, SIDE 2......PLATE, SIDE 2
-
1090149-05321-00 ...SCREW...SCREW
-
115KM-18331-00-00 ......PLATE, SHIFT CAM......PLATE, SHIFT CAM
-
125KM-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
135KM-18512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
145KM-18531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
1590501-12016-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1690501-16002-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
175KM-18323-00-00 CAP, SPRINGCAP, SPRING
-
1899009-12400-00 CIRCLIPCIRCLIP
-
1993503-08007-00 BALLBALL
-
2090501-10353-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2190105-14367-00 BOLT, FLANGEBOLT, FLANGE
-
2290430-14194-00 GASKETGASKET
-
235KM-18318-00-00 ...SHAFT, SHIFTER...SHAFT, SHIFTER
-
245KM-18148-00-00 LEVER, STOPPERLEVER, STOPPER
-
2590201-127J6-00 WASHER, PLATEWASHER, PLATE
-
2699009-12400-00 CIRCLIPCIRCLIP
-
2790149-14001-00 SCREWSCREW
-
281J7-18547-00-00 STOPPER, CAMSTOPPER, CAM
-
2990430-14043-00 GASKETGASKET
-
3090501-12004-00 SPRING, COMPRESSIONSPRING, COMPRESSION
