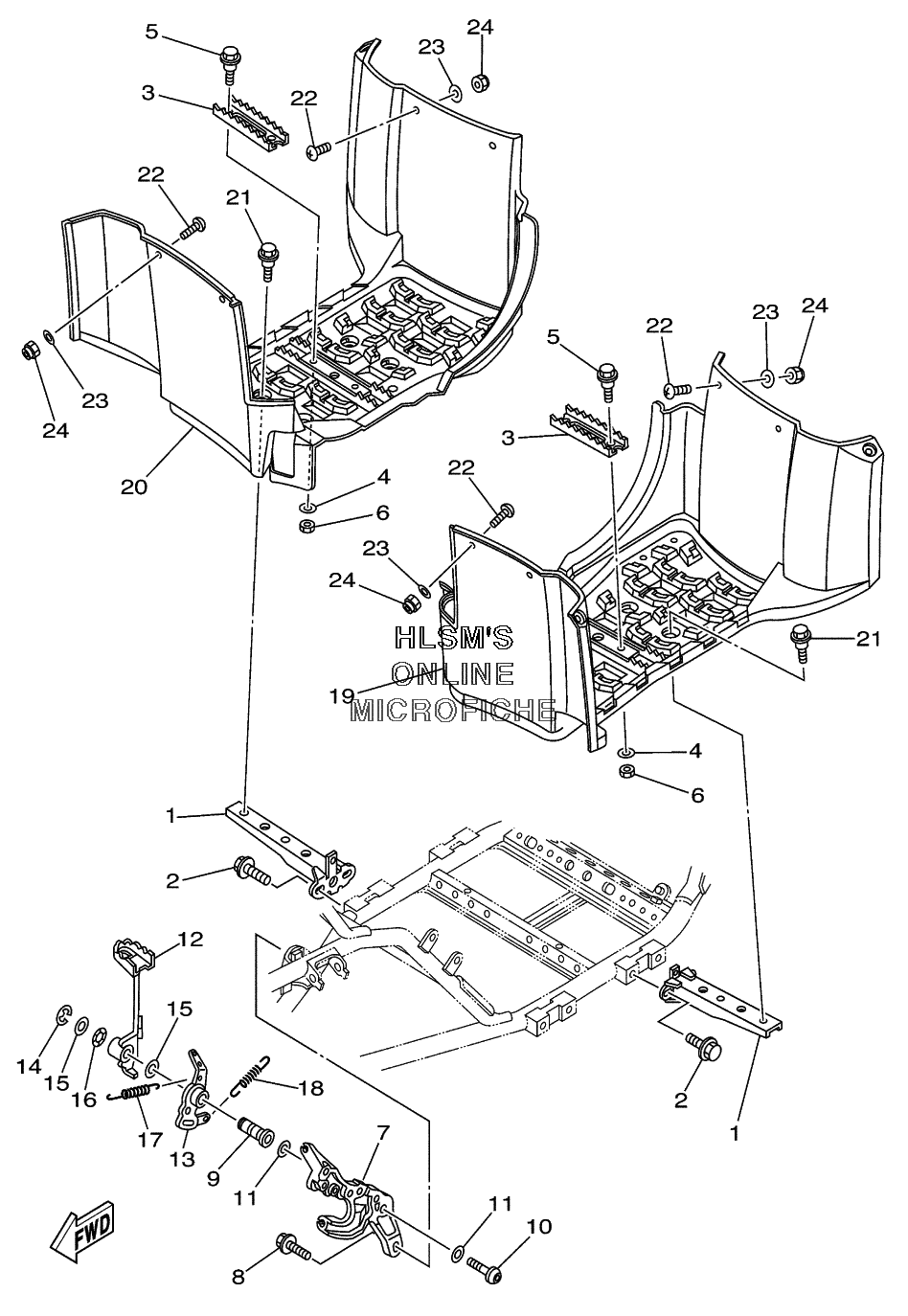

FOOTREST W/ BRAKE PEDAL для Yamaha GRIZZLY HUNTER EDITION YFM660FHP (5KM5) - 2002 года выпуска`
-
№АртикулНазвание
-
15KM-27481-00-00 BOARD, FOOTRESTBOARD, FOOTREST
-
295817-08012-00 BOLT, FLANGEBOLT, FLANGE
-
35GH-2741A-00-00 ARM 1ARM 1
-
490201-06071-00 WASHER, PLATEWASHER, PLATE
-
590109-063F5-00 BOLTBOLT
-
695317-06600-00 NUTNUT
-
75KM-27263-00-00 BRACKET 1BRACKET 1
-
895817-08025-00 BOLT, FLANGEBOLT, FLANGE
-
95KM-27212-00-00 SHAFT, BRAKE PEDALSHAFT, BRAKE PEDAL
-
1090149-08296-00 BOLT,BUTTONBOLT,BUTTON
-
1190201-08784-00 WASHER, PLATEWASHER, PLATE
-
125KM-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
135KM-27252-00-00 LEVER, BRAKE PEDALLEVER, BRAKE PEDAL
-
1493430-10015-00 CIRCLIPCIRCLIP
-
1590201-144J2-00 WASHER, PLATEWASHER, PLATE
-
1690206-14086-00 WASHER, WAVEWASHER, WAVE
-
1790506-16318-00 SPRING, TENSIONSPRING, TENSION
-
1890506-12441-00 SPRING, TENSIONSPRING, TENSION
-
195KM-27453-00-00 COVER 1COVER 1
-
205KM-27463-00-00 COVER 2COVER 2
-
2190109-063F1-00 BOLTBOLT
-
2290154-05005-00 SCREW, BINDINGSCREW, BINDING
-
2390201-05029-00 WASHER, PLATEWASHER, PLATE
-
2495707-05300-00 NUT, FLANGENUT, FLANGE
