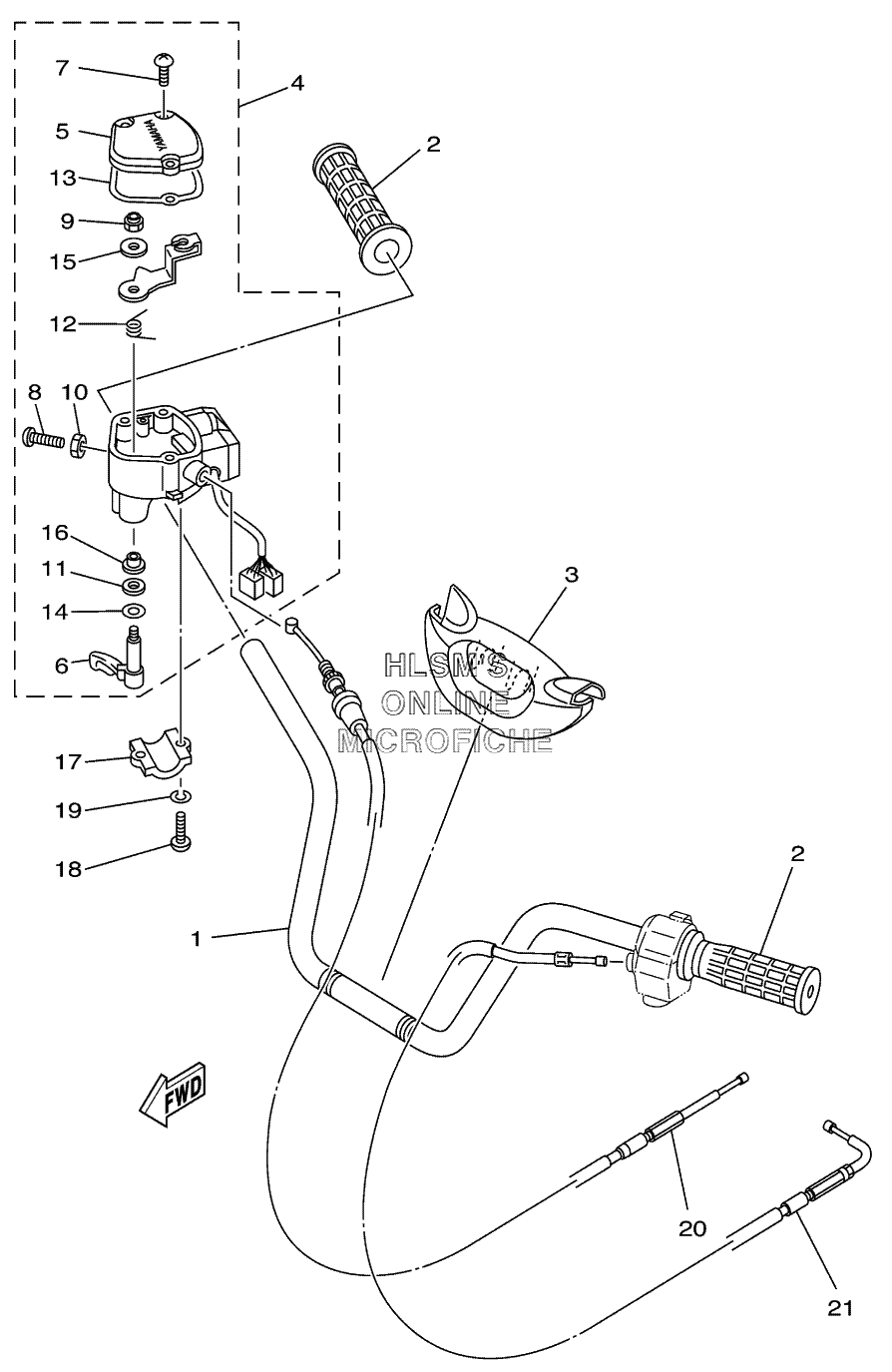

HANDLEBAR W/ THROTTLE - CABLE для Yamaha GRIZZLY 660 YFM660FP (5KM1) - 2002 года выпуска
-
№АртикулНазвание
-
15KM-26111-00-00 HANDLEBARHANDLEBAR
-
23GB-26241-00-00 GRIPGRIP
-
35KM-26124-00-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
45KM-26250-00-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
54KB-2628F-10-00 ......CAP, GEAR......CAP, GEAR
-
61NV-2625G-01-00 ......LEVER, THROTTLE......LEVER, THROTTLE
-
790149-04278-00 ...SCREW, SPEC'L SHAPE...SCREW, SPEC'L SHAPE
-
898507-05020-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
995607-05100-00 ......NUT, U......NUT, U
-
1095307-05700-00 ...NUT...NUT
-
1193104-09025-00 ......OIL SEAL......OIL SEAL
-
121NV-26304-00-00 ......SPRING......SPRING
-
134KB-2628G-00-00 ......GASKET......GASKET
-
141NV-26129-00-00 ......WASHER......WASHER
-
151NV-26398-00-00 ......WASHER......WASHER
-
161NV-2625K-00-00 ......COLLAR......COLLAR
-
174V4-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
1898507-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1992907-05100-00 WASHER, SPRINGWASHER, SPRING
-
205KM-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
215KM-26331-00-00 CABLE, STARTER 1CABLE, STARTER 1
