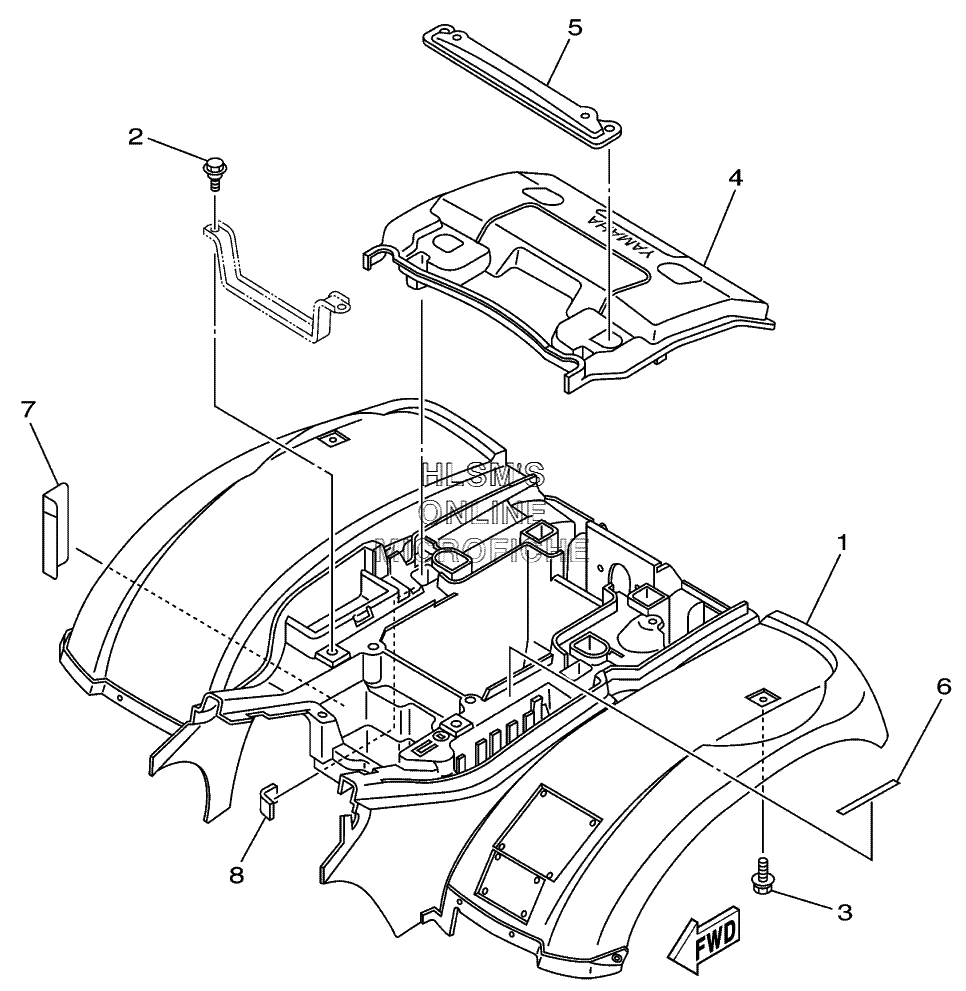

FENDER - REAR для Yamaha GRIZZLY 660 YFM660FP (5KM1) - 2002 года выпуска`
-
№АртикулНазвание
-
15KM-W2161-00-00 REAR FENDER COMP (PASTEL DEEP GREEN)REAR FENDER COMP (PASTEL DEEP GREEN)
-
15KM-W2161-10-00 REAR FENDER COMP (ROMANTIQUE ROUGE)REAR FENDER COMP (ROMANTIQUE ROUGE)
-
15KM-W2161-20-00 REAR FENDER COMP (DARK GRAYISH YELLOW SOLID 1)REAR FENDER COMP (DARK GRAYISH YELLOW SOLID 1)
-
290109-060F3-00 BOLTBOLT
-
390119-06056-00 BOLT,HEXAGONBOLT,HEXAGON
-
45KM-2160F-00-00 LID (PASTEL DEEP GREEN)LID (PASTEL DEEP GREEN)
-
45KM-2160F-10-00 LID (ROMANTIQUE ROUGE)LID (ROMANTIQUE ROUGE)
-
45KM-2160F-20-00 LID (DARK GRAYISH YELLOW SOLID 1)LID (DARK GRAYISH YELLOW SOLID 1)
-
55KM-21613-00-00 STAY, FENDER 1STAY, FENDER 1
-
64CY-28218-00-00 SEAL 1SEAL 1
-
75GH-2163E-00-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
85KM-21652-10-00 PROTECTORPROTECTOR
