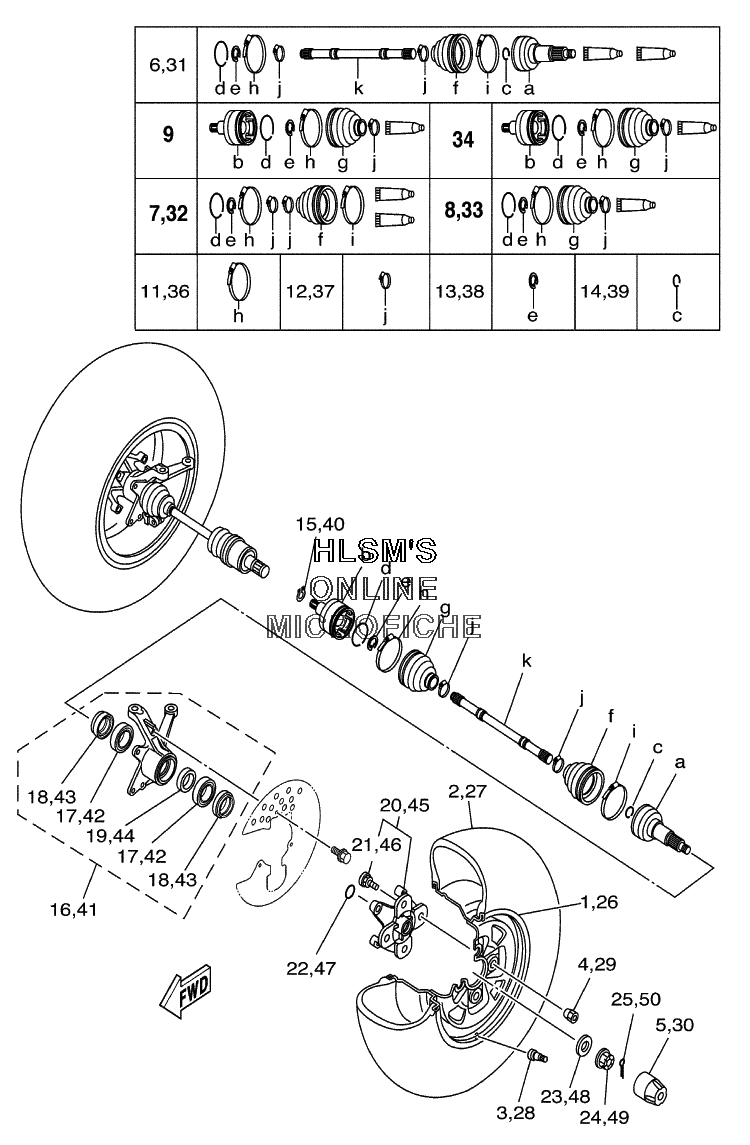

WHEEL - FRONT W/ CV JOINT для Yamaha GRIZZLY 660 MELALLIC SILVER YFM660FPS (5KM6) - 2002 года выпуска
-
№АртикулНазвание
-
15KM-25180-00-00 WHEEL COMPWHEEL COMP
-
294108-12009-00 TIRE (AT 25X8-12, KT131-T/L)TIRE (AT 25X8-12, KT131-T/L)
-
393900-00030-00 VALVE, RIMVALVE, RIM
-
490179-10007-00 NUTNUT
-
55GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
65KM-2510F-00-00 BALL JOINT SETBALL JOINT SET
-
75KM-2510G-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
85KM-2510H-00-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
95KM-2510J-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
103HN-2511G-01-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
114KB-2511H-00-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
123HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
132HR-2512J-00-00 SNAP RINGSNAP RING
-
144KB-2512H-00-00 CIRCLIPCIRCLIP
-
155KM-45531-00-00 CLIP, DRIVE SHAFTCLIP, DRIVE SHAFT
-
165KM-23501-00-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
1793306-00615-00 ......BEARING......BEARING
-
1893106-38047-00 ......OIL SEAL......OIL SEAL
-
1990560-30325-00 ......SPACER......SPACER
-
205KM-25111-00-00 HUB, FRONTHUB, FRONT
-
2190114-10010-00 ......BOLT, SERRATION......BOLT, SERRATION
-
2293210-27666-00 O-RINGO-RING
-
2390201-162L6-00 WASHER, PLATEWASHER, PLATE
-
2490171-16001-00 NUT, CASTLENUT, CASTLE
-
2591490-30030-00 PIN, COTTERPIN, COTTER
-
265KM-25180-00-00 WHEEL COMPWHEEL COMP
-
2794108-12009-00 TIRE (AT 25X8-12, KT131-T/L)TIRE (AT 25X8-12, KT131-T/L)
-
2893900-00030-00 VALVE, RIMVALVE, RIM
-
2990179-10007-00 NUTNUT
-
305GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
315KM-2510F-00-00 BALL JOINT SETBALL JOINT SET
-
325KM-2510G-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
335KM-2510H-00-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
345KM-2510J-10-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
353HN-2511G-01-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
364KB-2511H-00-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
373HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
382HR-2512J-00-00 SNAP RINGSNAP RING
-
394KB-2512H-00-00 CIRCLIPCIRCLIP
-
4093450-22119-00 CIRCLIPCIRCLIP
-
415KM-23502-00-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
4293306-00615-00 ......BEARING......BEARING
-
4393106-38047-00 ......OIL SEAL......OIL SEAL
-
4490560-30325-00 ......SPACER......SPACER
-
455KM-25111-00-00 HUB, FRONTHUB, FRONT
-
4690114-10010-00 ......BOLT, SERRATION......BOLT, SERRATION
-
4793210-27666-00 O-RINGO-RING
-
4890201-162L6-00 WASHER, PLATEWASHER, PLATE
-
4990171-16001-00 NUT, CASTLENUT, CASTLE
-
5091490-30030-00 PIN, COTTERPIN, COTTER
