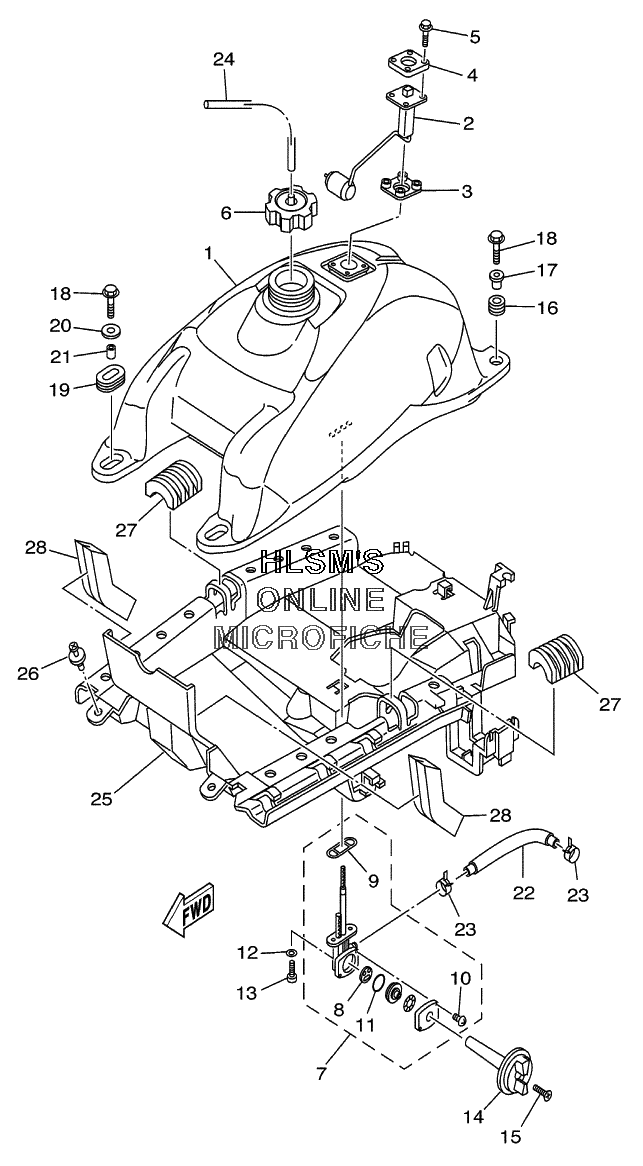

FUEL TANK для Yamaha GRIZZLY 660 MELALLIC SILVER YFM660FPS (5KM6) - 2002 года выпуска
-
№АртикулНазвание
-
15KM-24110-00-00 FUEL TANK COMPFUEL TANK COMP
-
25KM-85752-00-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
34US-85753-00-00 GASKET, SENDER UNITGASKET, SENDER UNIT
-
42JG-85757-00-00 RETAINERRETAINER
-
590119-05071-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
65KM-24610-00-00 CAP ASSYCAP ASSY
-
75KM-24500-00-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
83AJ-24523-00-00 ......VALVE PACKING......VALVE PACKING
-
93AJ-24534-00-00 ......SEAL, COCK......SEAL, COCK
-
1098507-03014-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
114X8-24512-00-00 ...GASKET...GASKET
-
1290202-05193-00 WASHER, PLATEWASHER, PLATE
-
1390149-06011-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
145GH-24524-00-00 LEVER, COCKLEVER, COCK
-
1598707-04018-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
1690480-18290-00 GROMMETGROMMET
-
1790387-066J1-00 COLLARCOLLAR
-
1895807-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1990480-01400-00 GROMMETGROMMET
-
2090201-060L5-00 WASHER, PLATEWASHER, PLATE
-
2190387-07598-00 COLLARCOLLAR
-
225KM-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
2390467-12053-00 CLIPCLIP
-
2490445-084J1-00 HOSE (L420)HOSE (L420)
-
255KM-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
2690269-06002-00 RIVETRIVET
-
275KM-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
285KM-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
