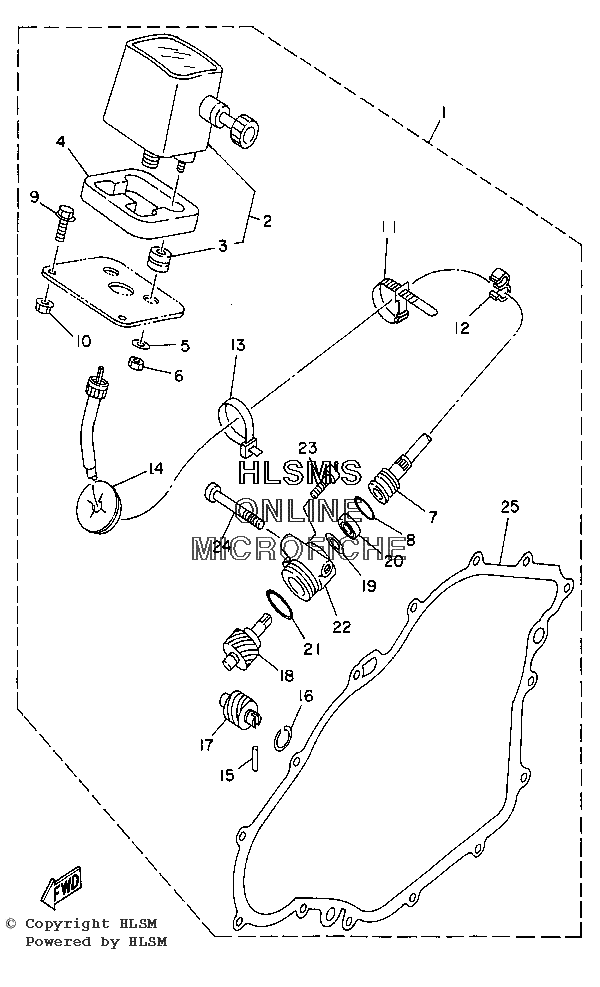

SPEEDOMETER - TACHOMETER для Yamaha WOLVERINE YFM35FXN (4KBM) - 2001 года выпуска`
-
№АртикулНазвание
-
14KB-W0081-00-00 SPEEDOMETER KIT (APSPEEDOMETER KIT (AP
-
24KB-83500-00-00 ...SPEEDOMETER ASSY...SPEEDOMETER ASSY
-
33GH-83523-00-00 ......DAMPER......DAMPER
-
43JN-83664-00-00 ...DAMPER...DAMPER
-
590201-05725-00 ...WASHER, PLATE...WASHER, PLATE
-
695307-05600-00 ...NUT...NUT
-
74KB-83550-00-00 ...SPEEDOMETER CABLE ASSY...SPEEDOMETER CABLE ASSY
-
893210-14104-00 ...O-RING...O-RING
-
995807-06016-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1095707-06500-00 ...NUT, FLANGE...NUT, FLANGE
-
11437-83936-11-00 ...BAND, SWITCH CORD...BAND, SWITCH CORD
-
1290468-15020-00 ...CLIP...CLIP
-
1390464-35132-00 ...CLAMP...CLAMP
-
1490480-25461-00 ...GROMMET...GROMMET
-
1593603-14179-00 ...PIN, DOWEL...PIN, DOWEL
-
1693440-14155-00 ...CIRCLIP...CIRCLIP
-
174KB-17831-00-00 ...GEAR, DRIVE...GEAR, DRIVE
-
184KB-17841-00-00 ...GEAR, DRIVEN...GEAR, DRIVEN
-
1990201-12163-00 ...WASHER, PLATE...WASHER, PLATE
-
2093102-08307-00 ...OIL SEAL...OIL SEAL
-
2193210-24253-00 ...O-RING...O-RING
-
224KB-17811-00-00 ...HOUSING, TACHOMETER GEAR...HOUSING, TACHOMETER GEAR
-
2398507-06016-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2498507-06030-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
254KB-15462-00-00 ...GASKET, CRANKCASE COVER 3...GASKET, CRANKCASE COVER 3
