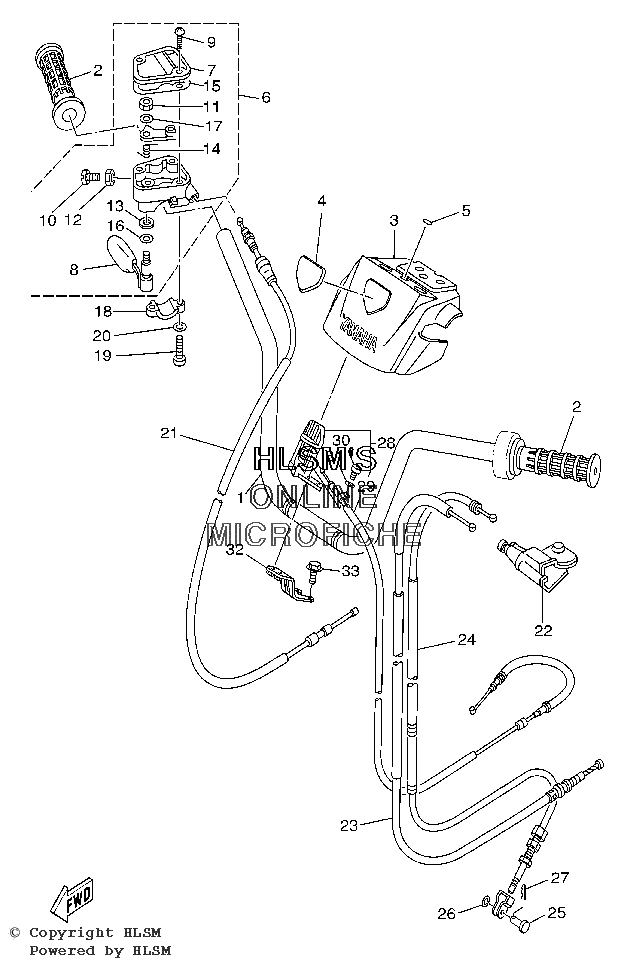

HANDLEBAR W/ THOTTLE - CABLE для Yamaha WOLVERINE YFM35FXN (4KBM) - 2001 года выпуска`
-
№АртикулНазвание
-
12HR-26111-00-00 HANDLEBARHANDLEBAR
-
23GB-26241-00-00 GRIP (LEFT)GRIP (LEFT)
-
35FE-26124-11-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
44KB-26232-10-00 EMBLEM 3DEMBLEM 3D
-
55GT-2836B-00-00 TUNING FORK MARKTUNING FORK MARK
-
64KB-26250-00-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
74KB-2628F-00-00 ...CAP, GEAR...CAP, GEAR
-
81NV-2625G-01-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
990149-04278-00 ...SCREW...SCREW
-
1098507-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1195607-05100-00 ...NUT, U...NUT, U
-
1295307-05700-00 ...NUT...NUT
-
1393104-09025-00 ...OIL SEAL...OIL SEAL
-
141NV-26304-00-00 ...SPRING...SPRING
-
154KB-2628G-00-00 ...GASKET...GASKET
-
161NV-26129-00-00 ...WASHER...WASHER
-
171NV-26398-00-00 ...WASHER...WASHER
-
184V4-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
1998507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2092907-05100-00 WASHER, SPRINGWASHER, SPRING
-
214KB-26311-11-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
221UY-2637A-01-00 COVER, HANDLE LEVER 2COVER, HANDLE LEVER 2
-
234KB-26341-00-00 CABLE, BRAKECABLE, BRAKE
-
244KB-26351-00-00 CABLE, BRAKECABLE, BRAKE
-
2590240-06076-00 PIN, CLEVISPIN, CLEVIS
-
2690201-06042-00 WASHER, PLATEWASHER, PLATE
-
2791401-20012-00 PIN, COTTERPIN, COTTER
-
284KB-26150-01-00 REVLEVER ASSYREVLEVER ASSY
-
294KB-2637E-02-00 ...CABLE, CONTROL 1...CABLE, CONTROL 1
-
3098507-05018-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3192907-05600-00 WASHER, PLATEWASHER, PLATE
-
324KB-2612E-00-00 BRACKETBRACKET
-
3395807-06012-00 BOLT, FLANGEBOLT, FLANGE
