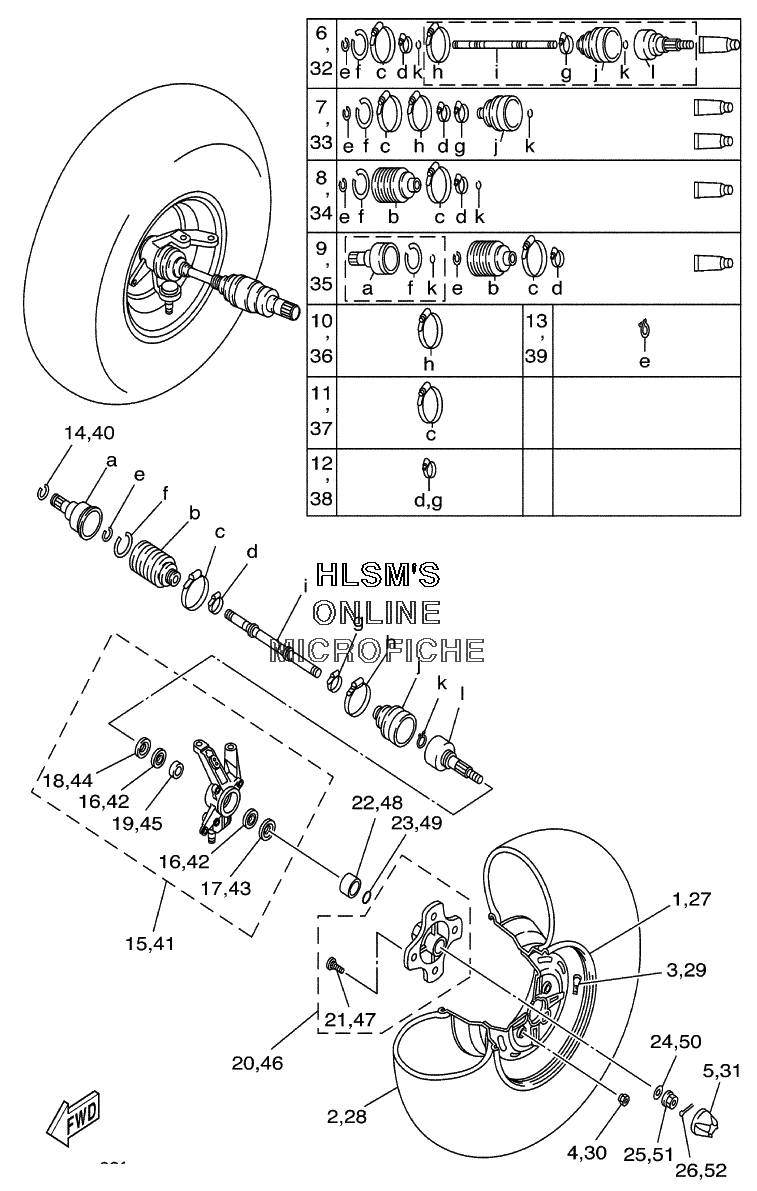

WHEEL - FRONT W/ CV JOINTS для Yamaha BIG BEAR 4WD YFM400FWNN (5FU6) - 2001 года выпуска`
-
№АртикулНазвание
-
15FU-F5180-00-00 WHEEL COMP (SILVER) (USED ON MODEL 5FU6)WHEEL COMP (SILVER) (USED ON MODEL 5FU6)
-
15FU-F5180-10-00 WHEEL COMP (BLACK) (USED ON MODEL 5FU9) (REAL TREE X-TRA)WHEEL COMP (BLACK) (USED ON MODEL 5FU9) (REAL TREE X-TRA)
-
294108-128Y4-00 TIRE (AT25 X 8-12)TIRE (AT25 X 8-12)
-
393900-00812-00 VALVE, RIMVALVE, RIM
-
490179-10540-00 NUTNUT
-
55GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
64KB-2510F-00-00 ...LEVER, SEAT...LEVER, SEAT
-
74KB-2510G-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
84KB-2510H-00-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
94KB-2510J-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
103HN-2511G-01-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
114KB-2511H-00-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
123HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
132HR-2512J-00-00 SNAP RINGSNAP RING
-
144KB-2512H-00-00 CIRCLIPCIRCLIP
-
155FU-F3501-00-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
1693306-006Y0-00 ...BEARING...BEARING
-
1793106-38046-00 ...OIL SEAL...OIL SEAL
-
1893106-38047-00 ...OIL SEAL...OIL SEAL
-
1990560-30325-00 ...SPACER...SPACER
-
204KB-25111-02-00 HUB, FRONTHUB, FRONT
-
2190114-10010-00 ...BOLT, SERRATION...BOLT, SERRATION
-
2290387-281V8-00 COLLARCOLLAR
-
2393210-26606-00 O-RINGO-RING
-
2490201-168R1-00 WASHER, PLATEWASHER, PLATE
-
2590171-16048-00 NUT, CASTLENUT, CASTLE
-
2691401-30030-00 PIN, COTTERPIN, COTTER
-
275FU-F5180-00-00 WHEEL COMPWHEEL COMP
-
2894108-128Y4-00 TIRE (AT25 X 8-12)TIRE (AT25 X 8-12)
-
2993900-00812-00 VALVE, RIMVALVE, RIM
-
3090179-10540-00 NUTNUT
-
315GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
324KB-2510F-00-00 BALL JOINT SETBALL JOINT SET
-
334KB-2510G-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
344KB-2510H-00-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
354KB-2510J-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
363HN-2511G-01-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
374KB-2511H-00-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
383HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
392HR-2512J-00-00 SNAP RINGSNAP RING
-
404KB-2512H-00-00 CIRCLIPCIRCLIP
-
415FU-F3502-00-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
4293306-006Y0-00 ...BEARING...BEARING
-
4393106-38046-00 ...OIL SEAL...OIL SEAL
-
4493106-38047-00 ...OIL SEAL...OIL SEAL
-
4590560-30325-00 ...SPACER...SPACER
-
464KB-25111-02-00 HUB, FRONTHUB, FRONT
-
4790114-10010-00 ...BOLT, SERRATION...BOLT, SERRATION
-
4890387-281V8-00 COLLARCOLLAR
-
4993210-26606-00 O-RINGO-RING
-
5090201-168R1-00 WASHER, PLATEWASHER, PLATE
-
5190171-16048-00 NUT, CASTLENUT, CASTLE
-
5291401-30030-00 PIN, COTTERPIN, COTTER
